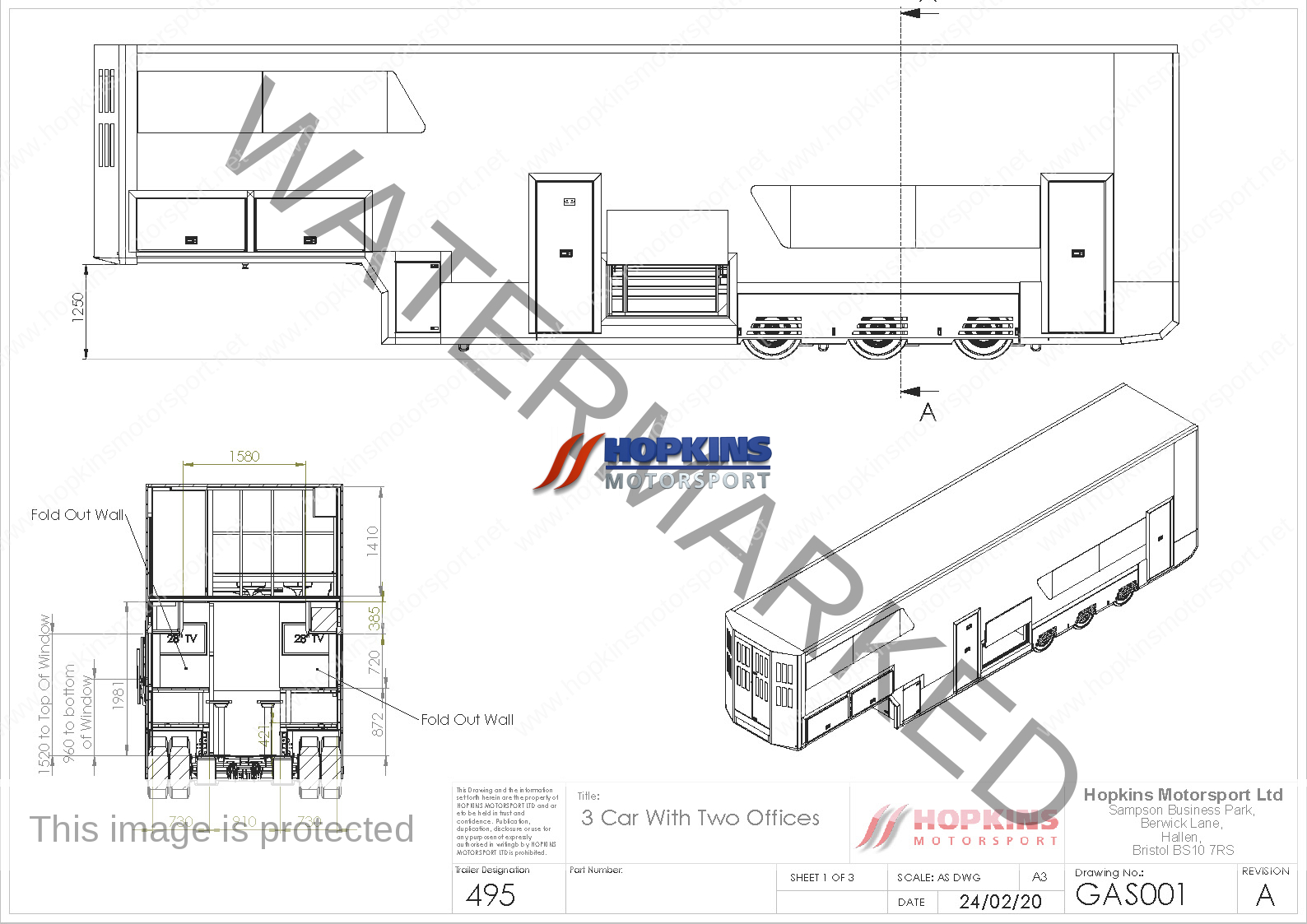

Length: 9,800     Height: 1410mm               2 car capacity, front and rear hatch’s.  Multi point wall and floor tracking

Yes: fitted with all standard HMS luxuries.

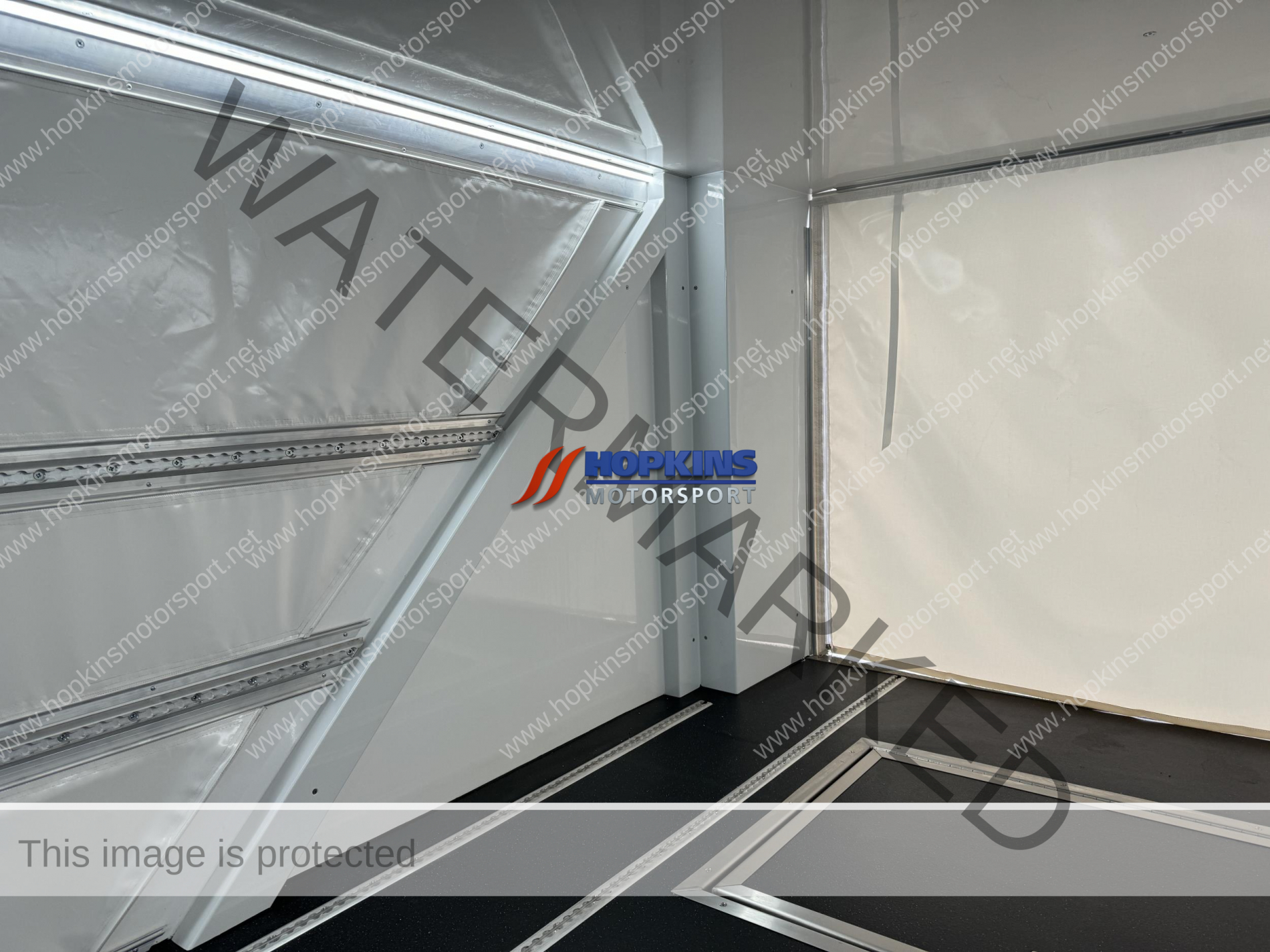

Tail Lift:                Dhollandia 2500kg.

Generator:         9kw silent diesel.

Satellite;              Yes.

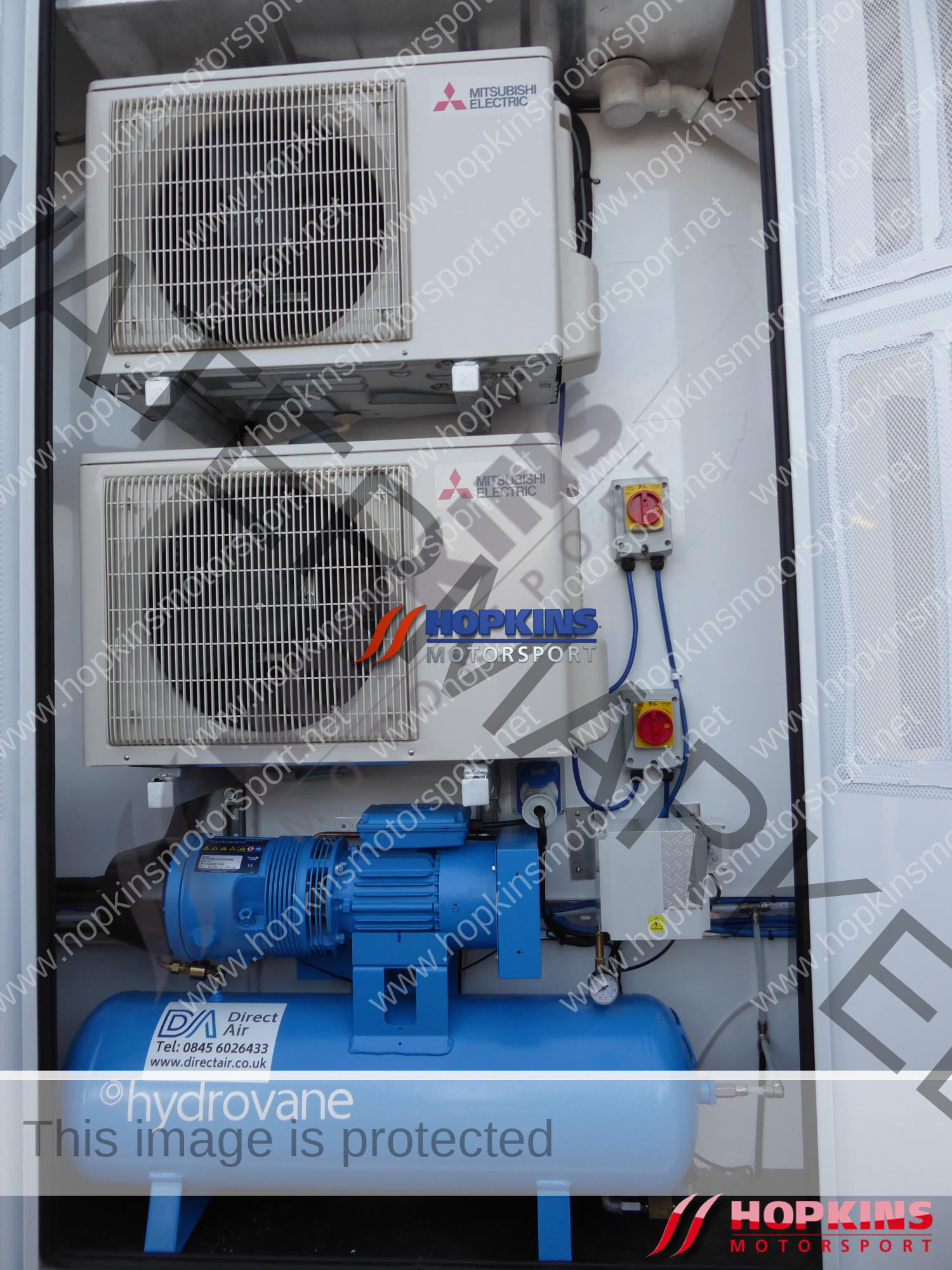

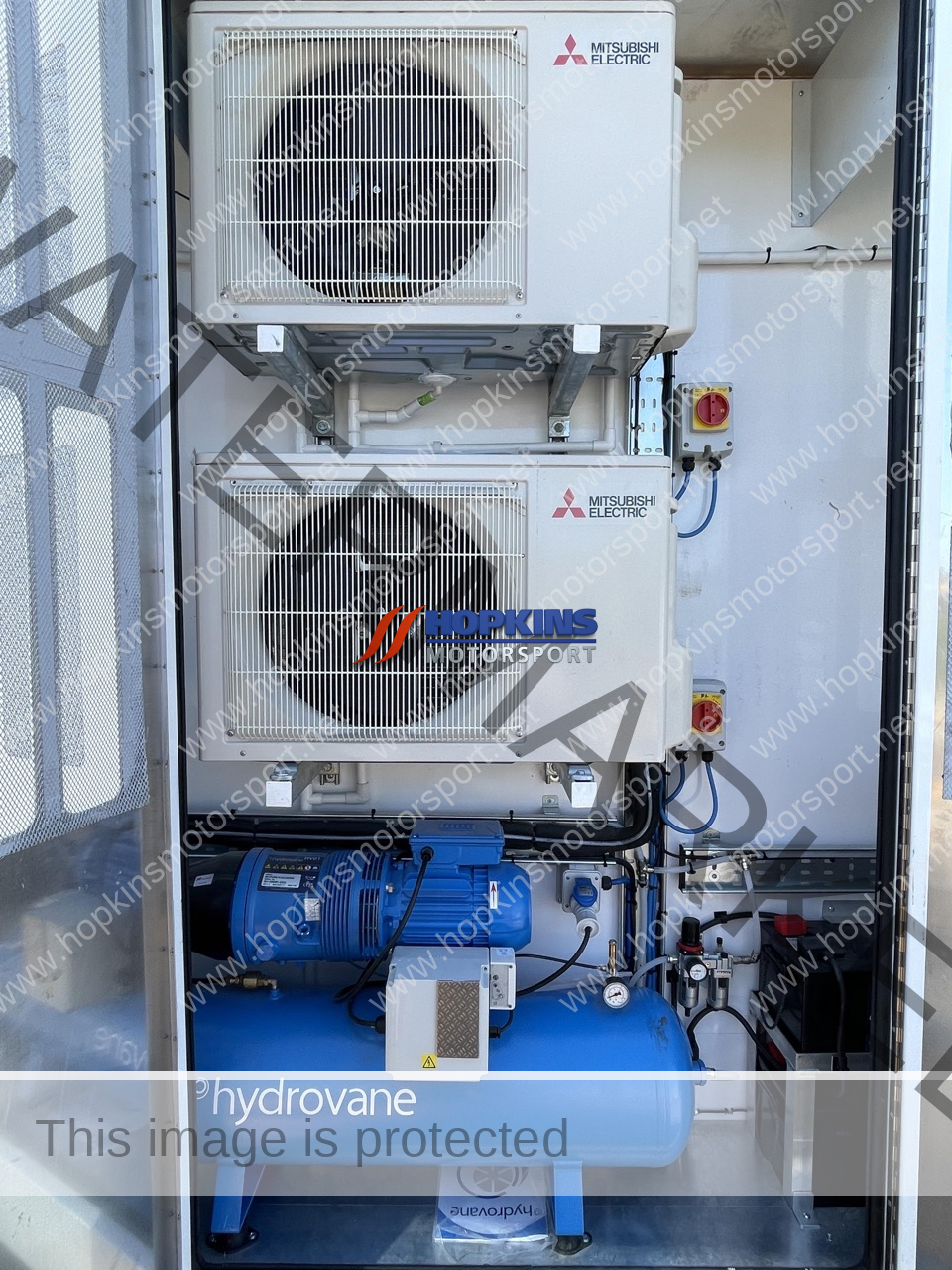

Compressor:      Hydrovane.

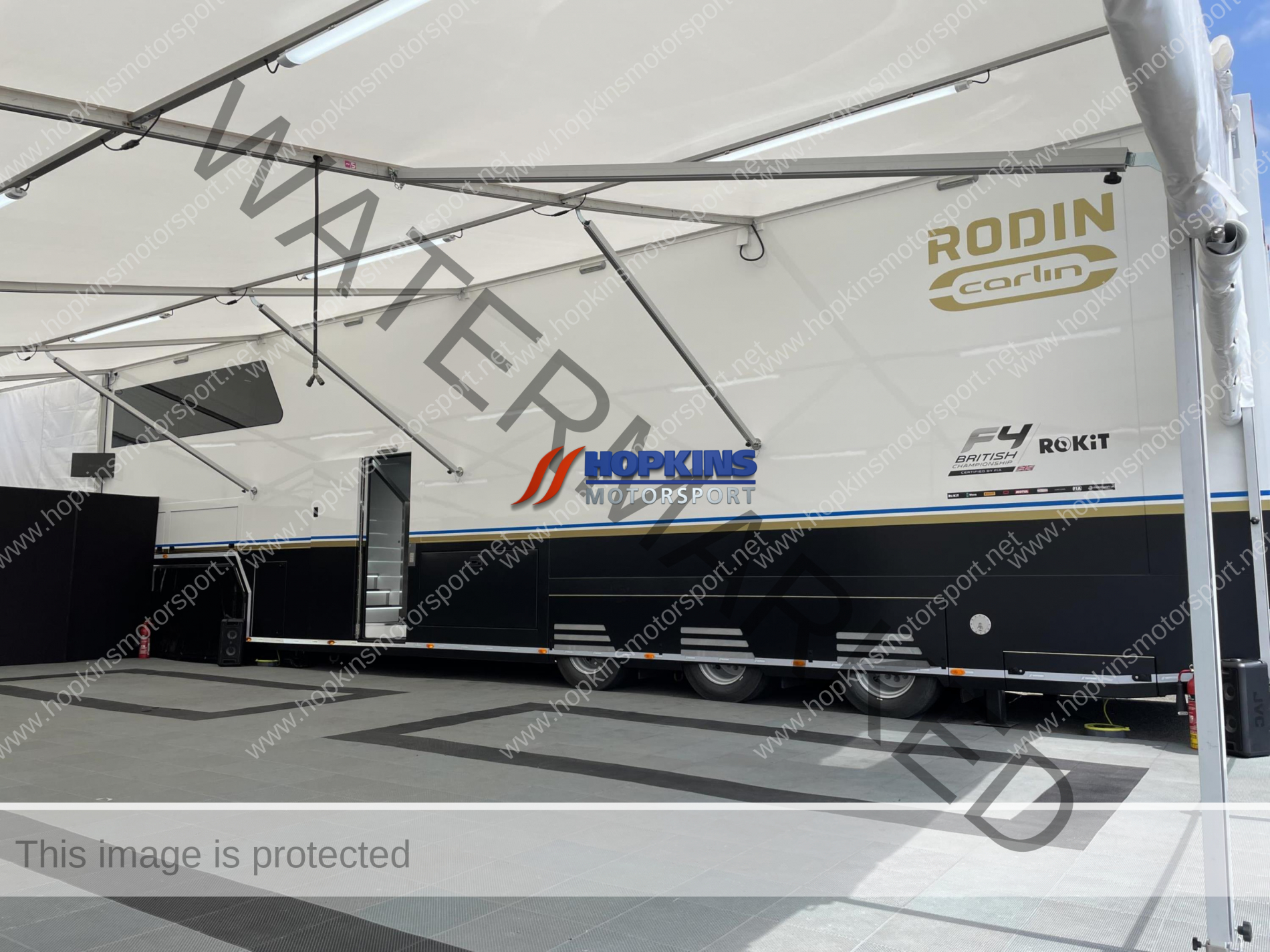

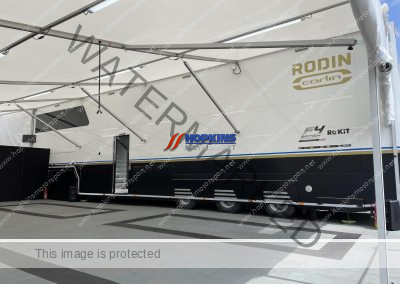

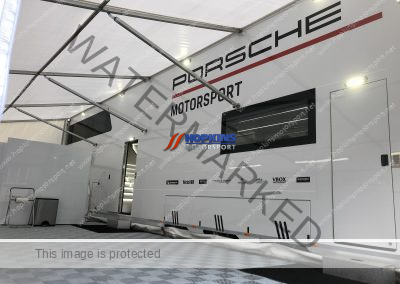

Awning:               13.5mtr x 8mtr awning Co.

1 Formula car carrying capacity, rear access door and front access door, fitted overhead and storage units, console area for engineers.

Height 1385mm. length. 10.5mtr when extended.

Yes

Tail Lift:                Dhollandia 2500kg.

Generator:         9kw silent diesel.

Satellite;              Yes.

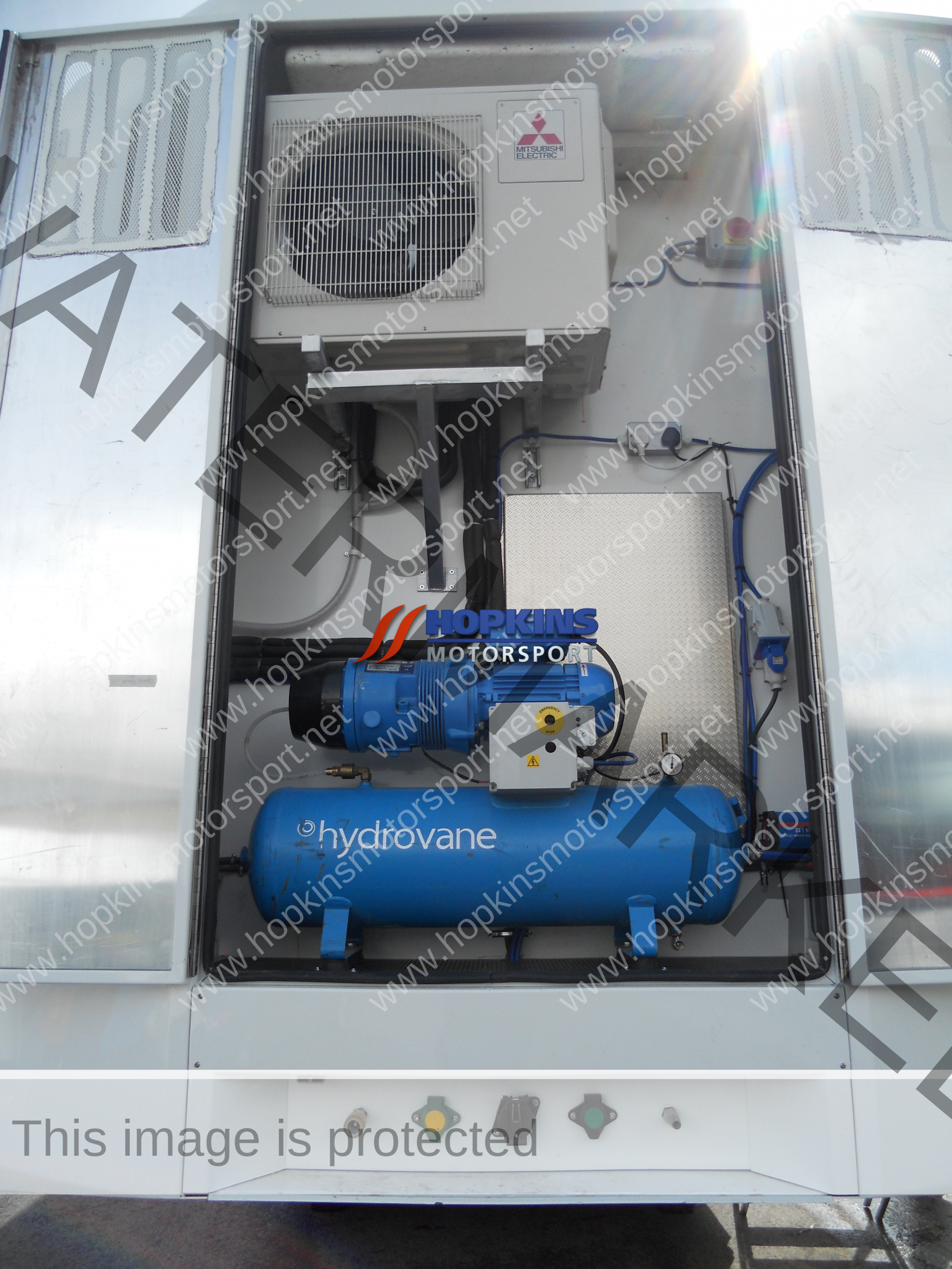

Compressor:      Hydrovane.

Awning:               13.5mtr x 8mtr awning Co.

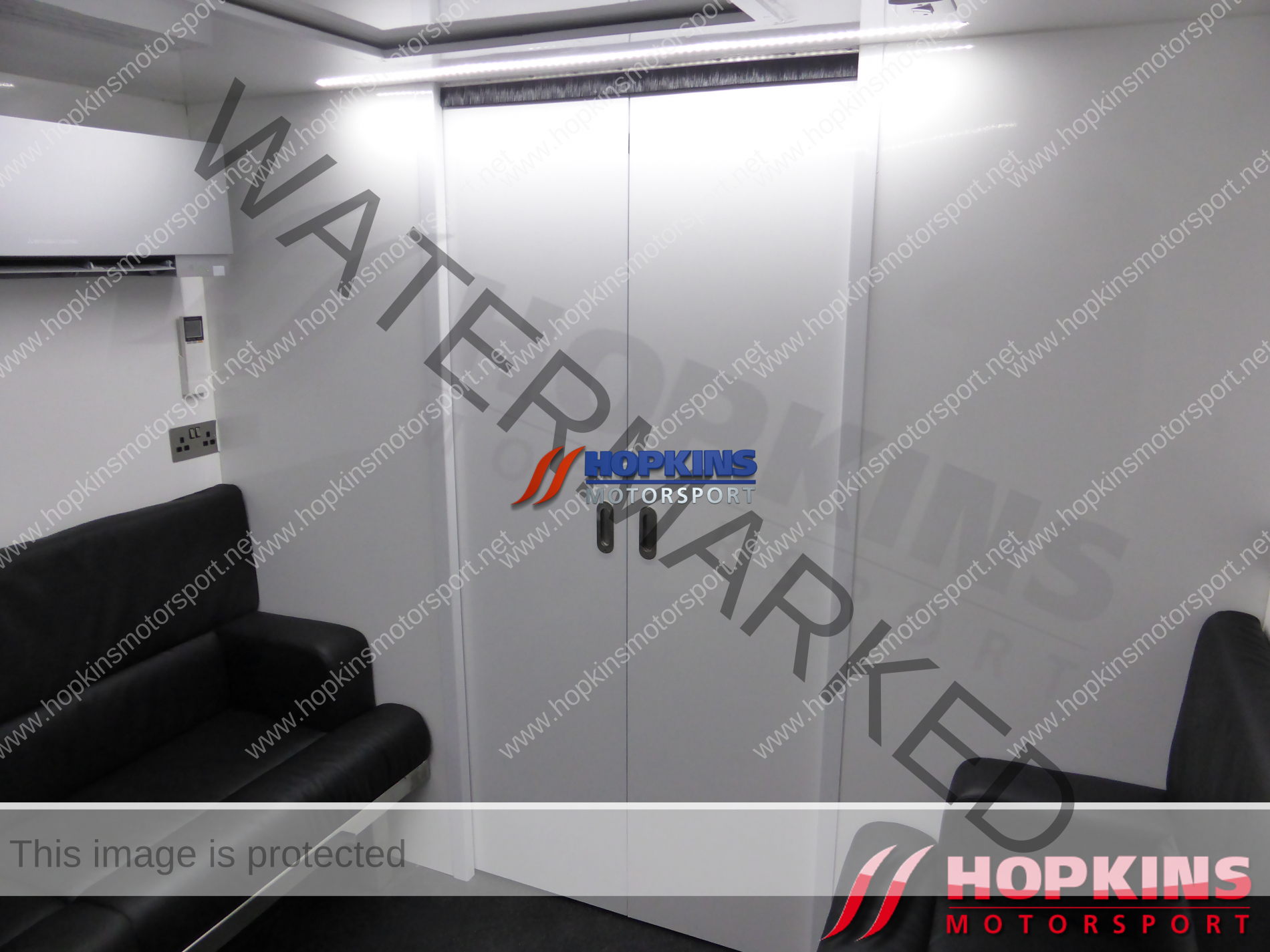

Partition:                     Fixed partition with 2 sliding doors.

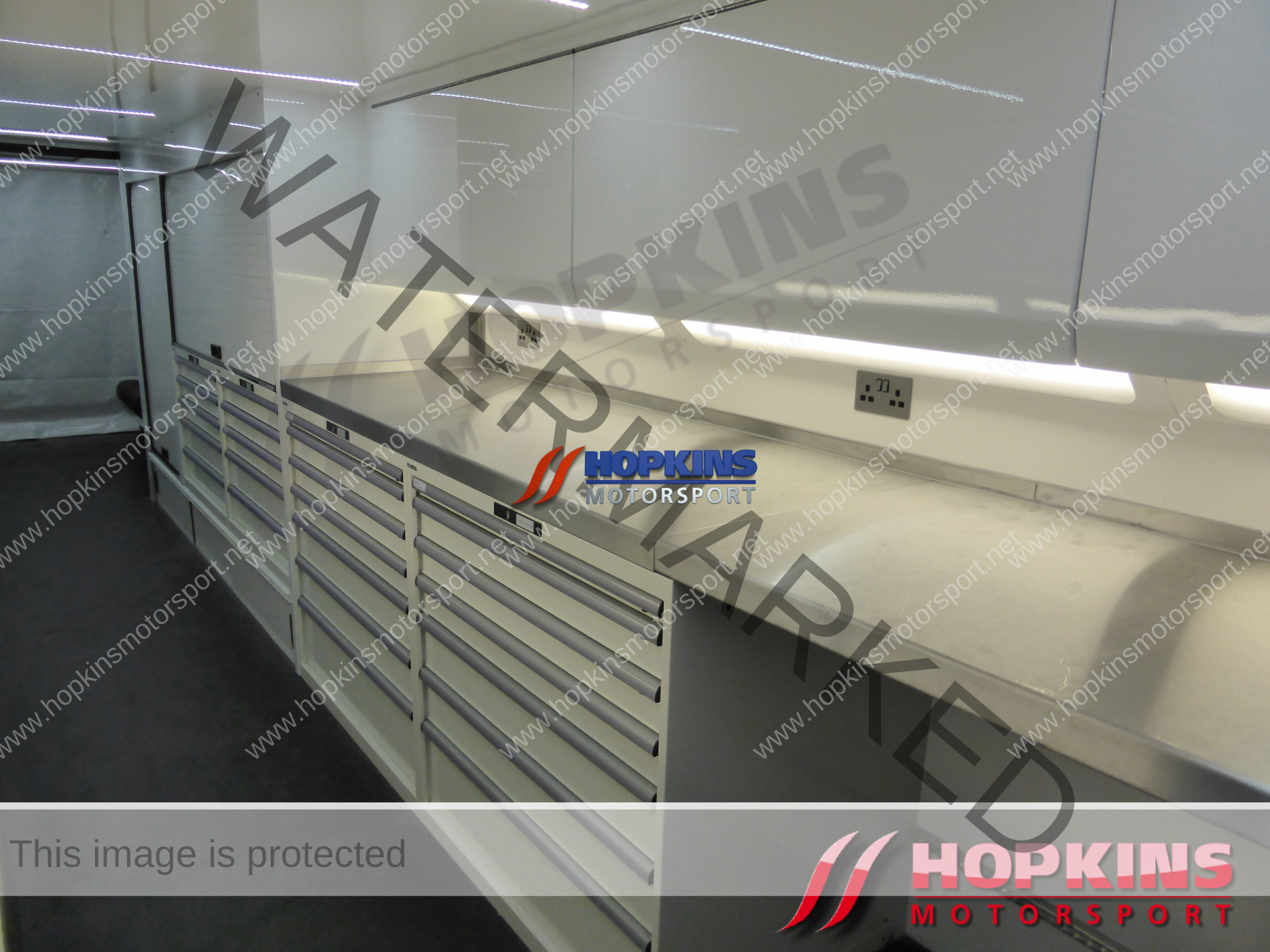

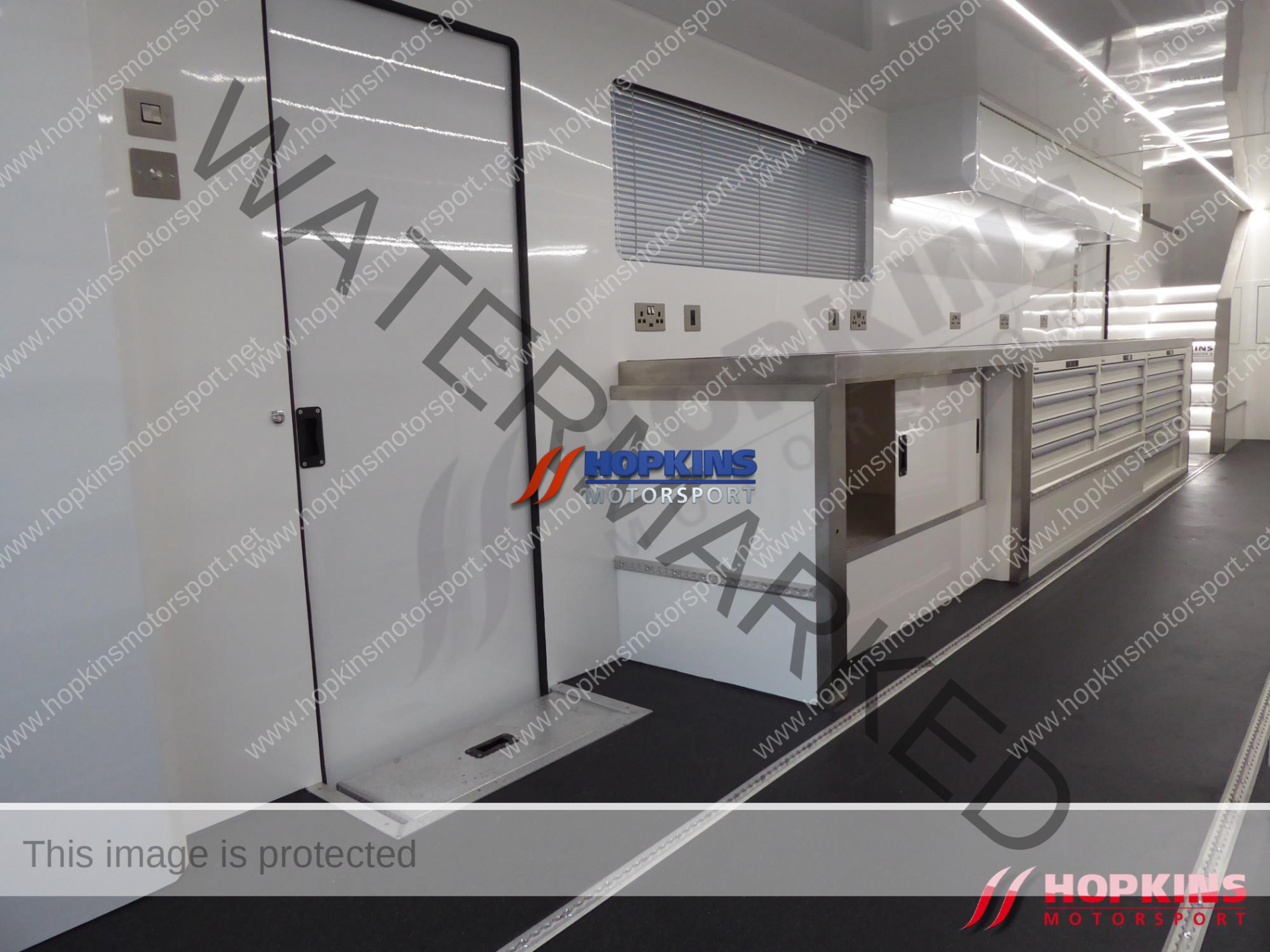

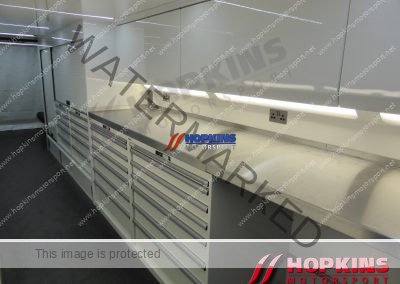

Wheel Arch’s:             1x cabinet’s length 850mm x 700mm with a 1450mm high roller shutter door above the wheel arch’s  followed by 2x fixed lista draw cabinet’s length 850mm x 700mm with a 850mm high roller shutter door above.

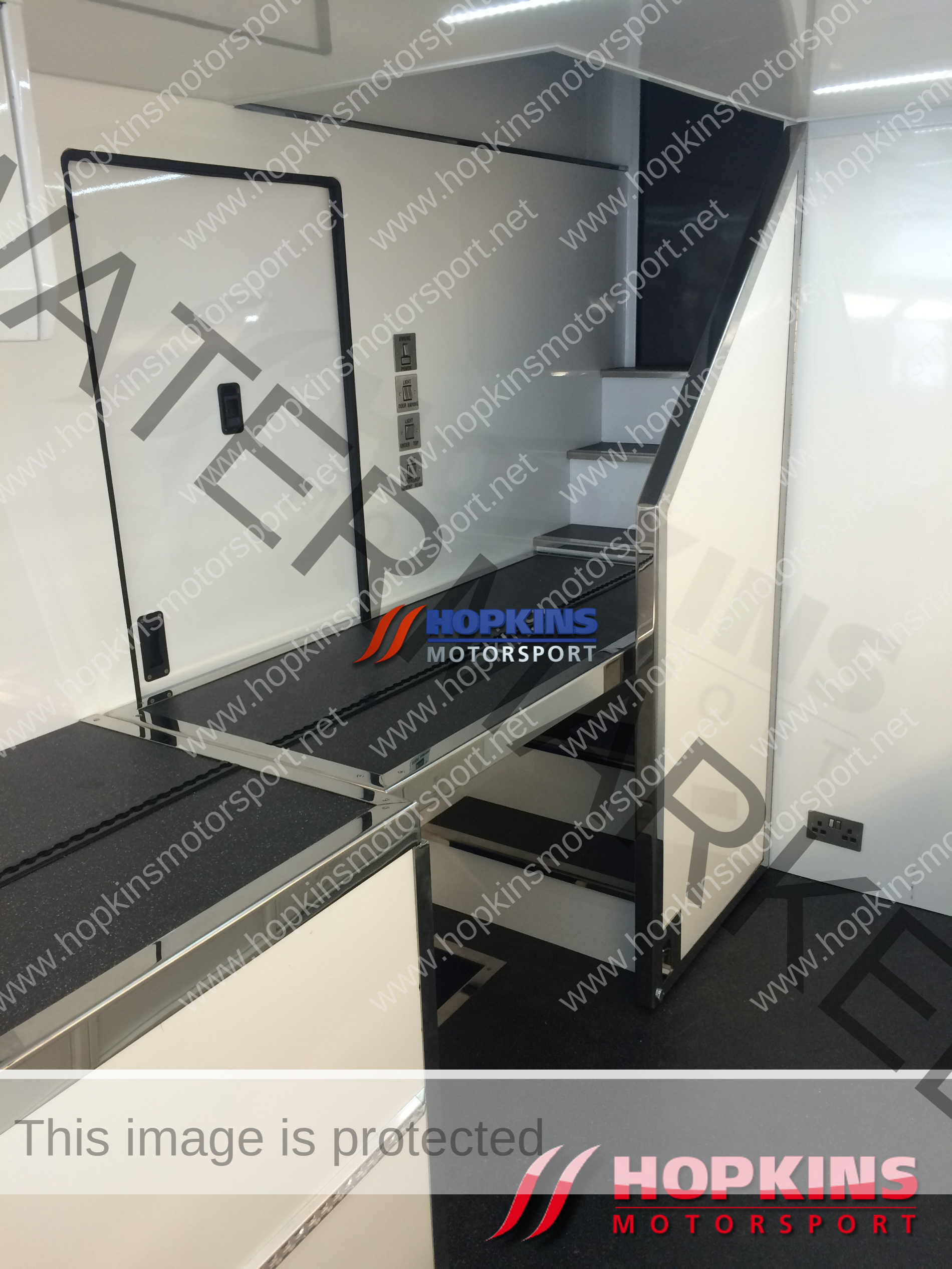

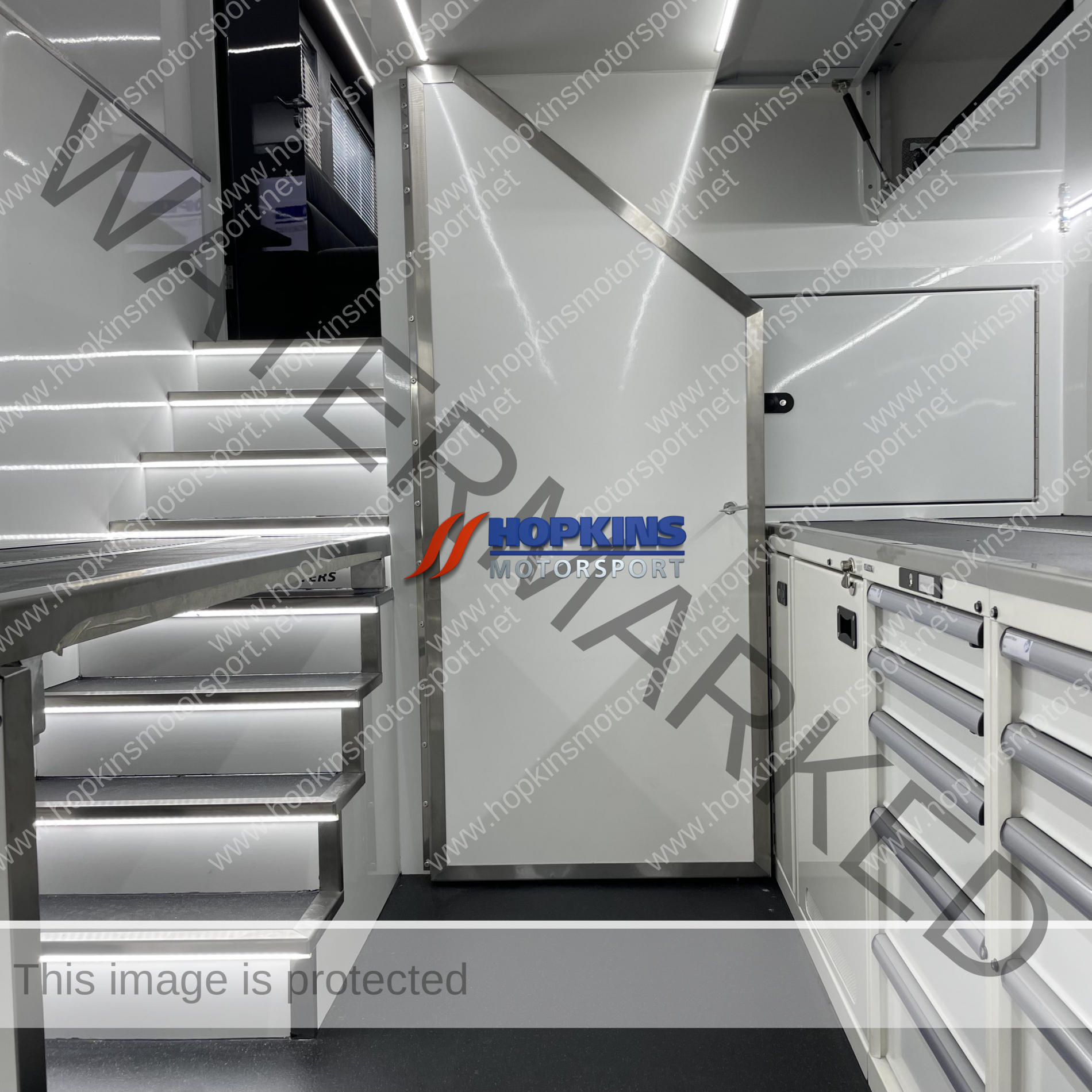

Off Side:                     In front of the wheel arch is an external storage locker, inside the transporter will be finished with a high gloss white panel fitted with an anti rub rail length approx 2150mm. after the bench HMS side door with internal step followed by steps to data area.

Near Side:                   In front of the wheel arch’s. 2x lista cabinet’s height 1000mm x length 1023mm each.

Open space below bench supplied with 2x portable lista cabinet’s height 1000mm x length 1023mm each.

Front:                          Integrated fridge with overhead lockers above.

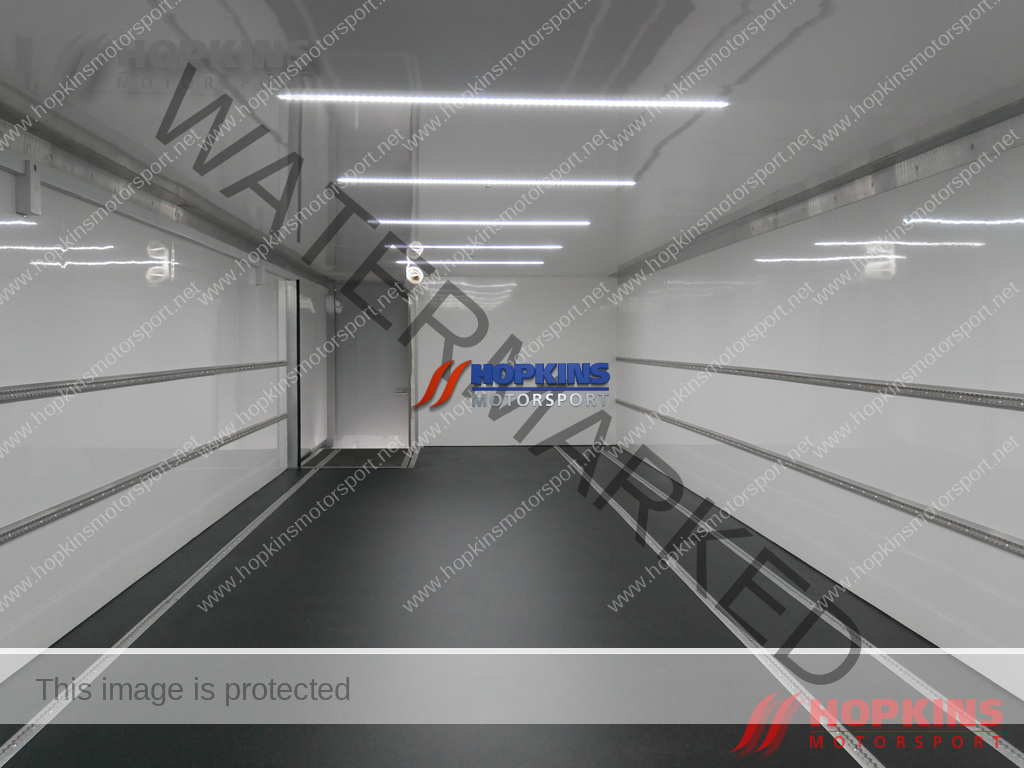

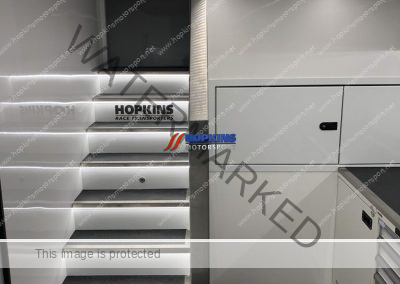

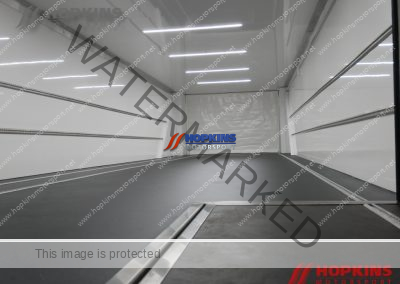

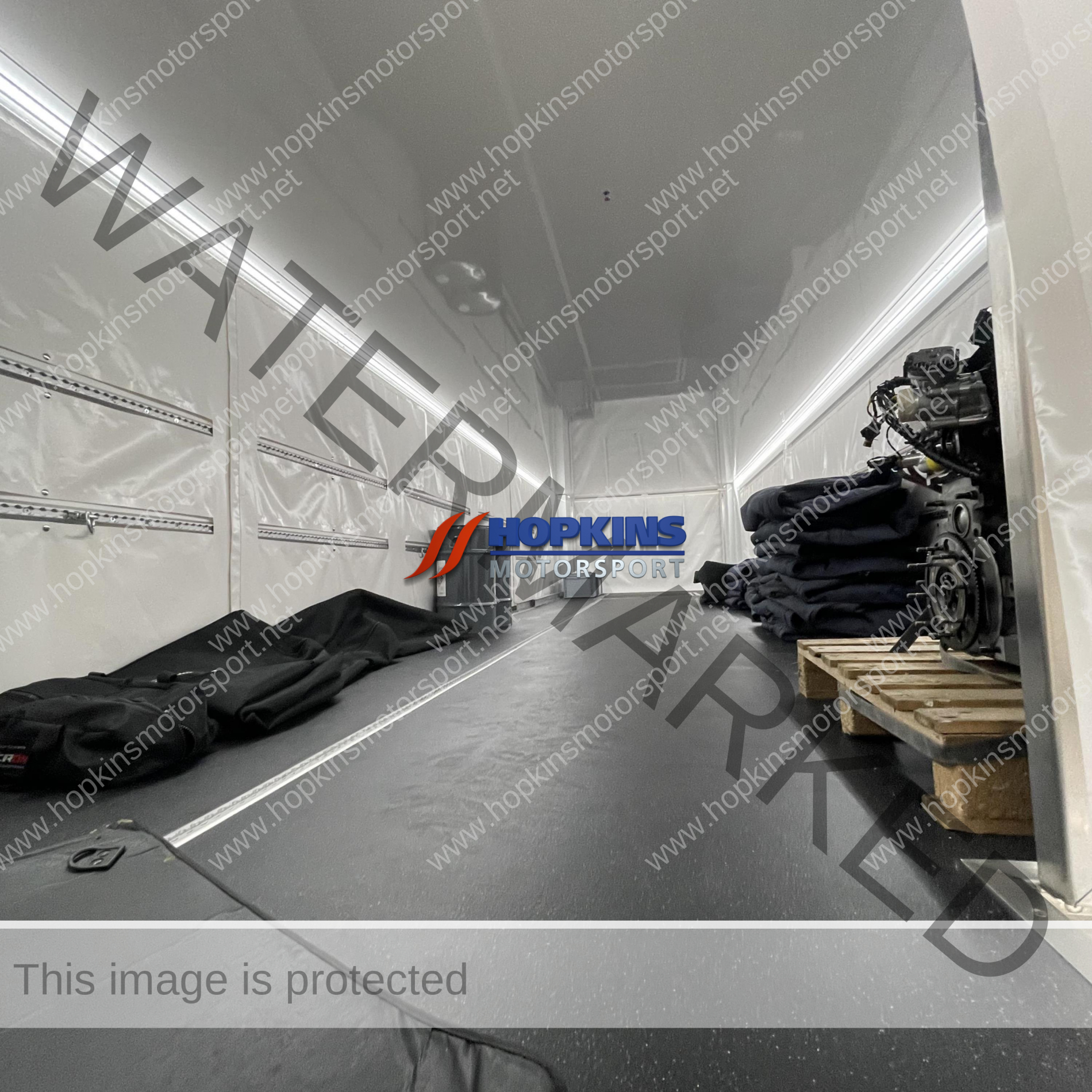

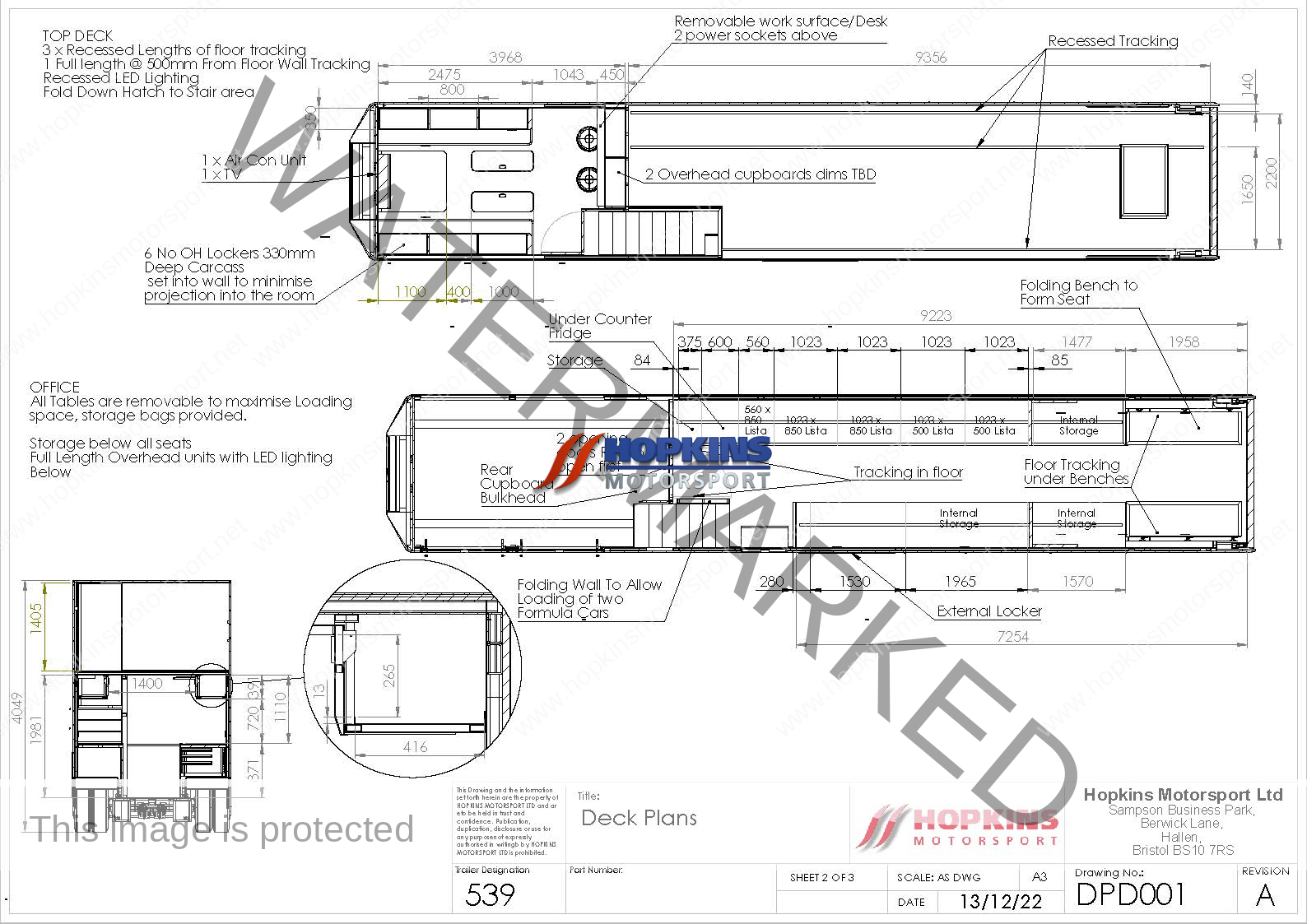

Top Deck

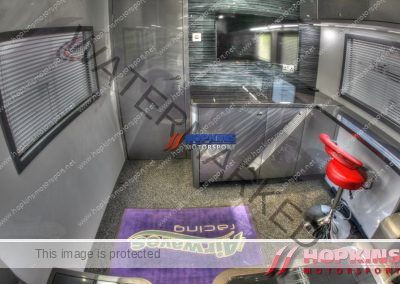

Walls and the ceiling:High gloss white.

Protection:                  1 x full length of anti rub rail on each wall.

Floor tracking:            3x lengths of tracking surface mounted to the floor.

Floor Finish:               Black non slip rubber

Lighting:                     1000mm Led strip recessed into the ceiling at 1100mm centres.

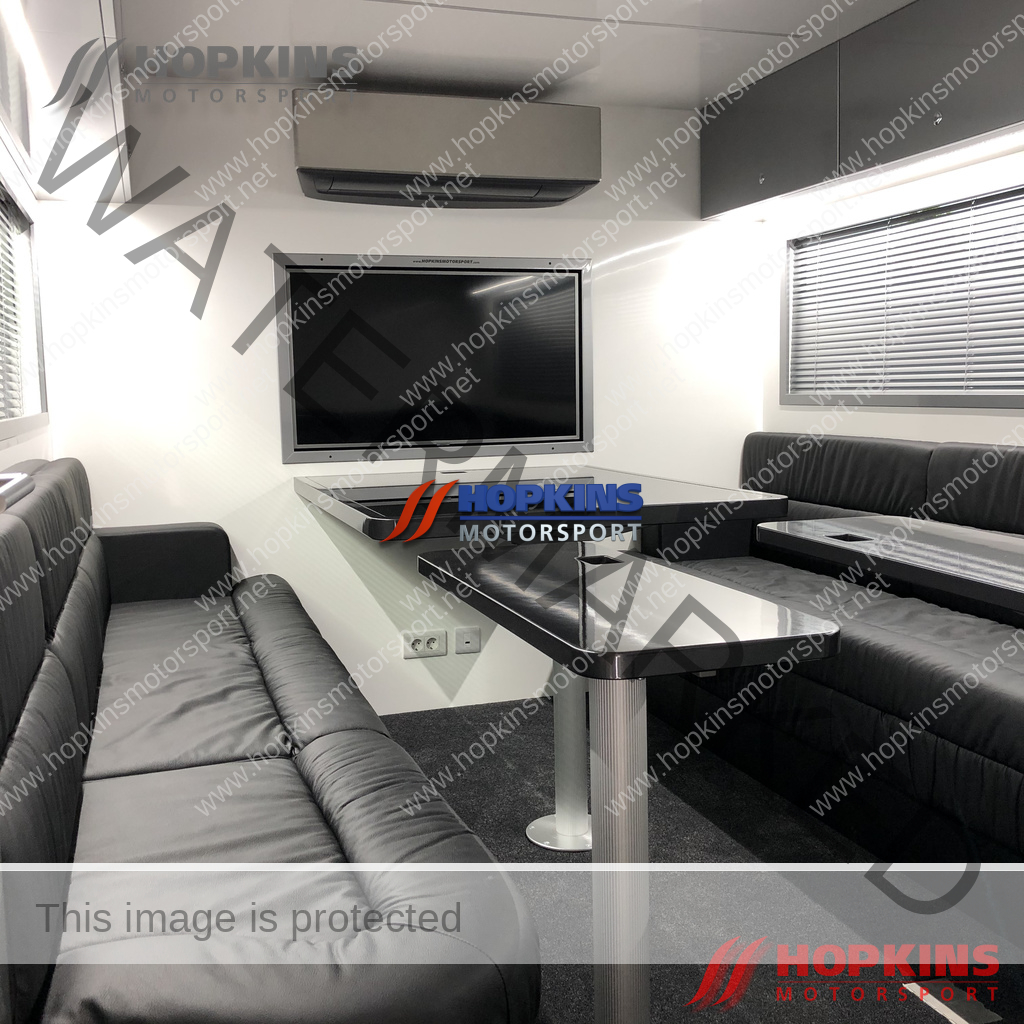

Side Walls:                 White.

Front & Rear:              Colour as required

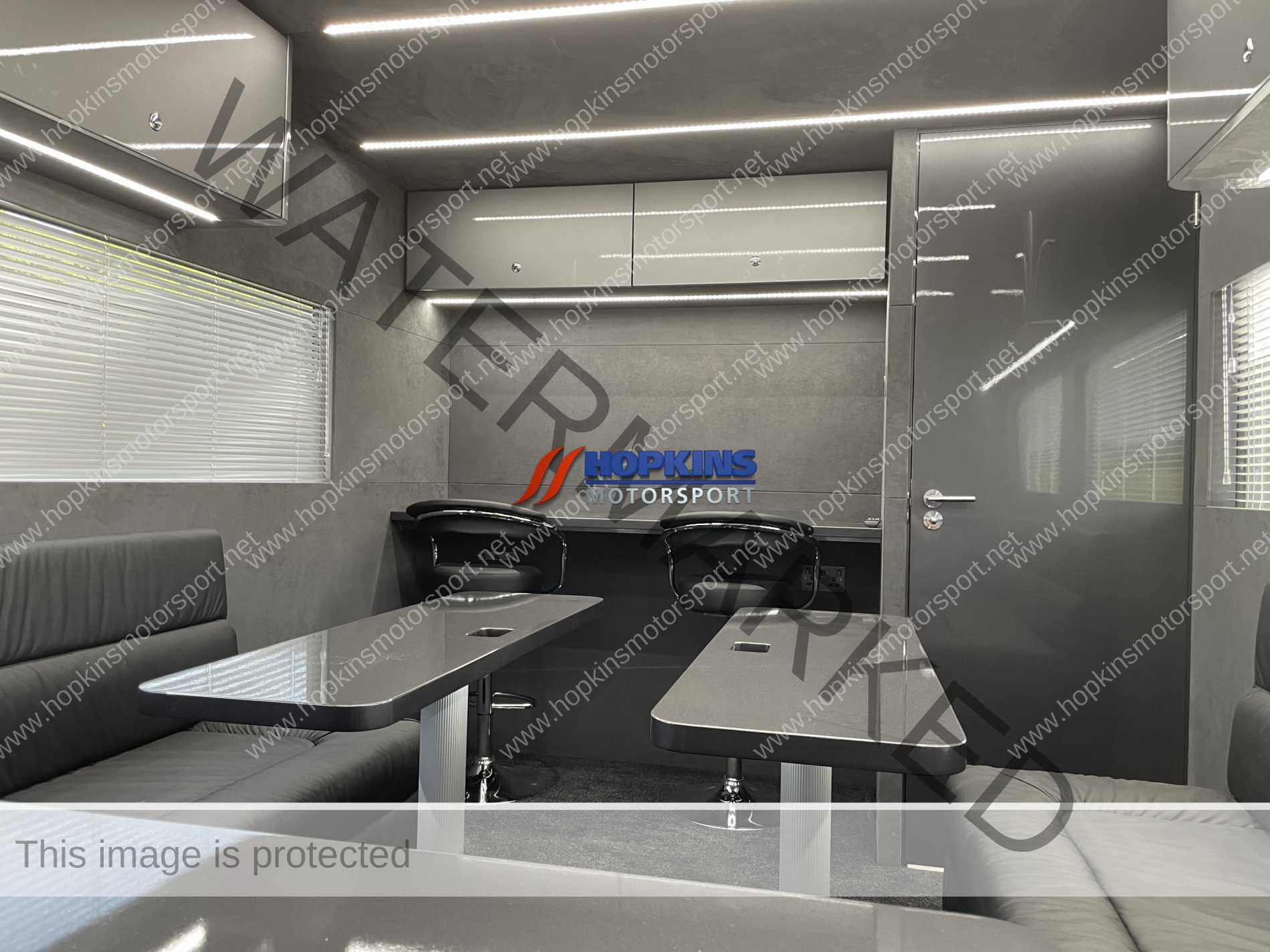

Windows:                    2 windows per side   Blinds recessed into the walls

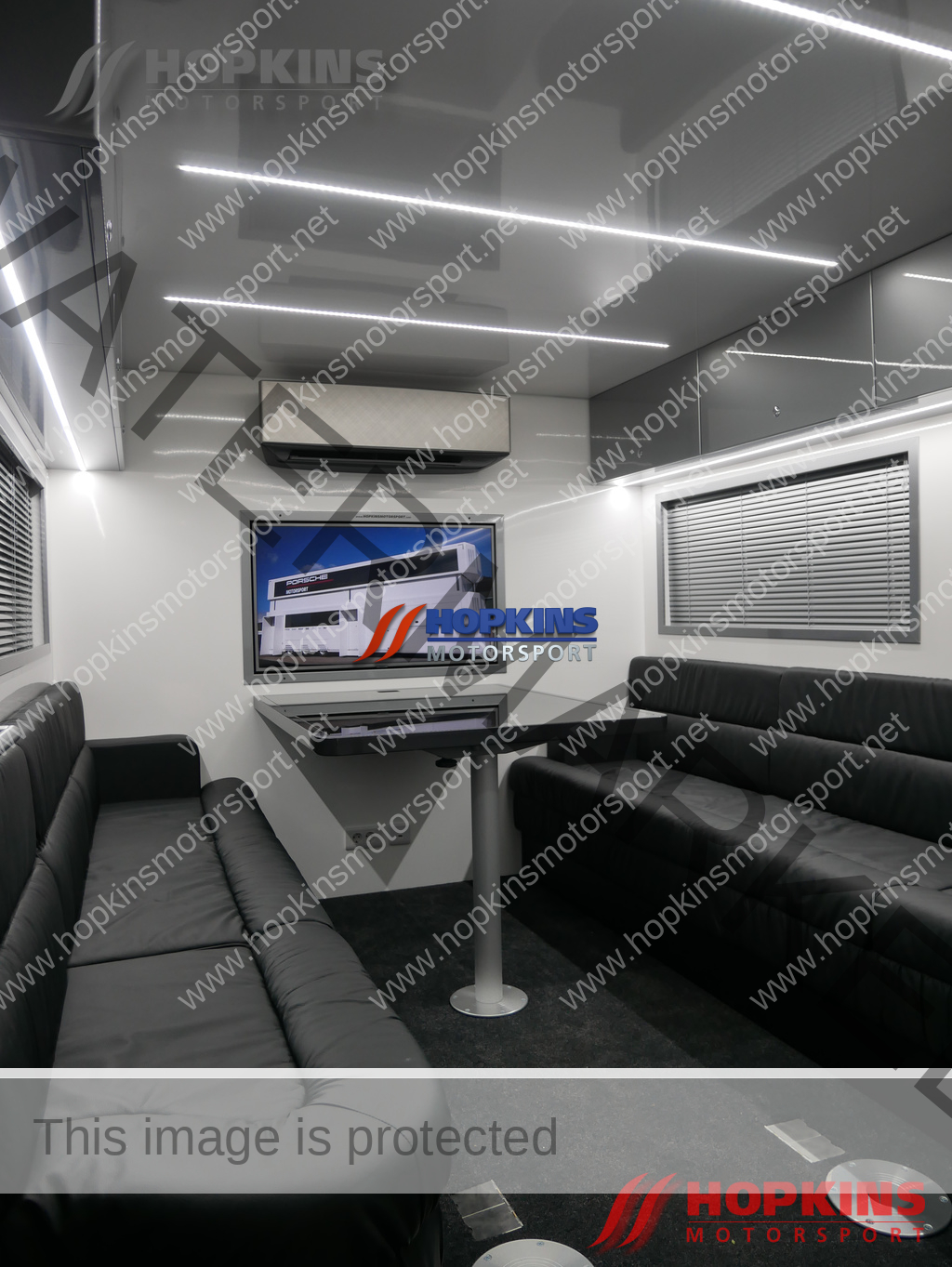

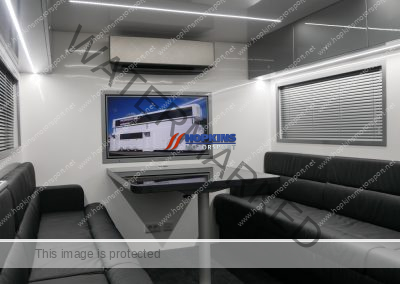

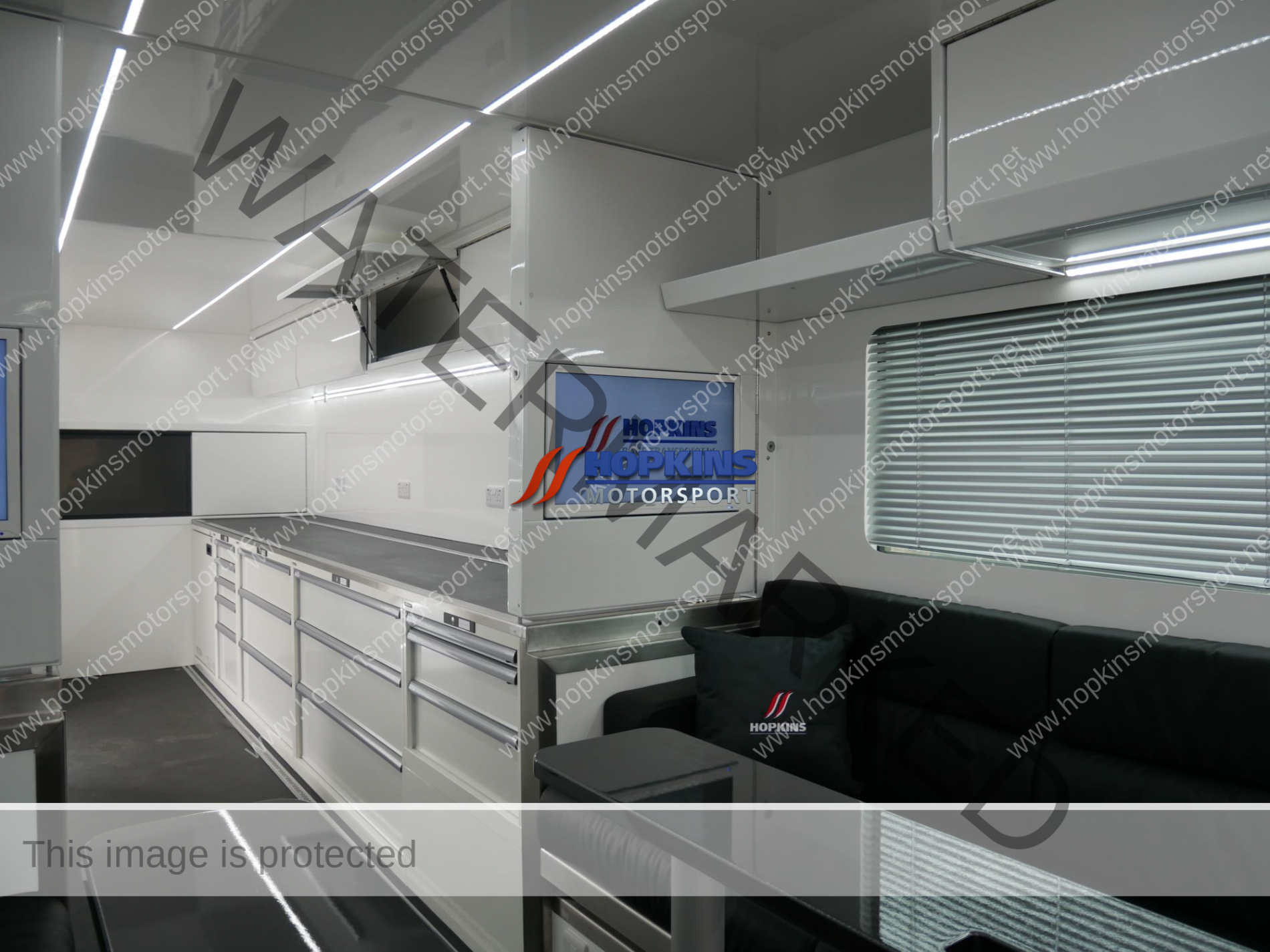

Seating:                       Bench seating finished in Grey leather.

Seat bases:                  Foam backed grey leatherette.

Table:                          2mall removable management table

2^ndtable:                     Engineers table that fold to increase the floor space.

Ceiling:                       Chrome slotted panelling.

Floor finish:                Black carpet.

Overhead units:           Overhead units in metallic Belarus with recessed Led lighting set into the bases of the units.

Base units:                  Metallic Belarus base units on the bulkhead wall, 1 x integrated fridge

Work tops:                  Colour McLaren Graphite worktops & table top with power points to suit.

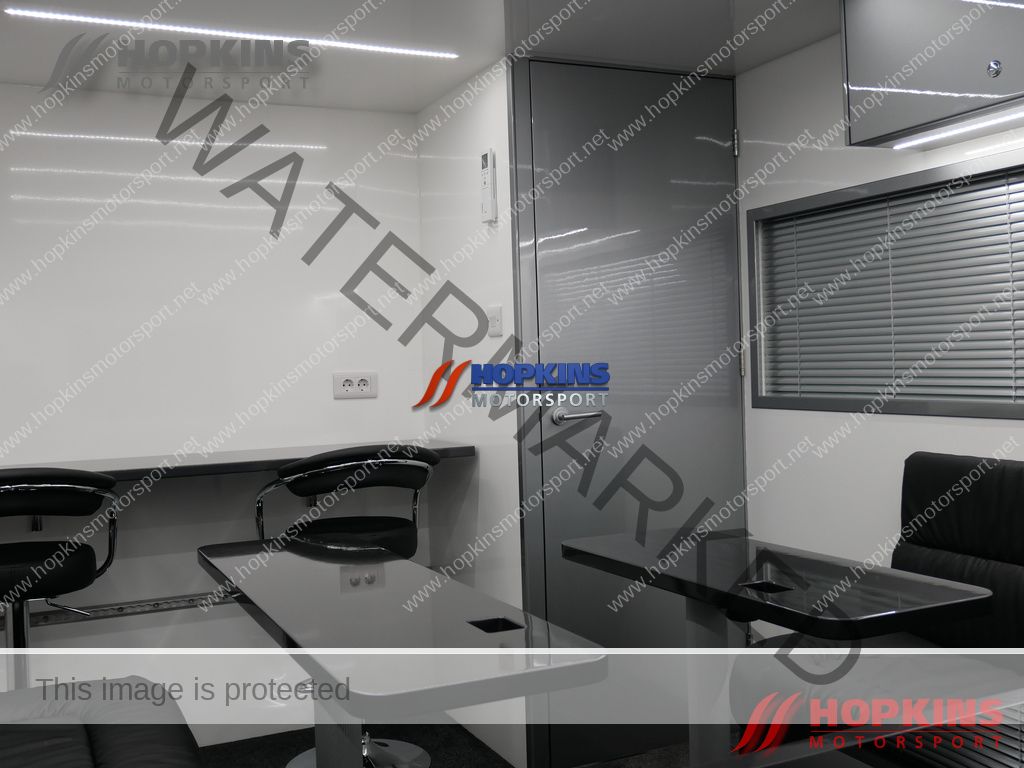

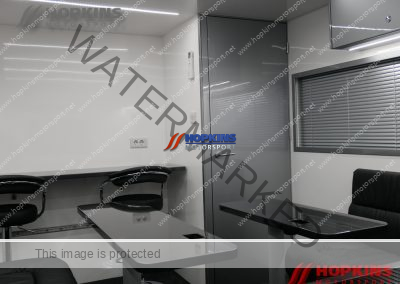

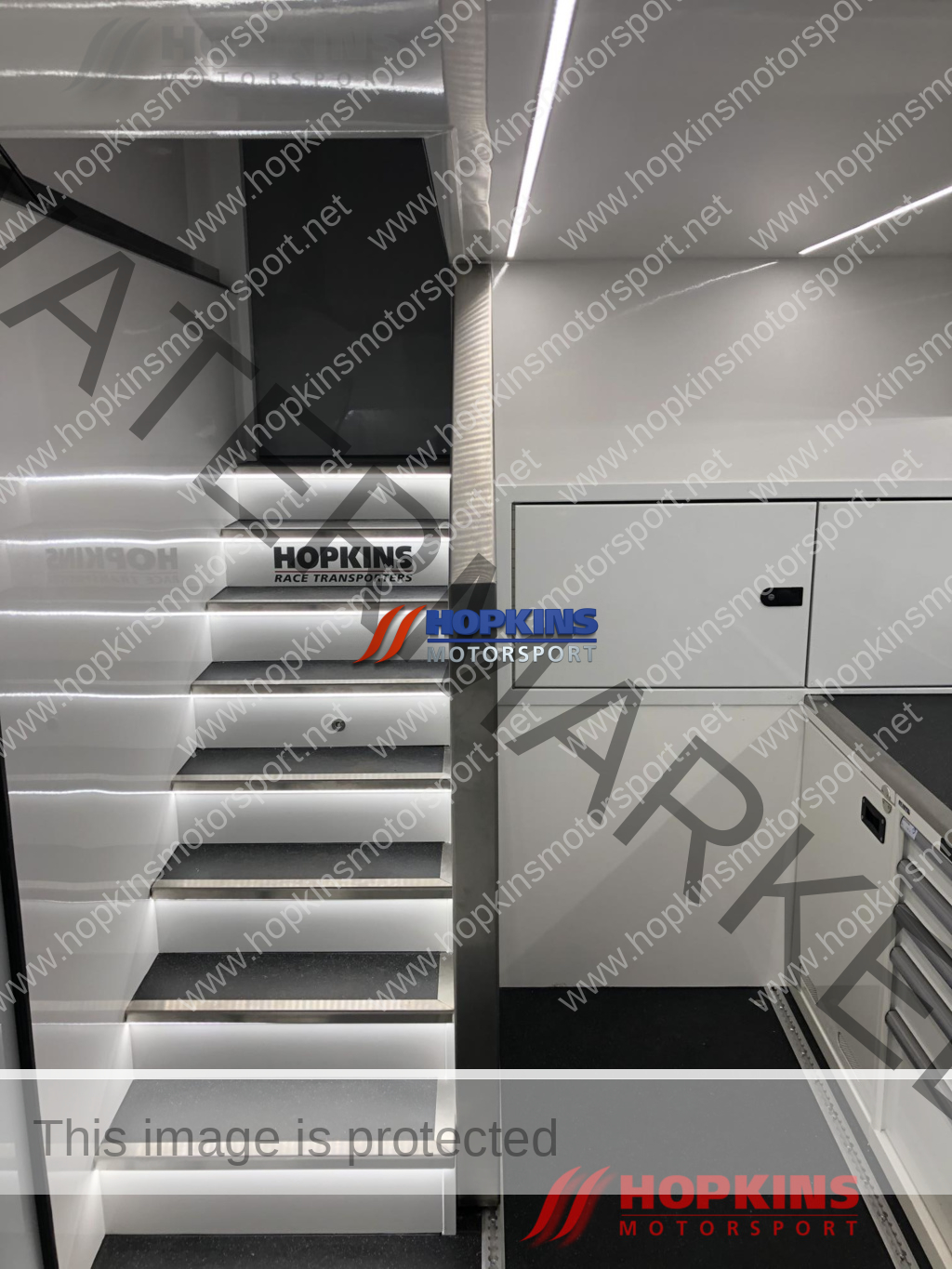

Access:                        Hinged door between the office & steps, finished in gloss white.

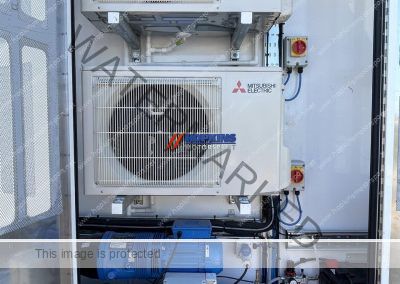

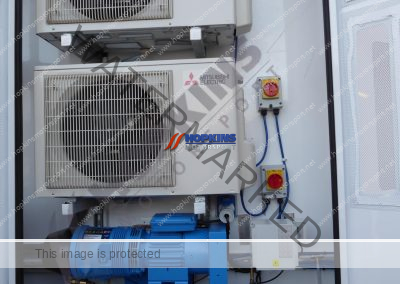

Air conditioning:        Mitsubishi Hot & cold

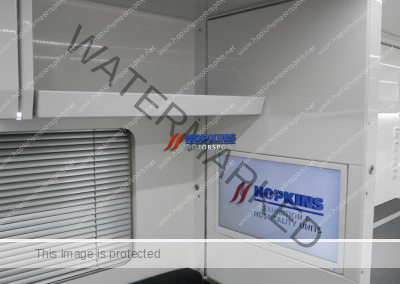

Television:                  Mounted above units on rear wall.

Satellite:                      Self seeking recessed into office ceiling.

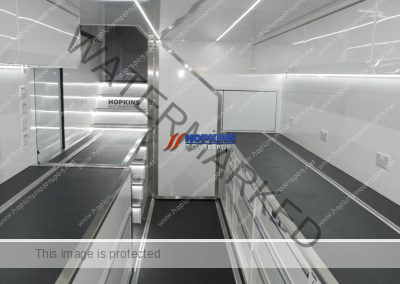

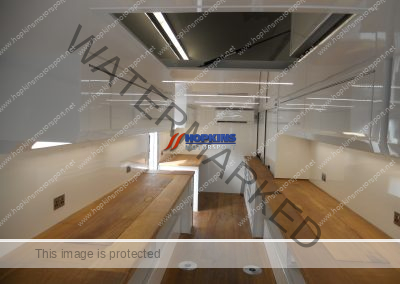

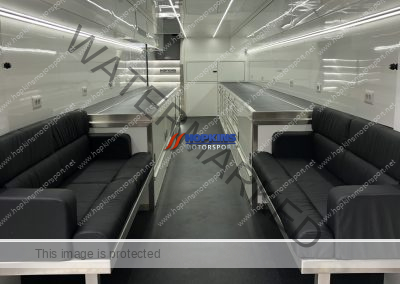

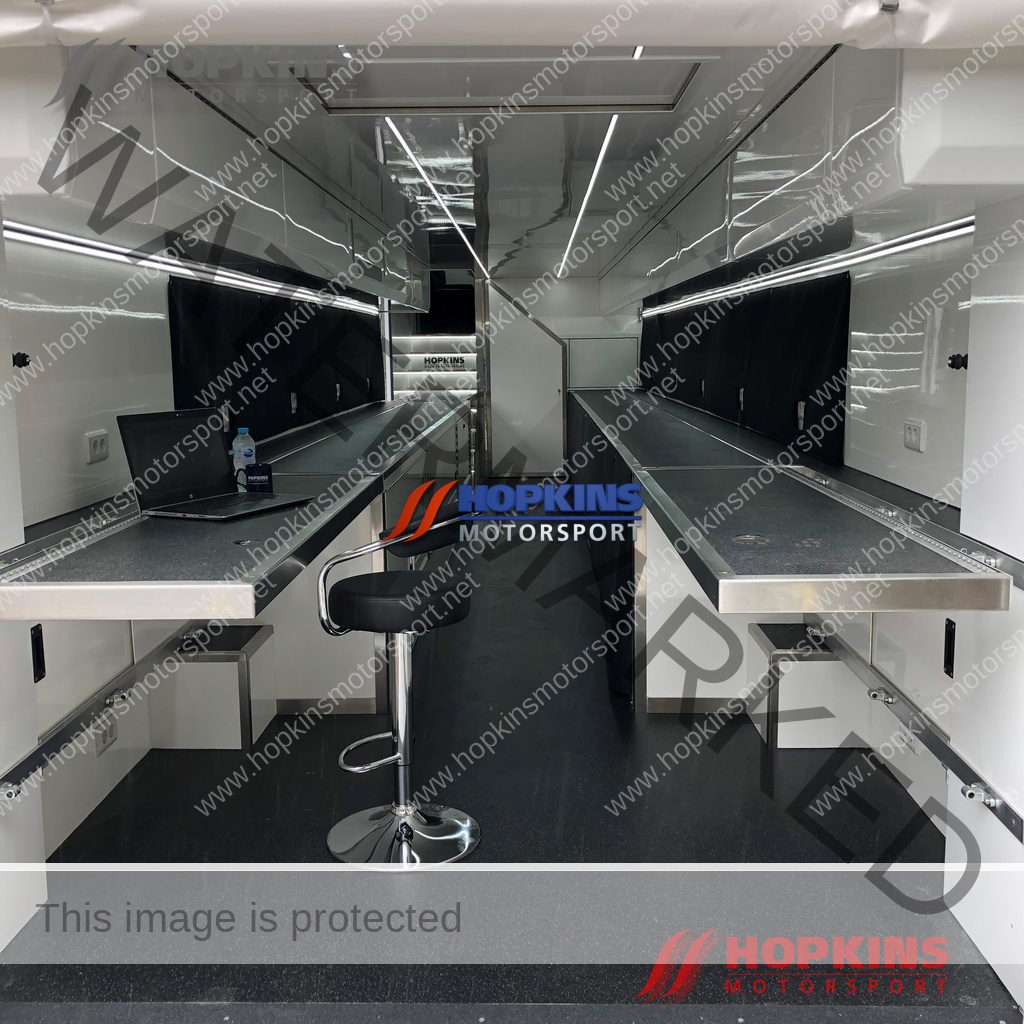

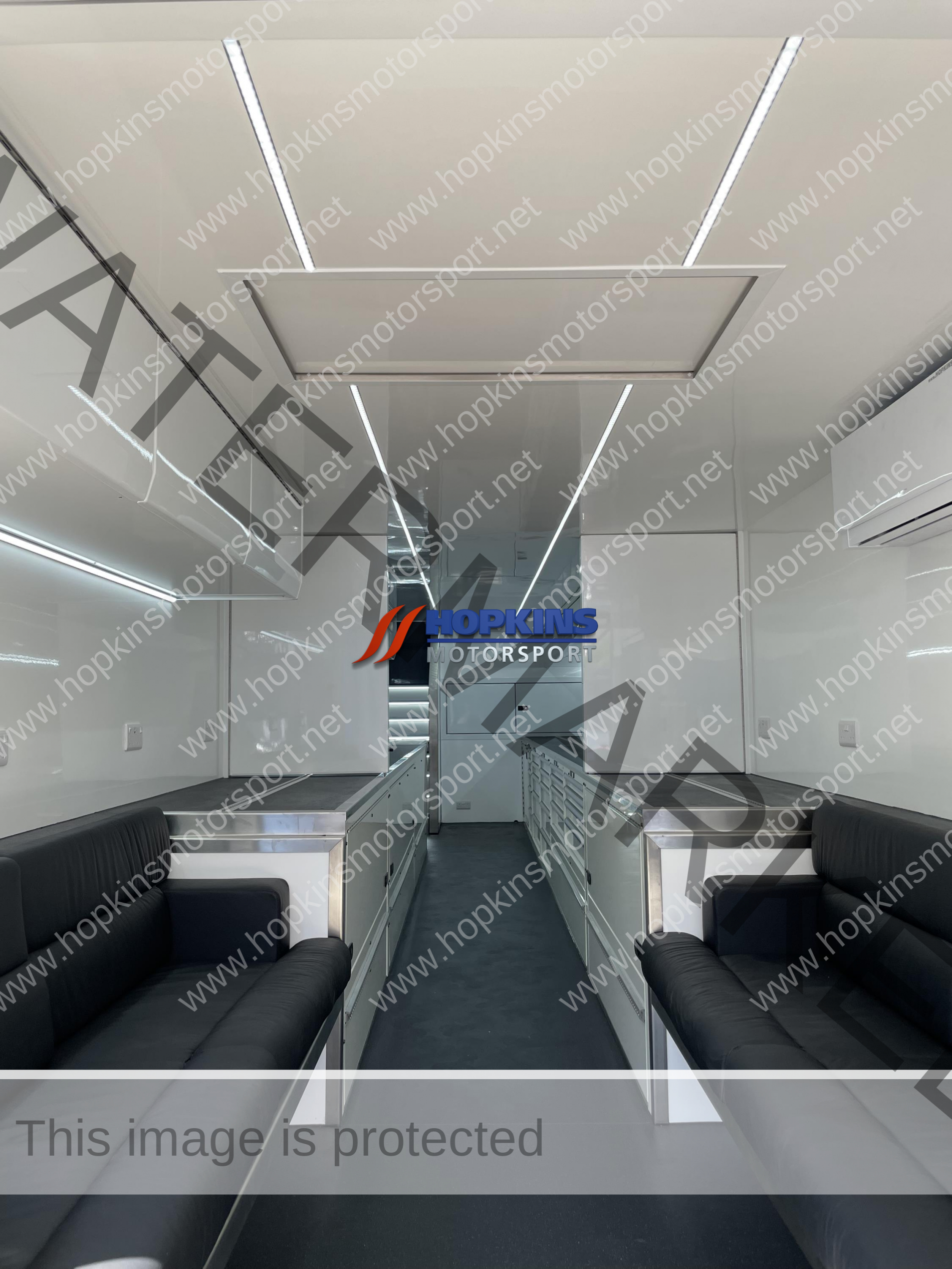

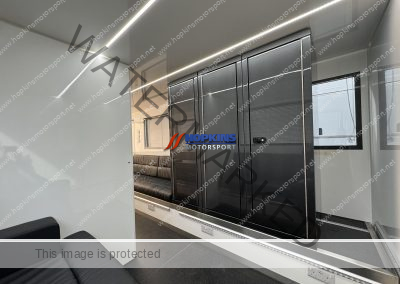

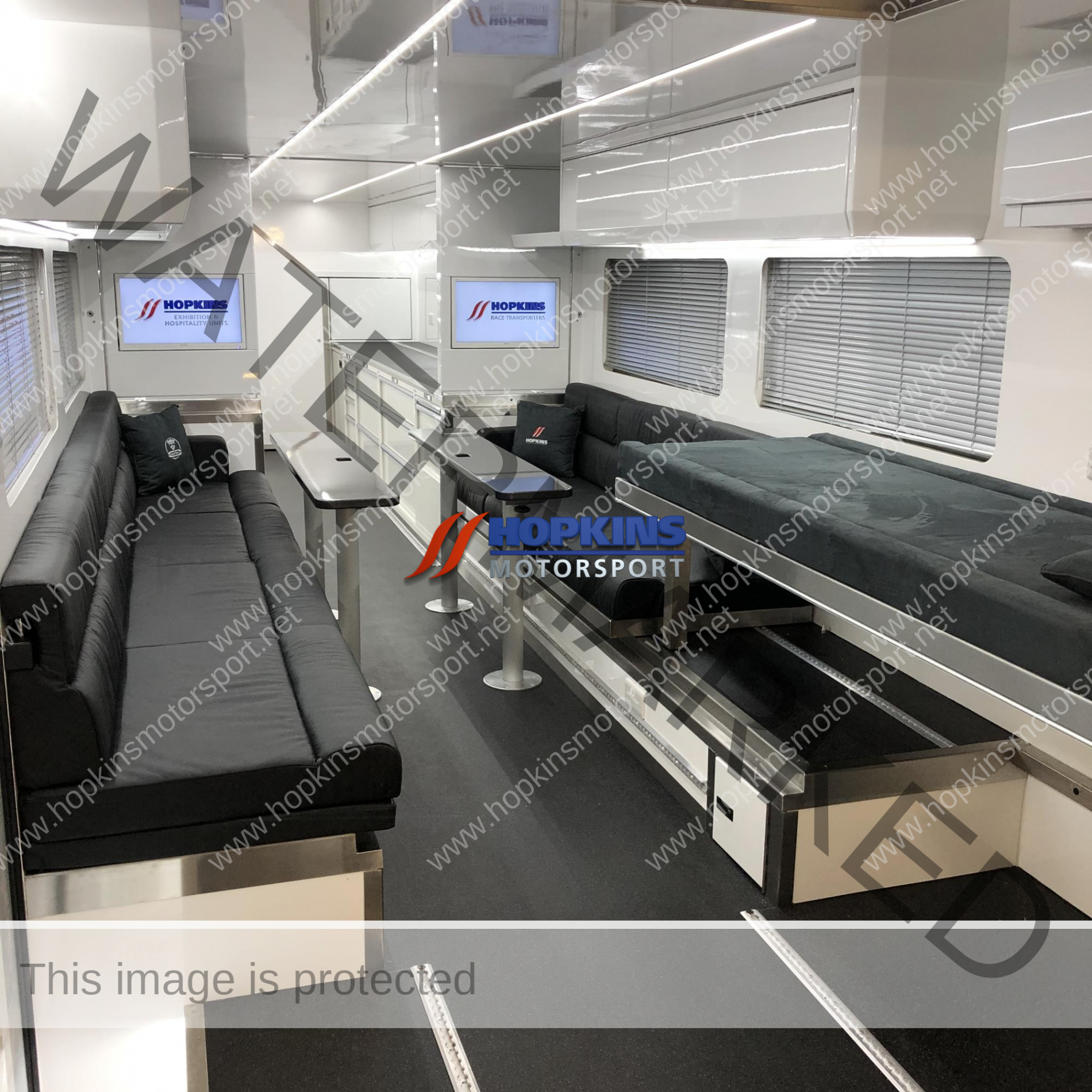

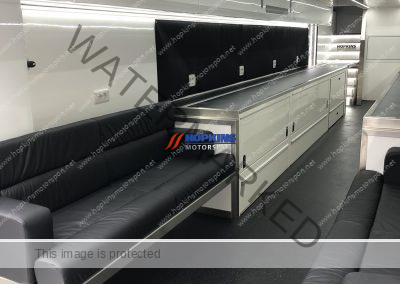

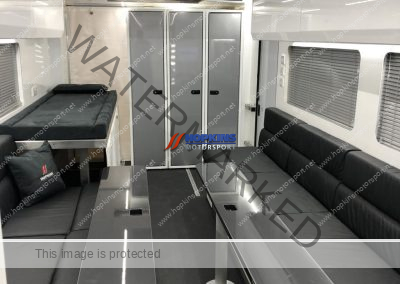

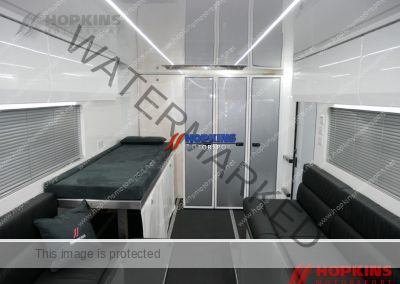

Lower Deck  Drivers/ Engineers room

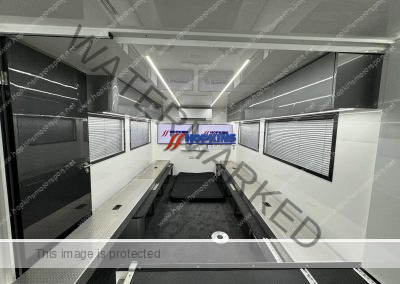

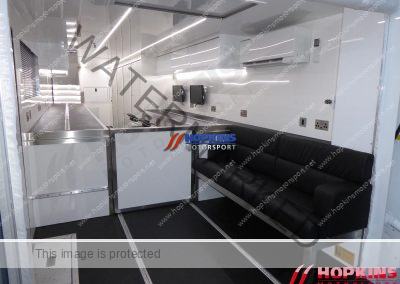

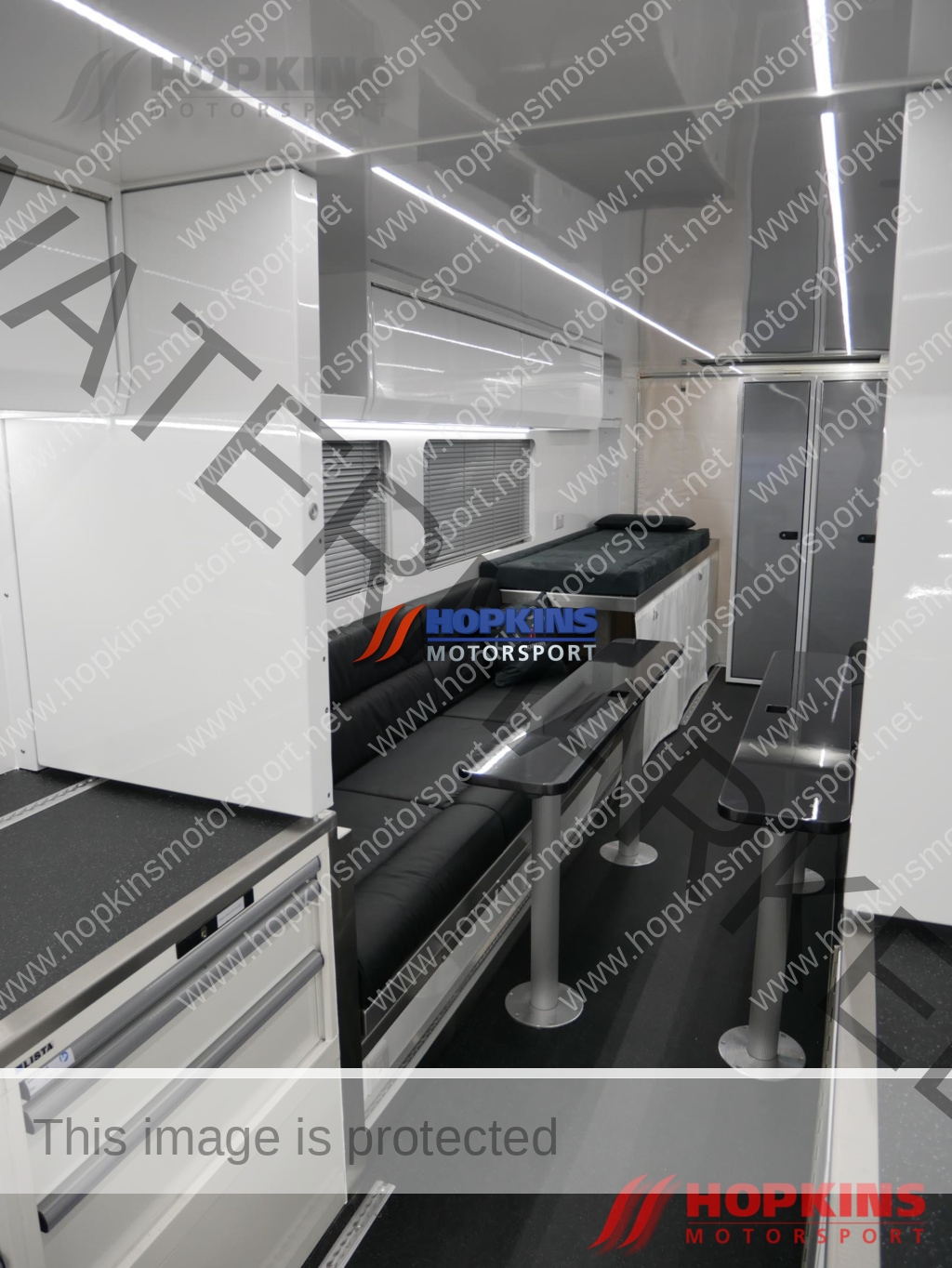

Overwiew:                  The rear 2m of the lower deck can be used for bulk storage during transit with the desks and tables folded up, at the circuit it can be used for data engineers working from desks or as drivers changing room

Walls & Ceiling:         High gloss white.

Lighting:                     Led recessed into the ceiling, HMS standard below the overhead lockers.

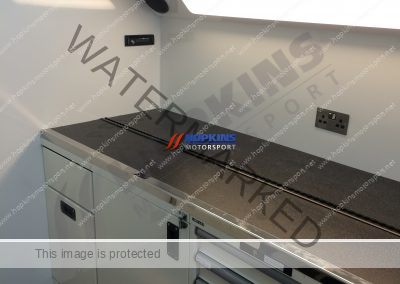

Floors & Bench tops:  finished in black rubber with recessed tracking for securing formula cars and trollies etc.

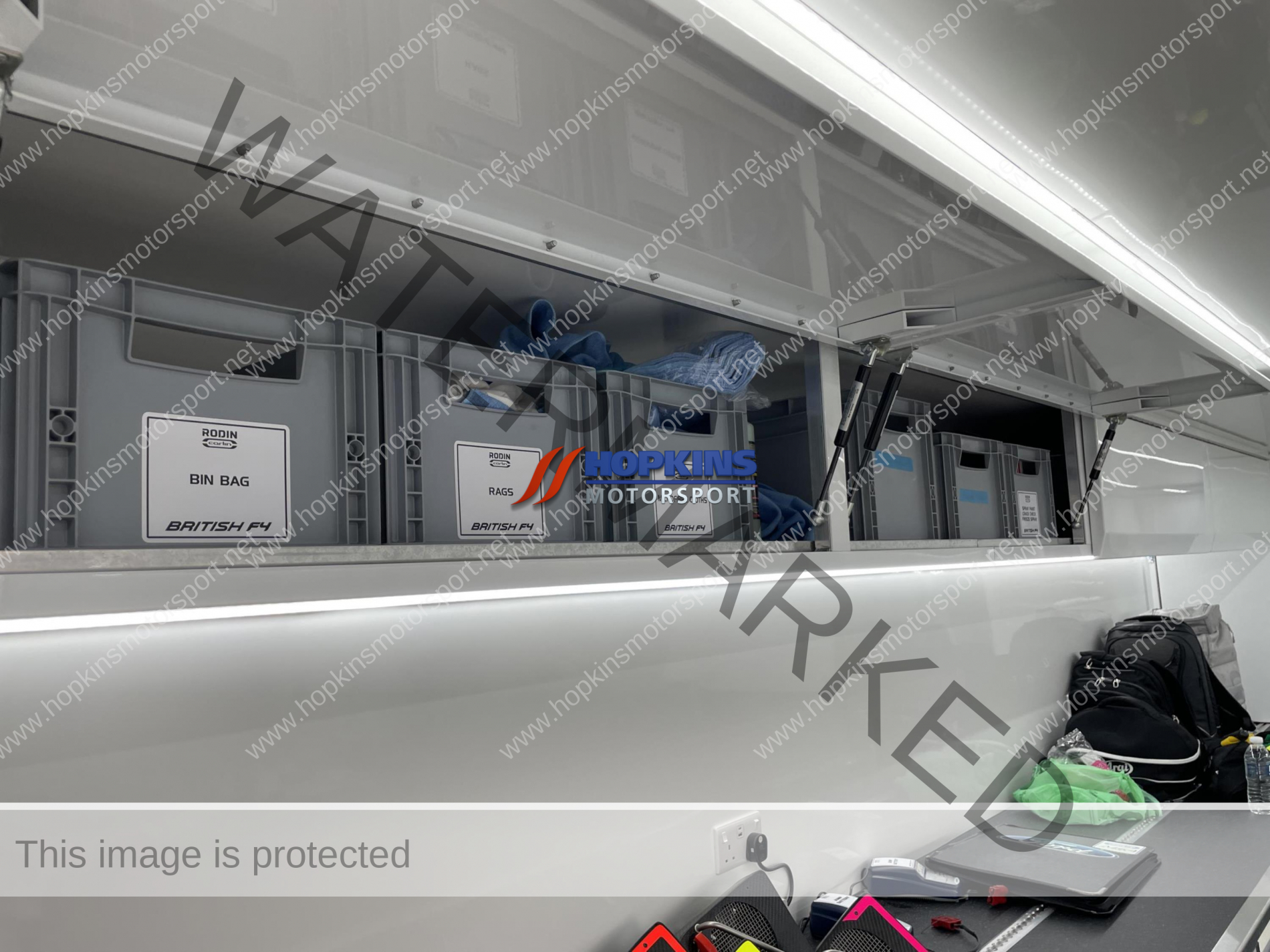

Over head lockers:      Aluminium pressed overhead lockers on each side from the side door to full height roller shutter doors & 2 air outlets, finished in gloss white.

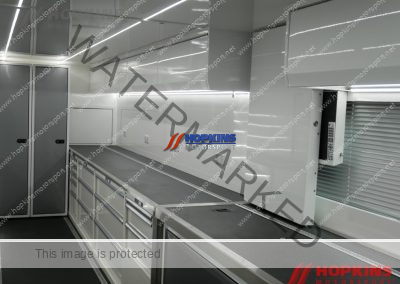

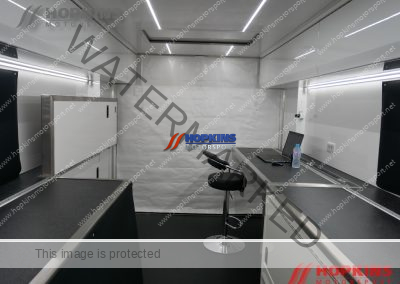

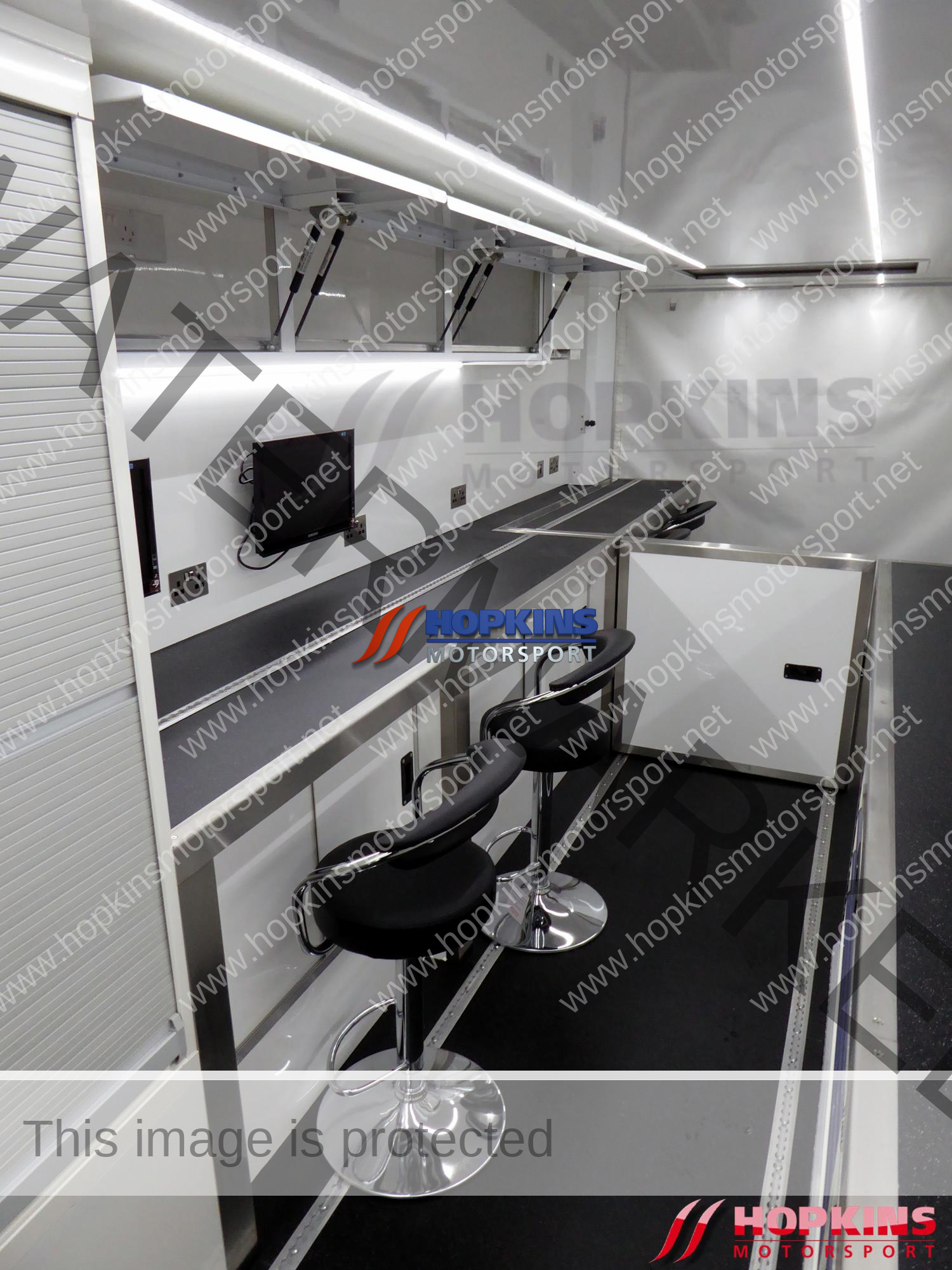

Working From the rear of the workshop:

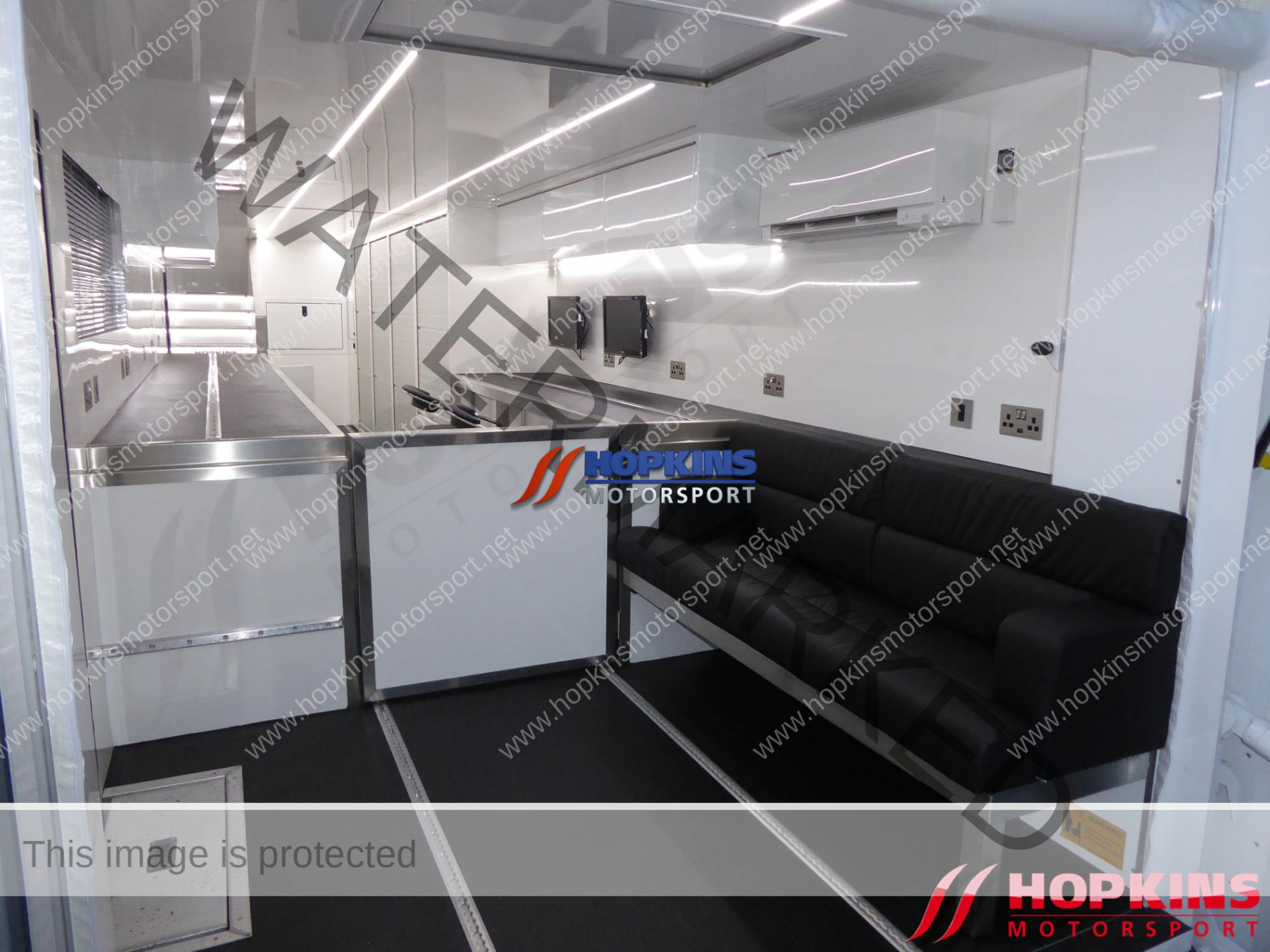

Folding bench’s:         1x folding bench per side length approx 2m.

Seating:                       Black leather cushions with travelling bags to fit on both folding benchs.

Hanging Rail:             1 rail at the rear to hang overalls etc.

Air Conditioning:       In the drivers room

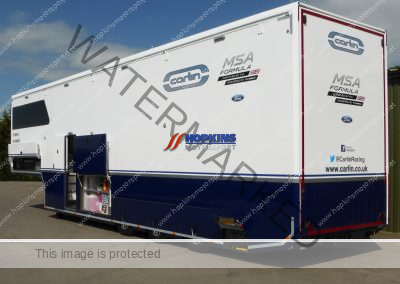

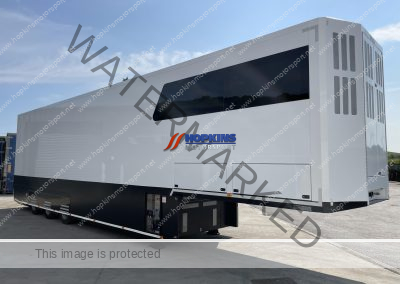

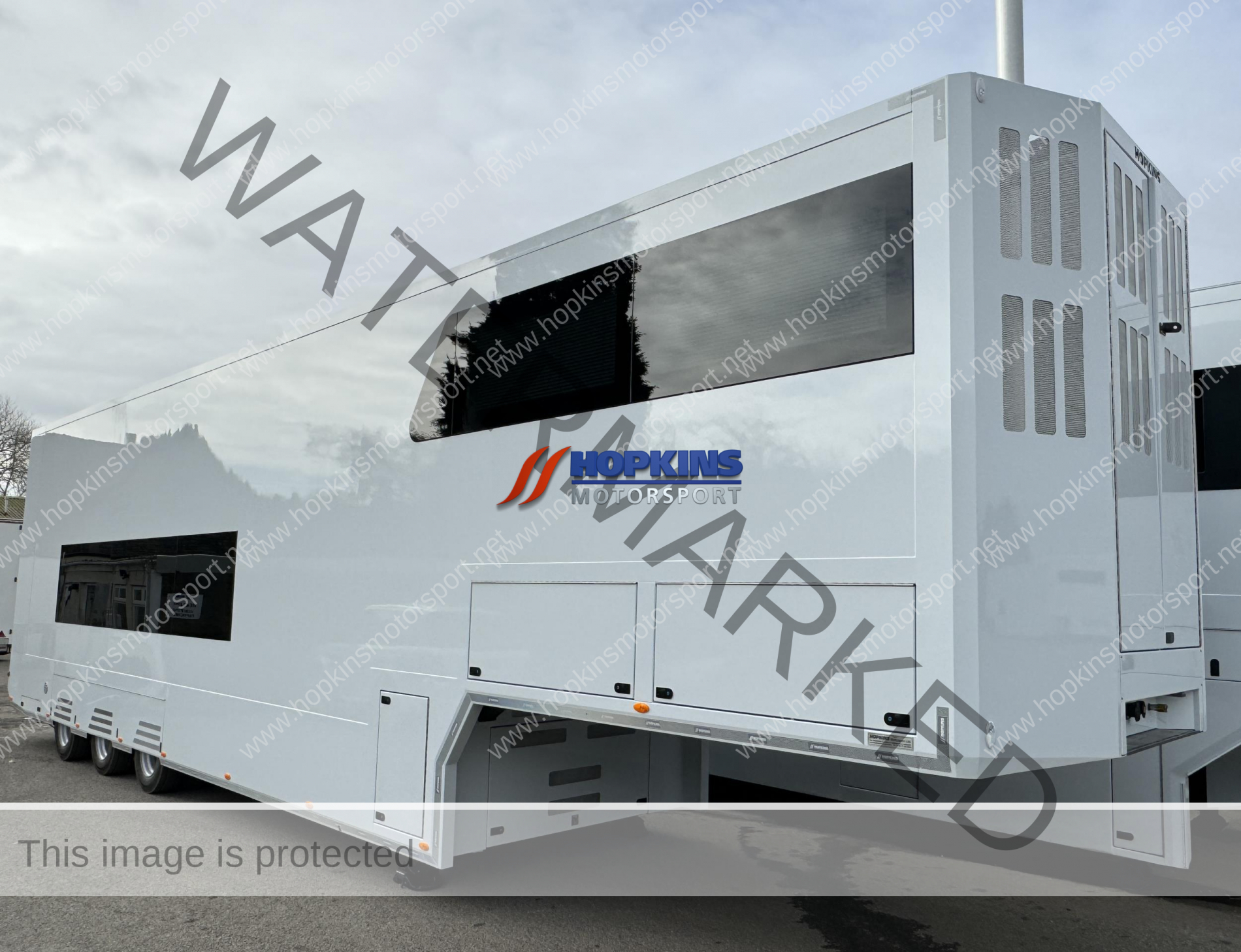

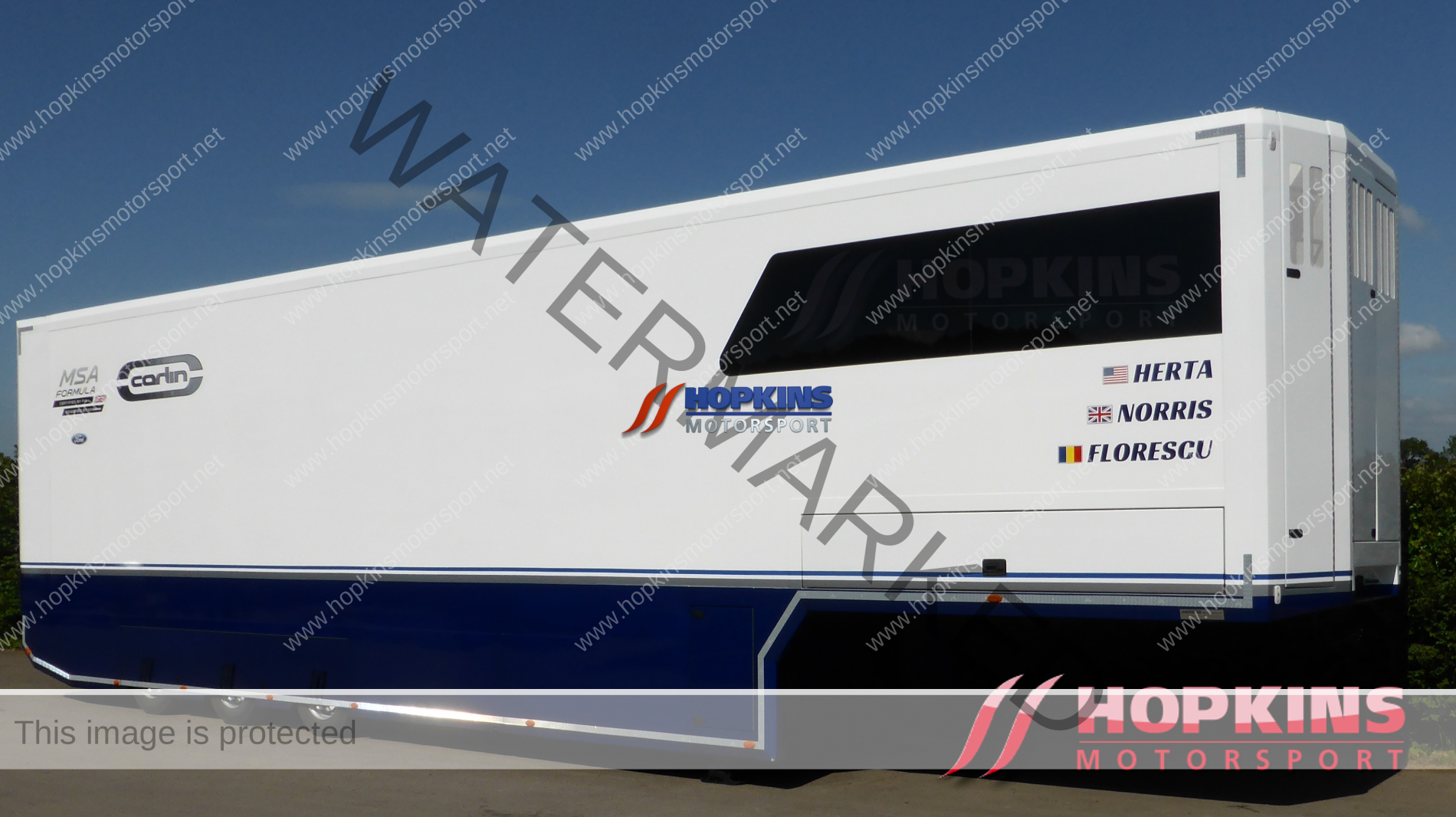

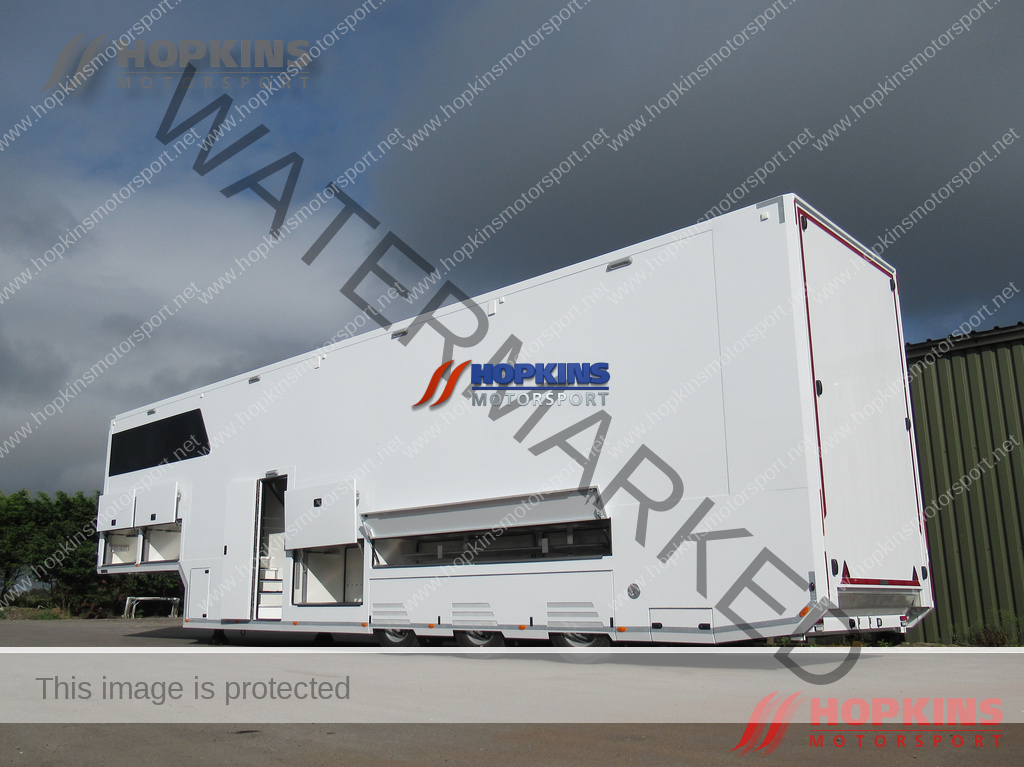

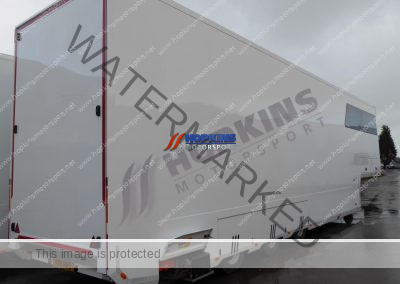

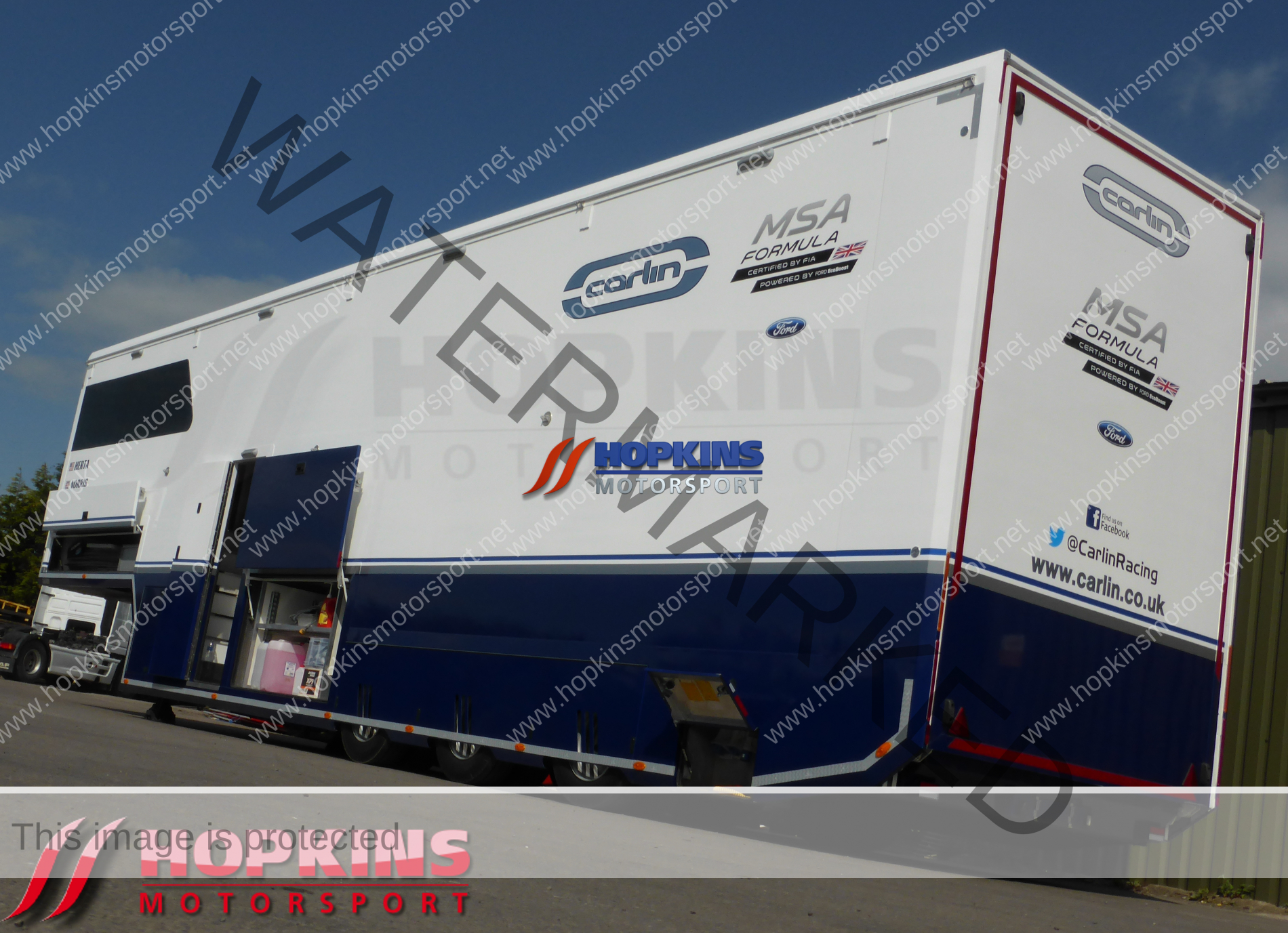

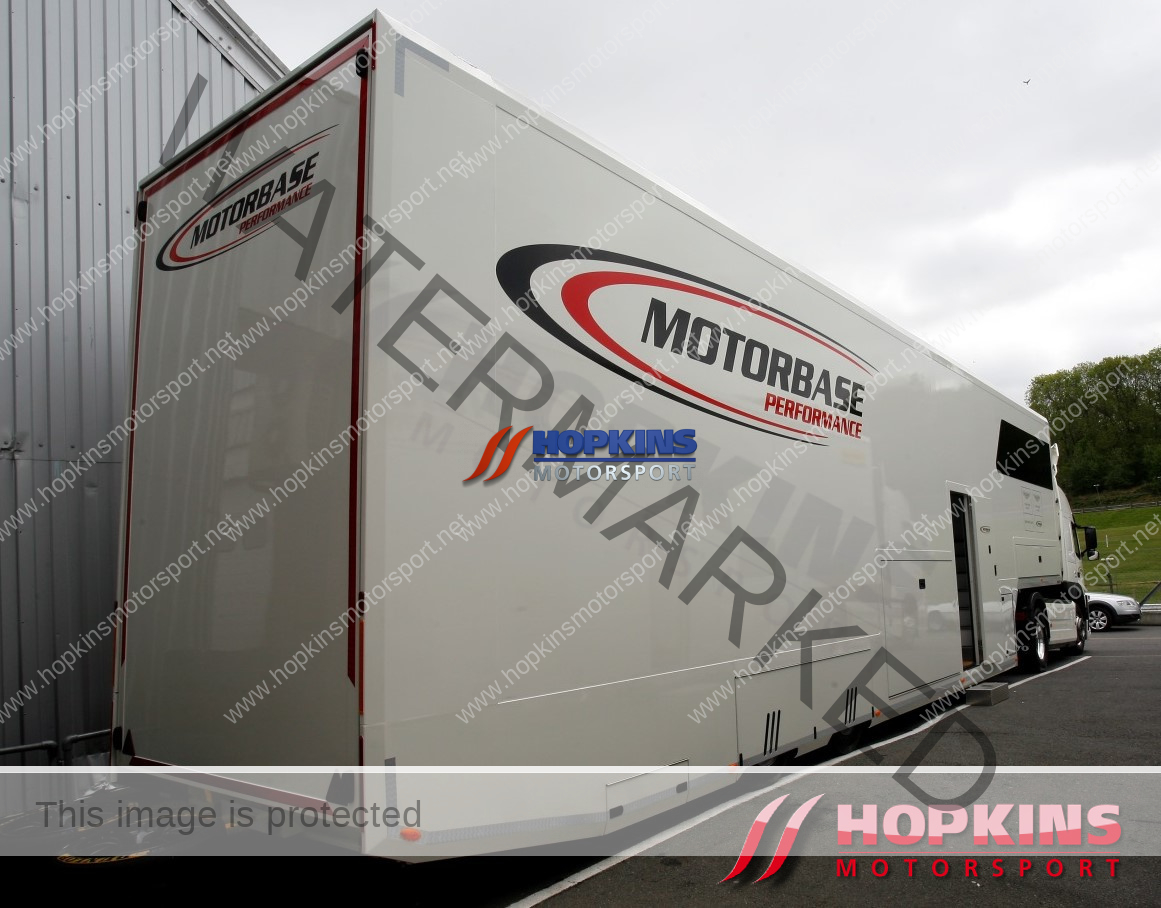

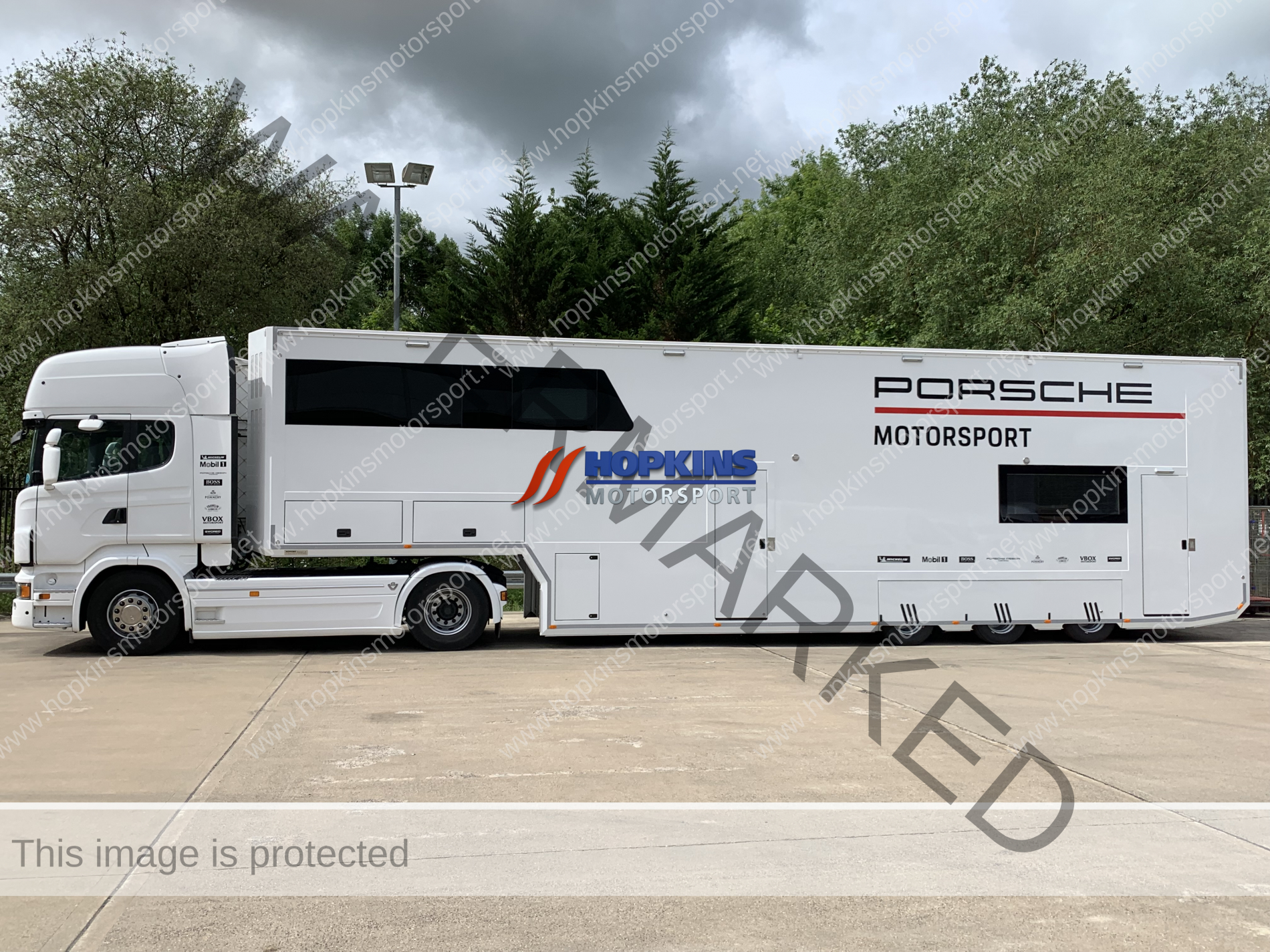

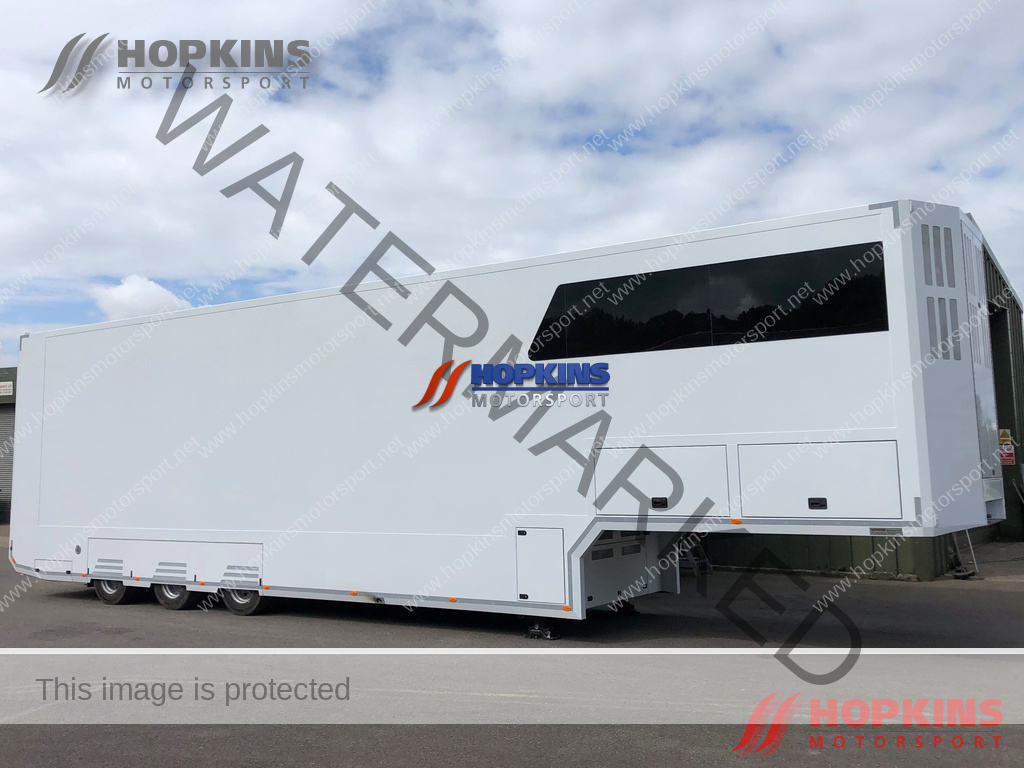

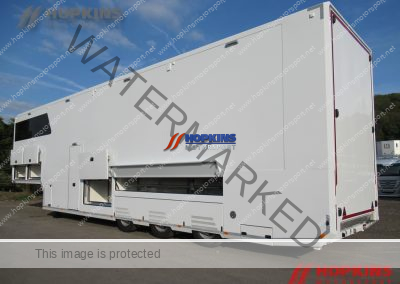

External

100% new construction.
The chassis any additional steel work will be finished in 2k black paint.
Side panels 32mm GRP finished internally and externally in 2mm high gloss white vetrosina GRP.
All of the side mouldings, the dome and lockers doors will be finished in 3mm aluminium.
Starting from the front of the transporter.
Aluminium pressed dome, the bottom edge of the dome and the lower side of the side pressings will all be chamfered at a height of 60mm.

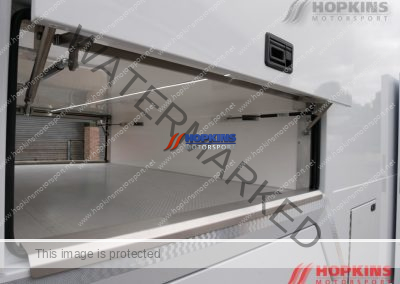

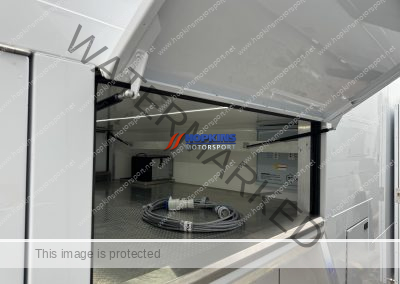

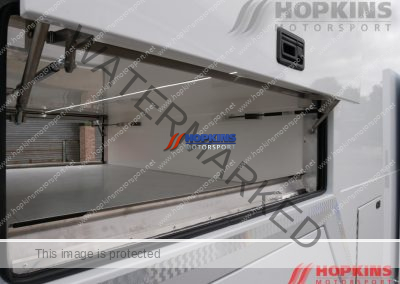

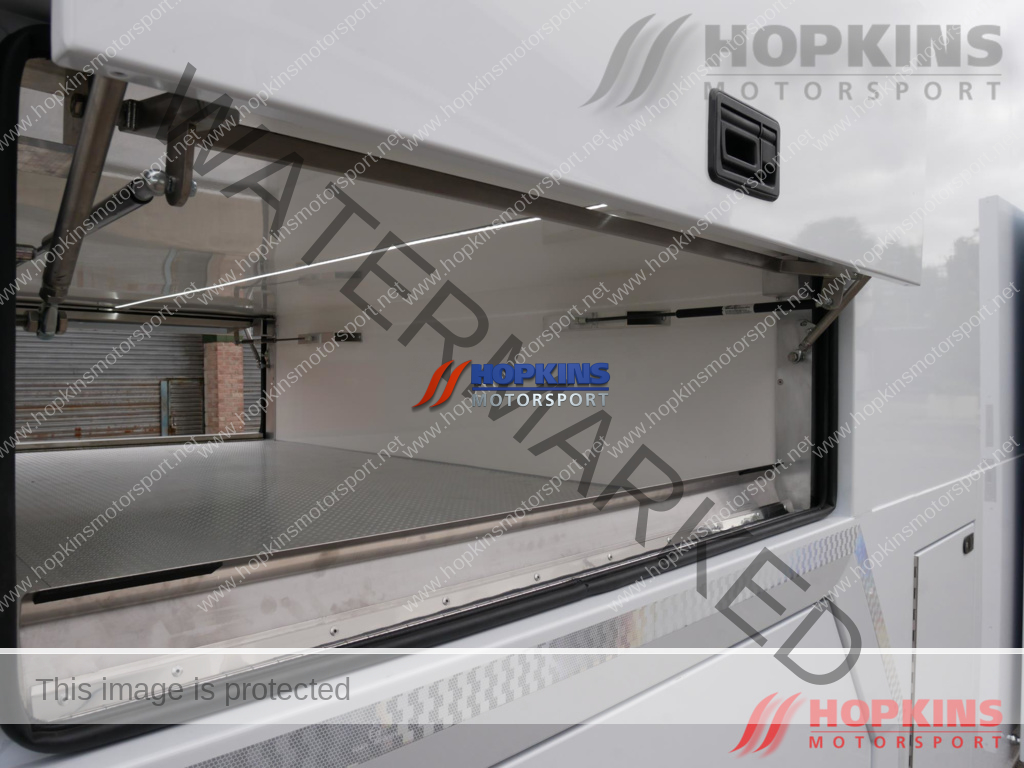

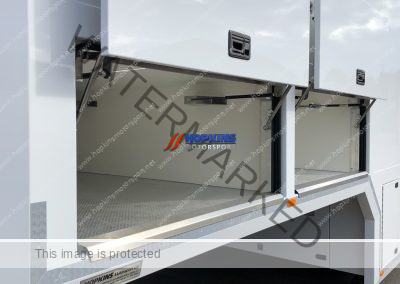

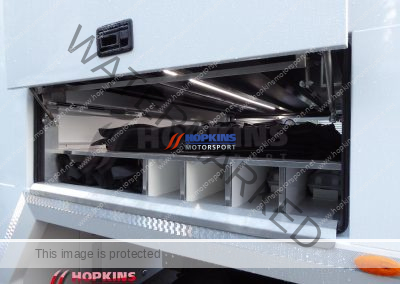

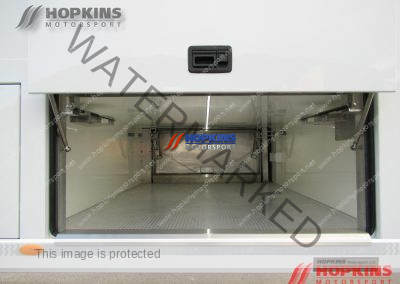

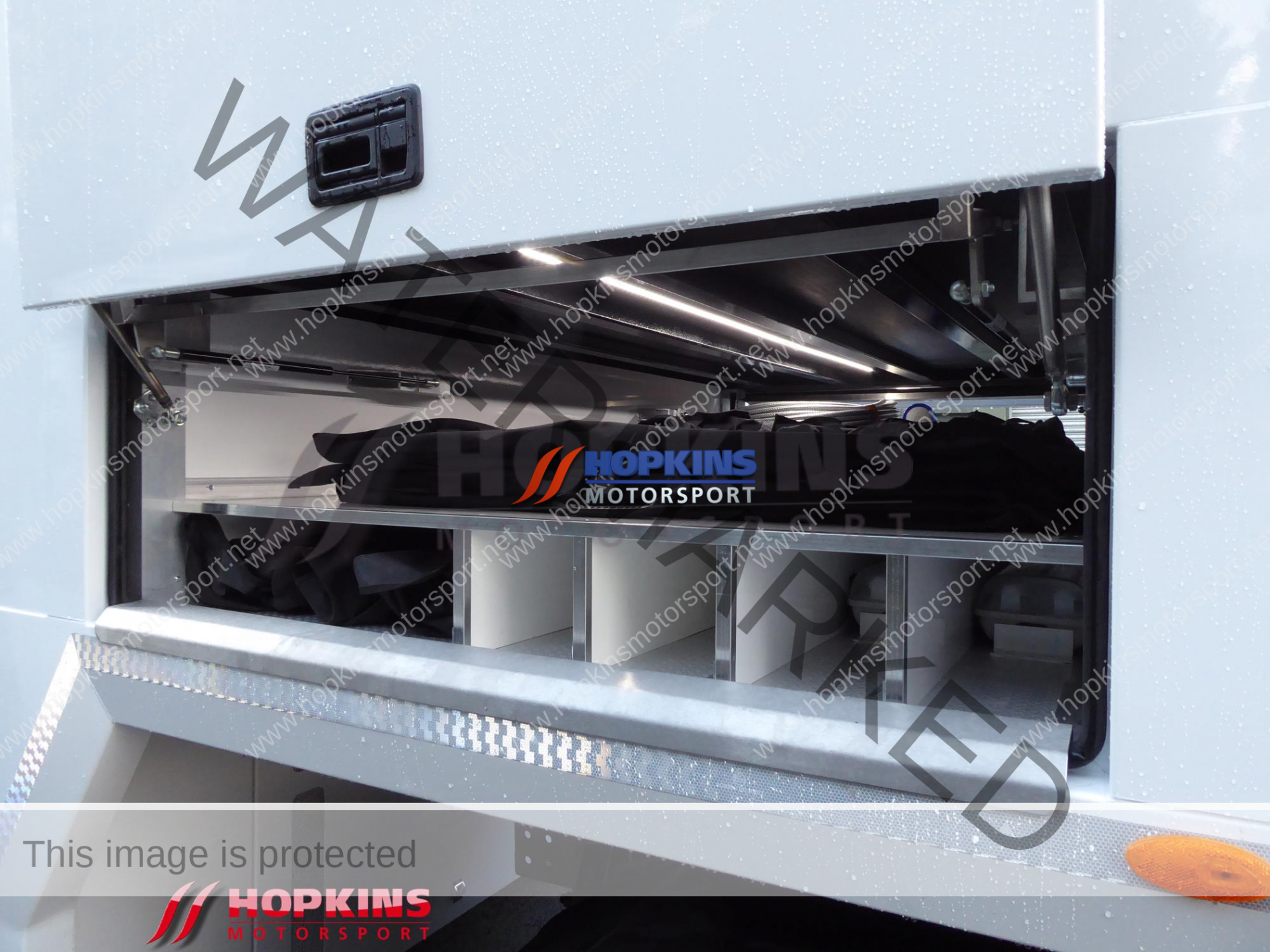

Neck Lockers.1x locker door per side on the goose neck of the trailer, length approx 2850mm x 500mm each, coach style up & over doors. Internally the roof will be finished in stucco aluminium, the roof panels will be bolted in for access to various power and air cables.  Below the goose neck (where the tractor unit backs under) roof panels finished in 3mm aluminium cricket weave.

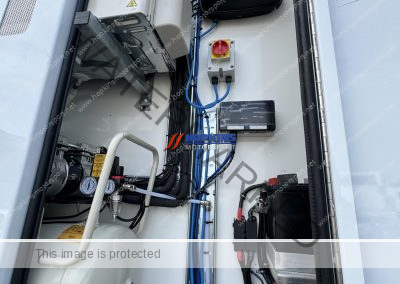

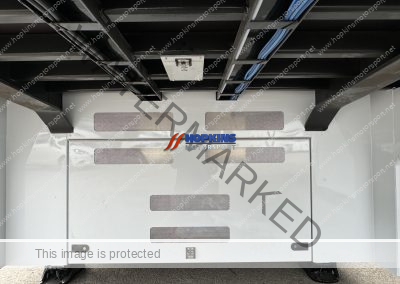

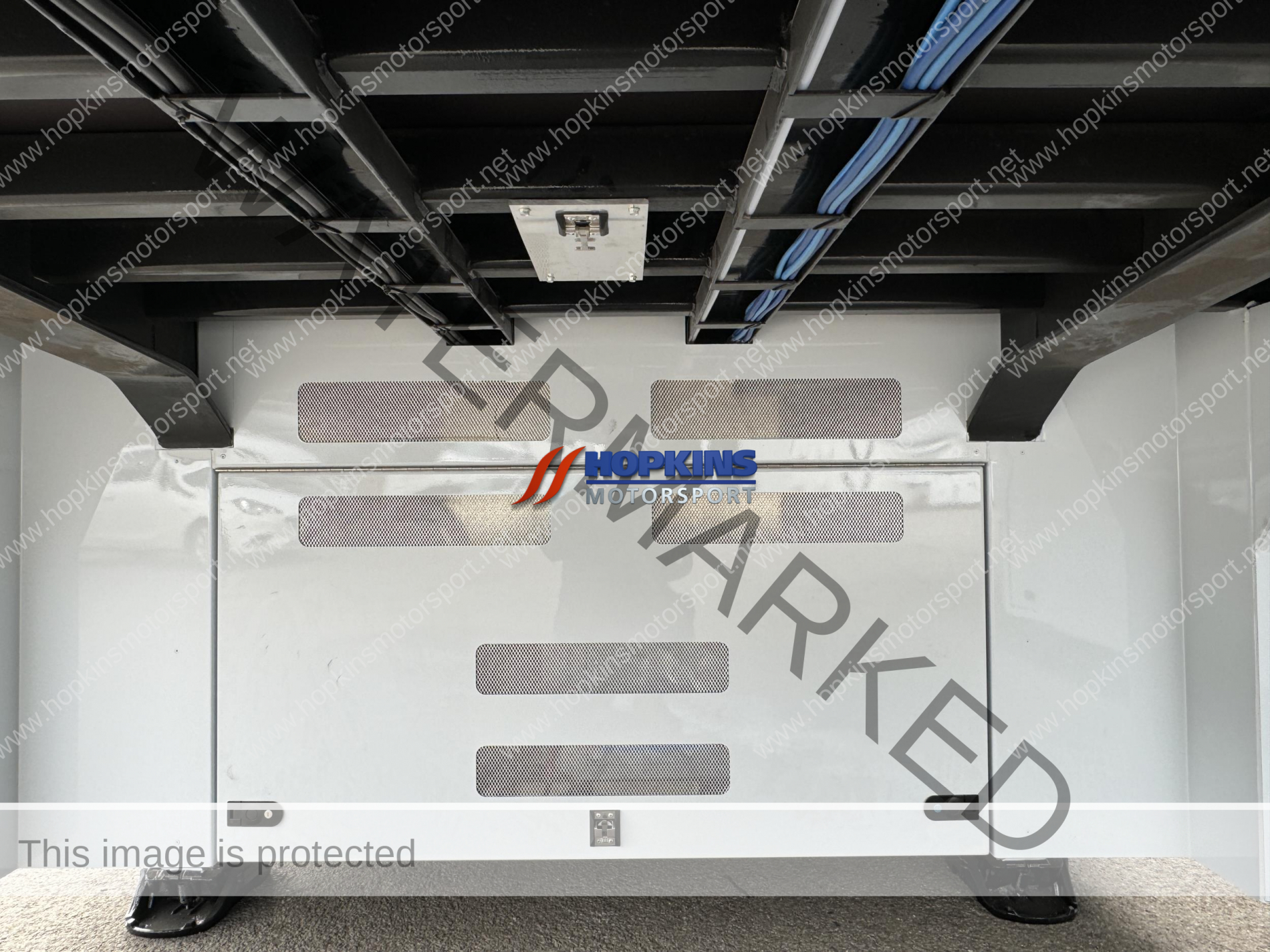

Generator compartment.  The door and surrounding panels will be finished in 3mm aluminium painted to suit, the door will open on gas struts, the locker will be fully lined in 10mm lead insulation to reduce noise into the trailer and then fully lined in silver stucco aluminium, a bespoke fuel tank will be mounted outside the generator compartment but still behind the neck panels.  On the right hand side of the generator compartment under the neck the suspension raise & lower valve hand vehicle hand brakes will be mounted. We will also mount 2 x power outlet boxes and air outlet here for both sides.

Side door.        1 on the near side of our standard design.

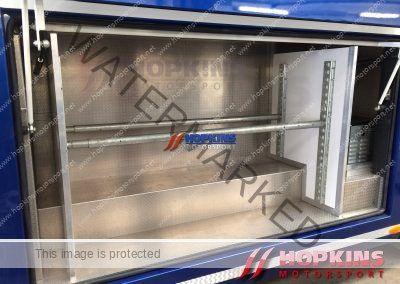

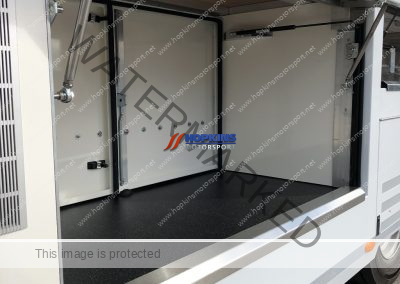

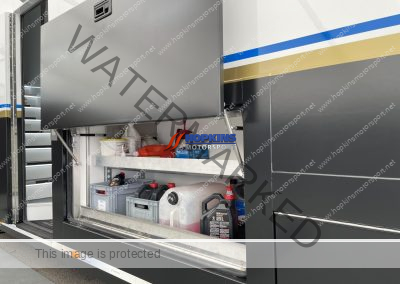

Side locker.     1 on the near side Length approx 2070mm max height 1060mm.  The locker door will open on coach style up and over mechanisms.  The walls and ceilings will be finished in high gloss white with a rubber anti damage rail fitted to all walls, the floors and any shelving will be finished in 3mm aluminium cricket weave.  Air and power outlets can be fitted to suit. 2 x 24v lights will be fitted in these lockers to suit.

Wheel arch’s. 3mm aluminium construction hinging on the top edge fluted for air to suit.

Rear End         3x Led lights per side fitted to the side of the lift, all edges chamfered as per the bottom of the truck.

Roof.               32mm thick insulated panel, gloss white on both sides.

Flag poles       x4

Windows.        2 x over fit tinted panels per side with black out to two internal windows.

Mast:               No

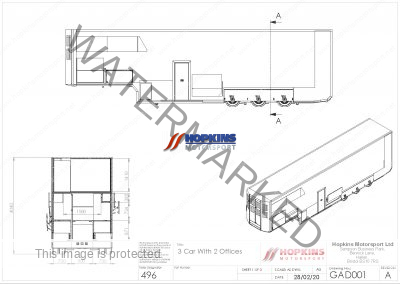

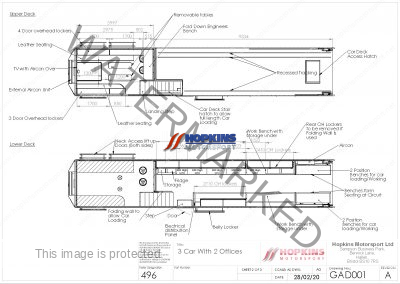

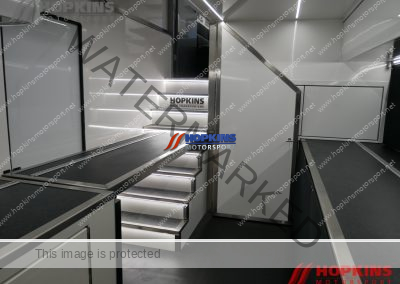

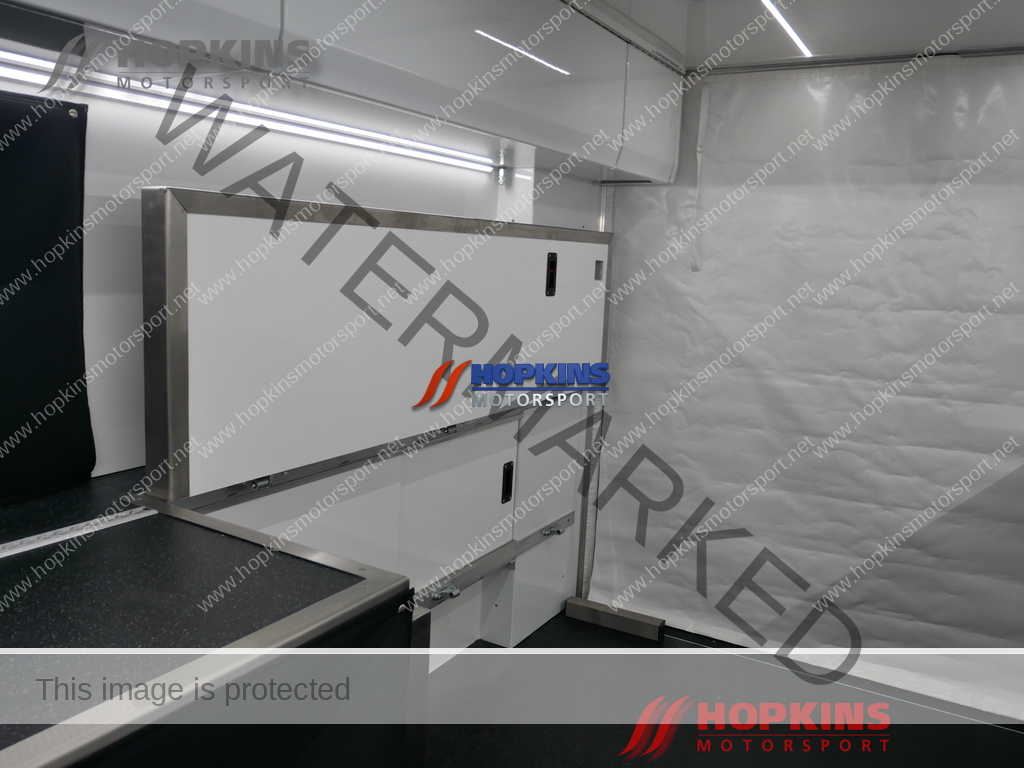

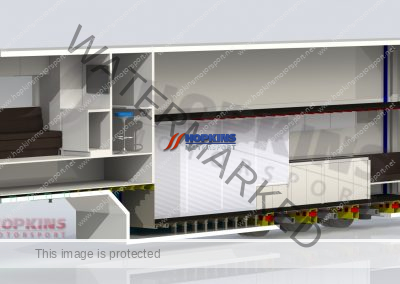

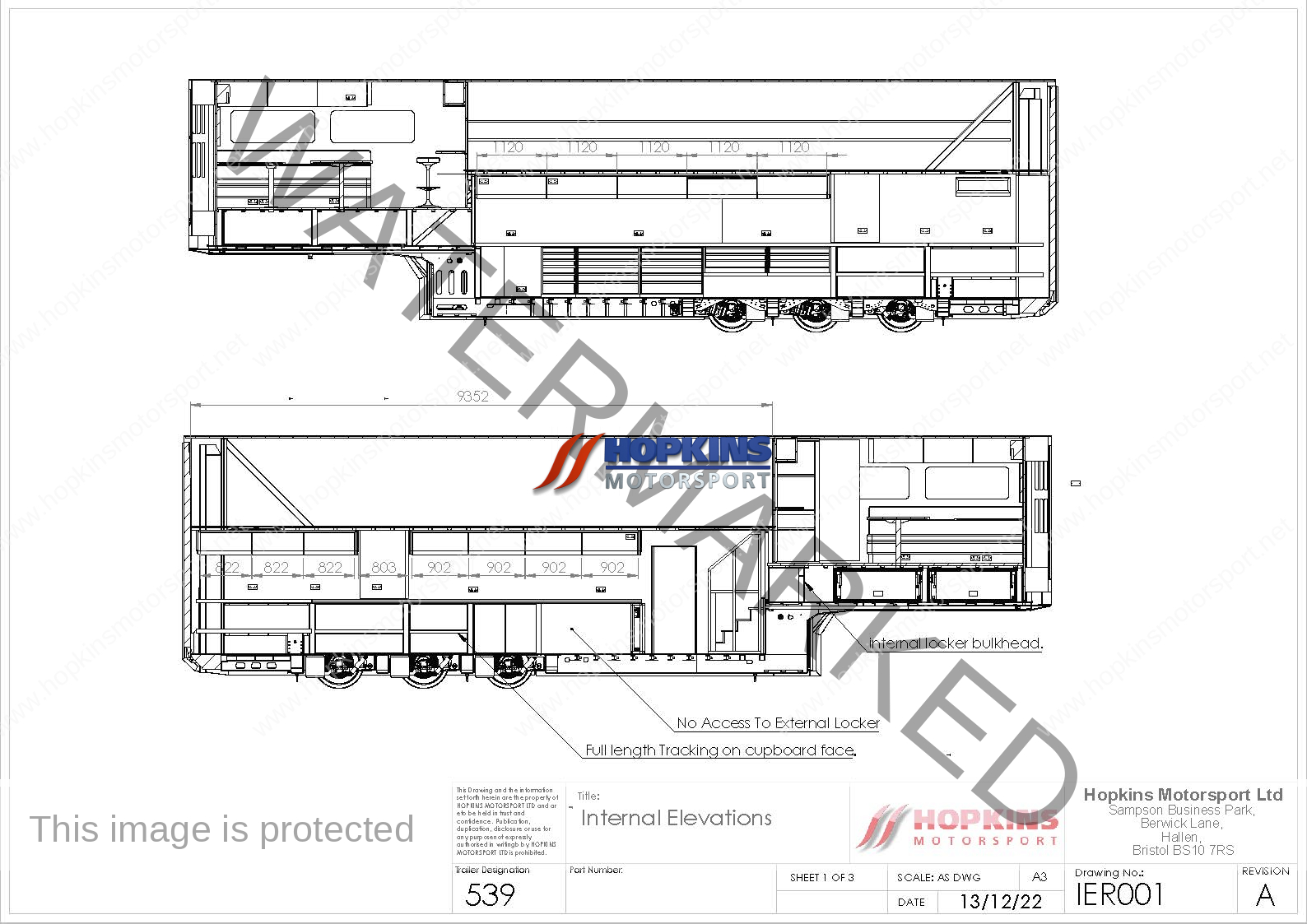

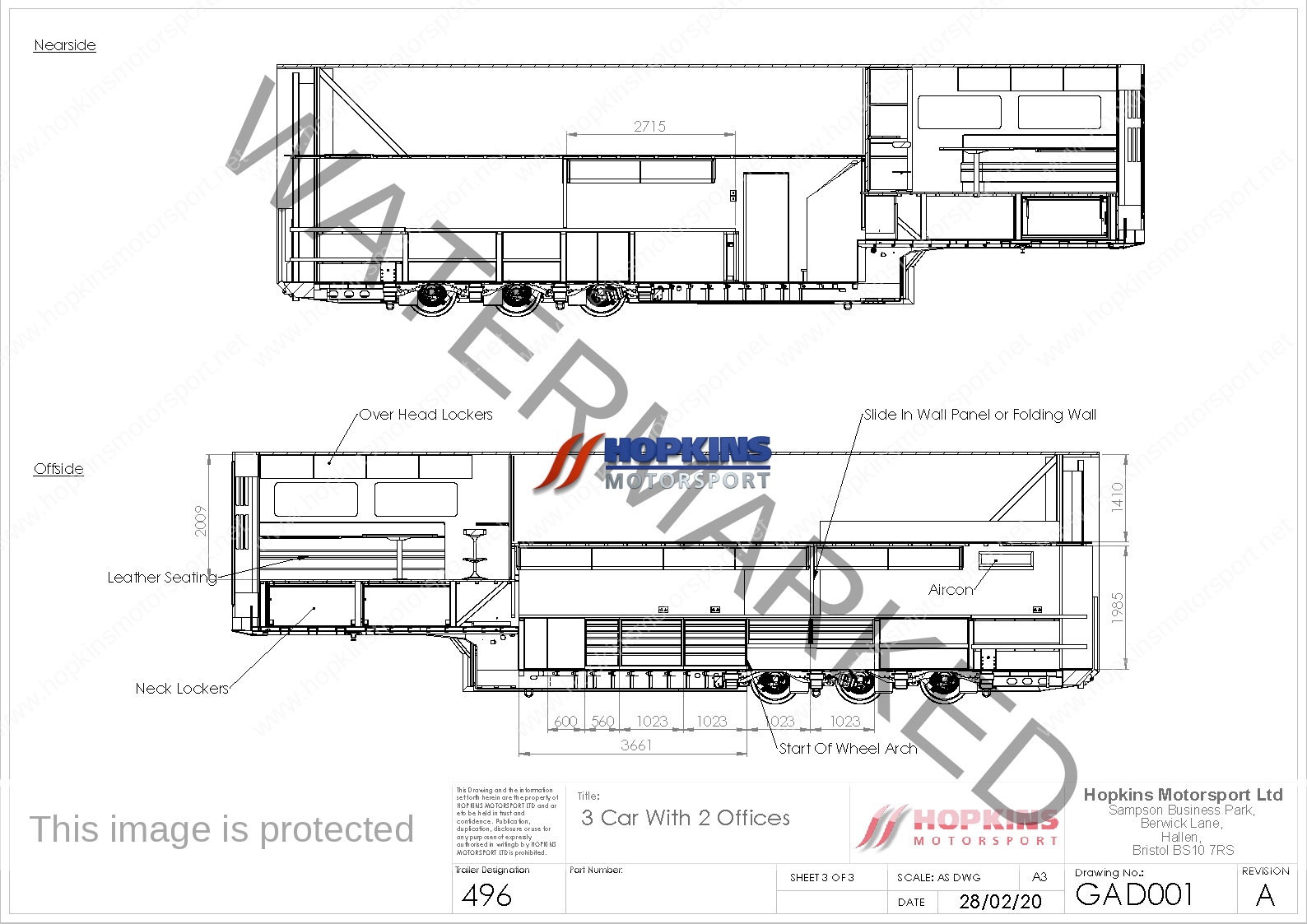

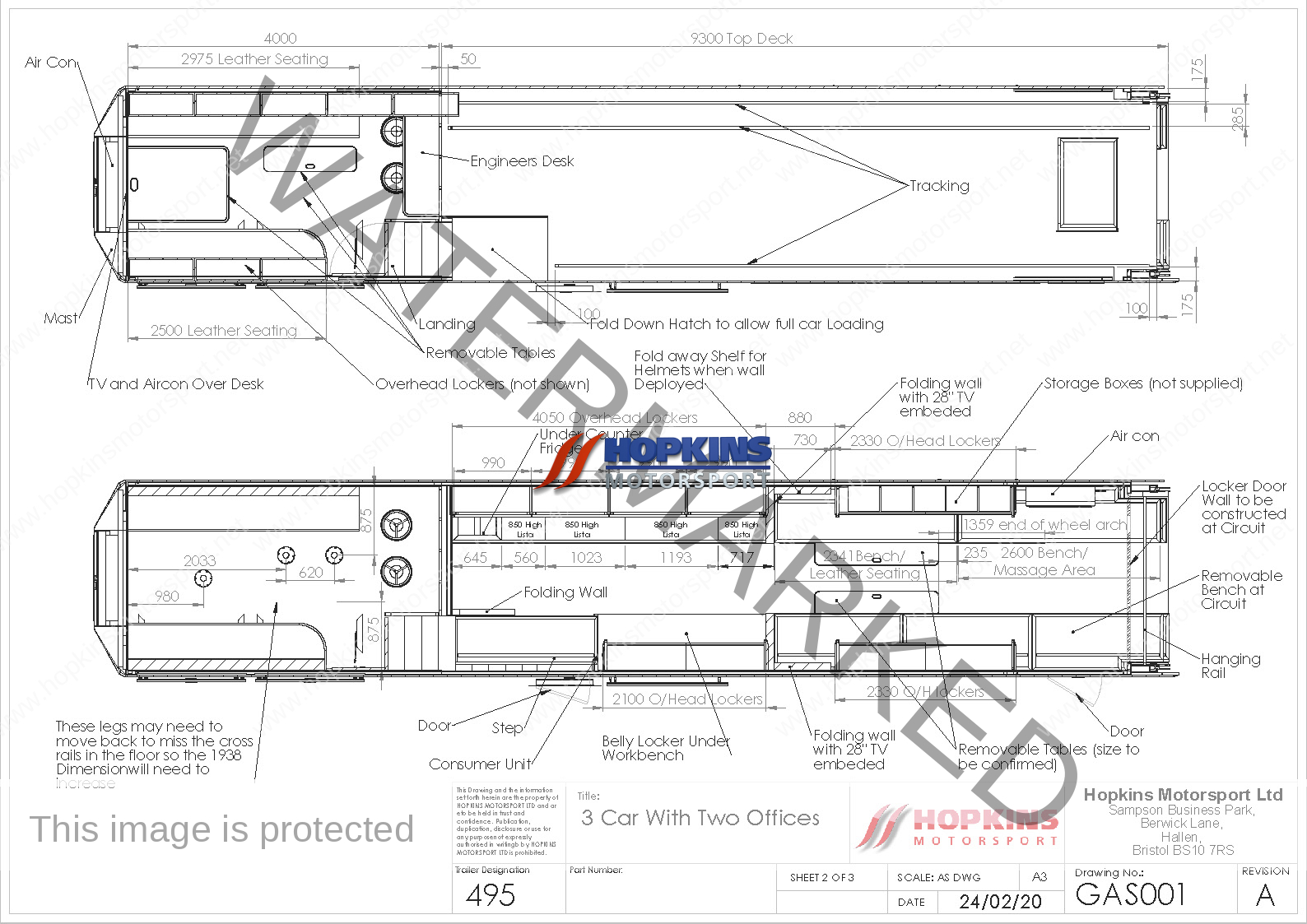

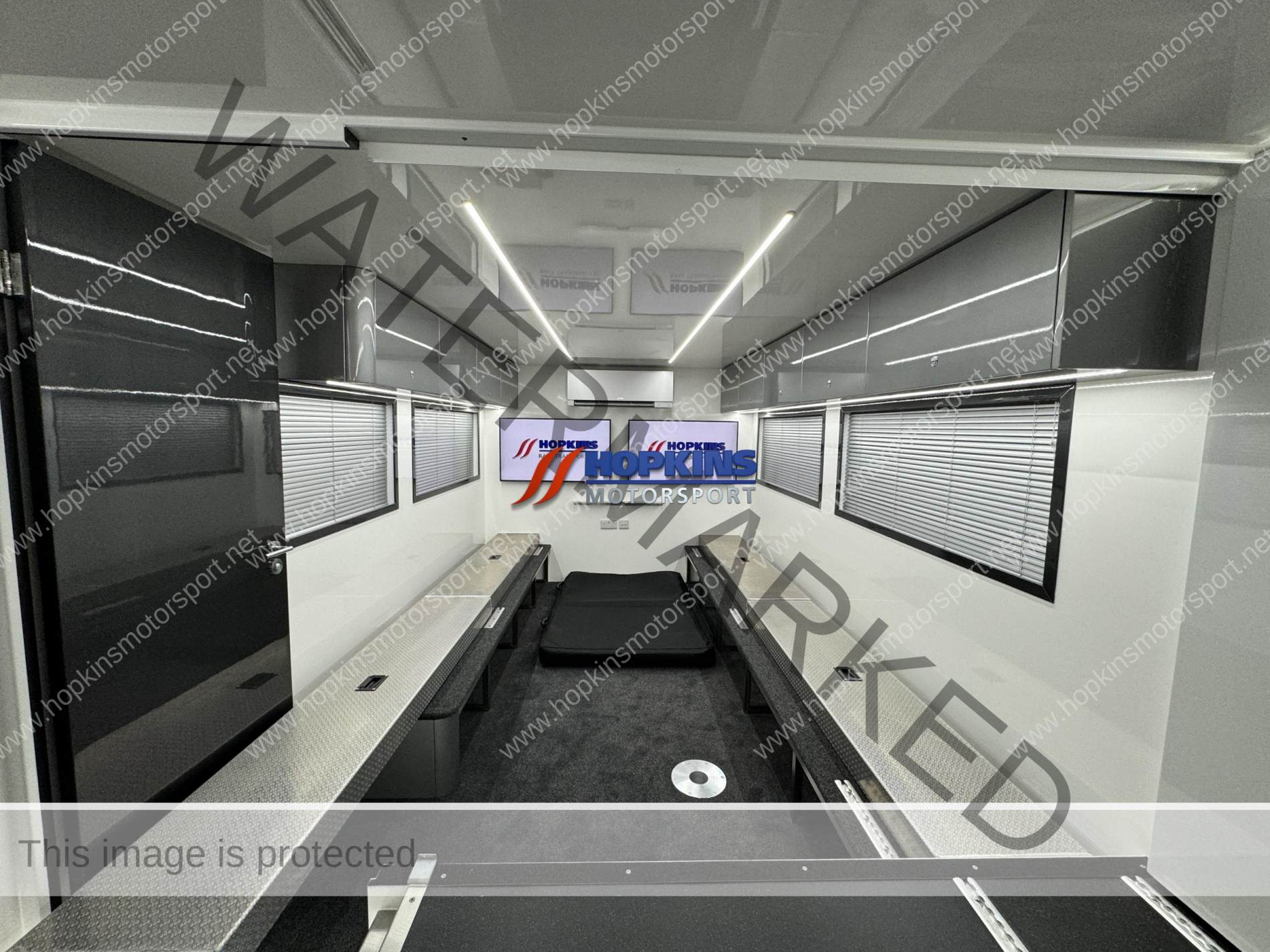

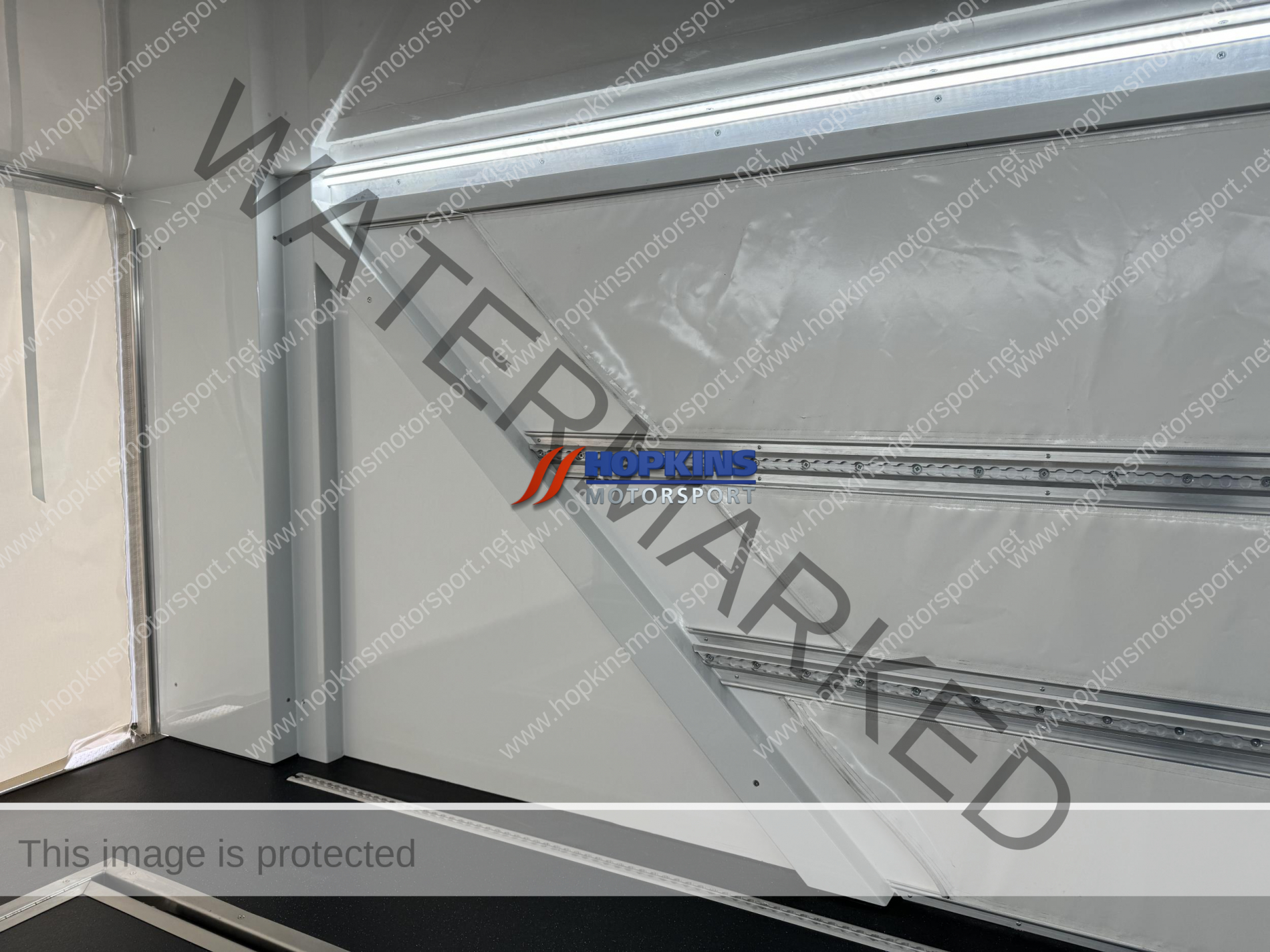

2 Formula car carrying capacity, folding benchs at the rear for bulk storage, fitted lista cabinets and HMS wall units

Max carrying capacity 2 GT cars or bulk storage.

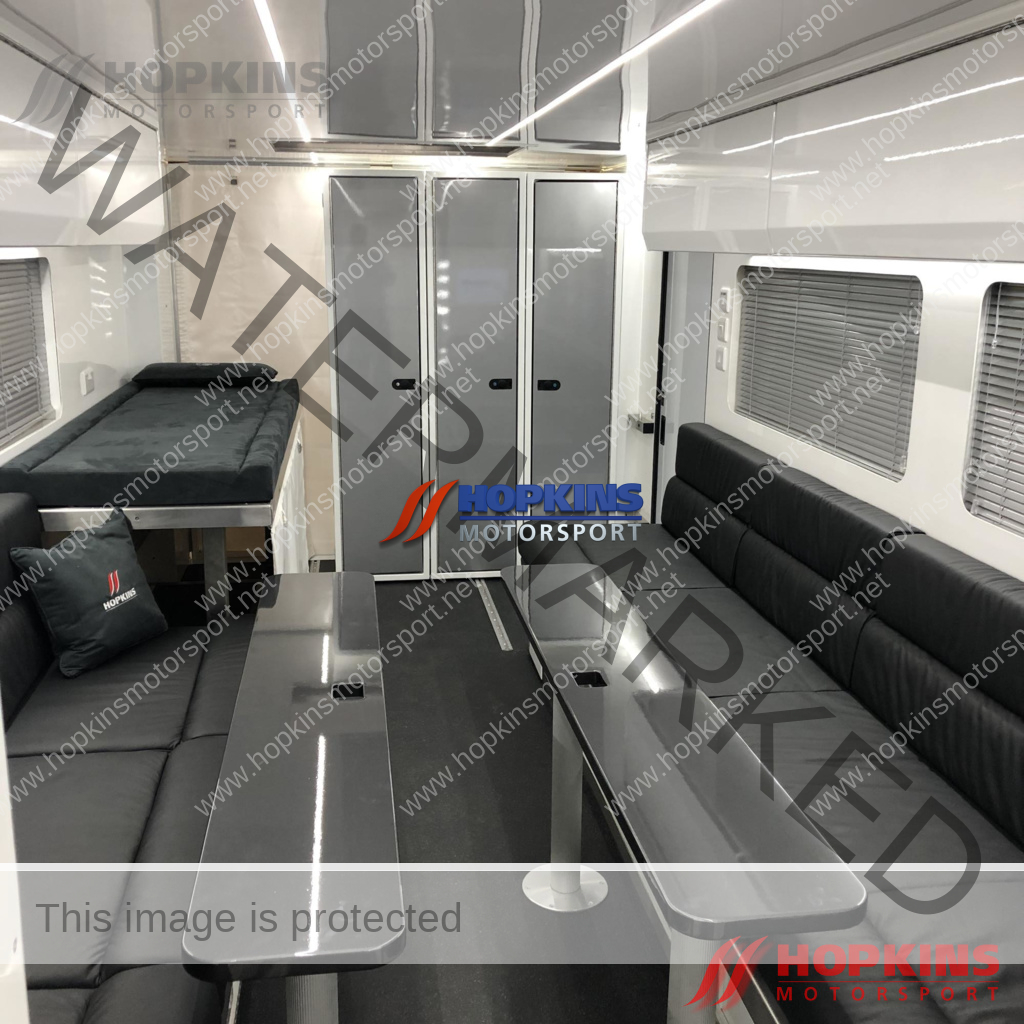

Designed as management or Driver/Engineers area, room for 4 drivers and engineers  plus 2 data engineers.

The rear 2mtrs of the lower deck will convert to a drivers room at the circuit.

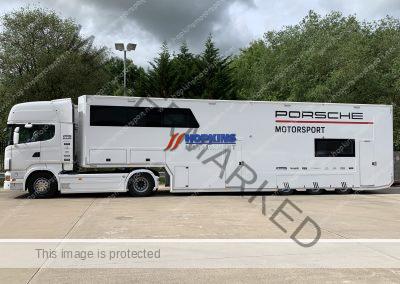

100% new construction.

The chassis any additional steel work will be finished in 2k black paint.

Side panels 32mm GRP finished internally and externally in 2mm high gloss white vetrosina GRP.

All of the side mouldings, the dome and lockers doors will be finished in 3mm aluminium.

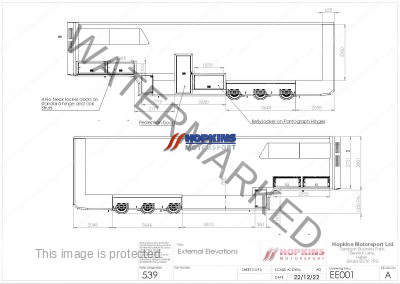

Starting from the front of the transporter.

Aluminium pressed dome, the bottom edge of the dome and the lower side of the side pressings will all be chamfered at a height of 60mm.

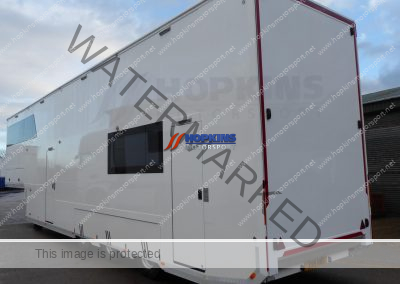

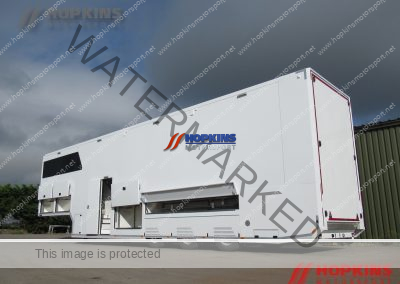

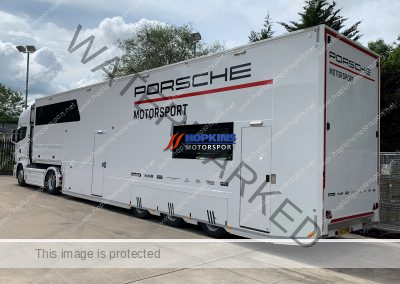

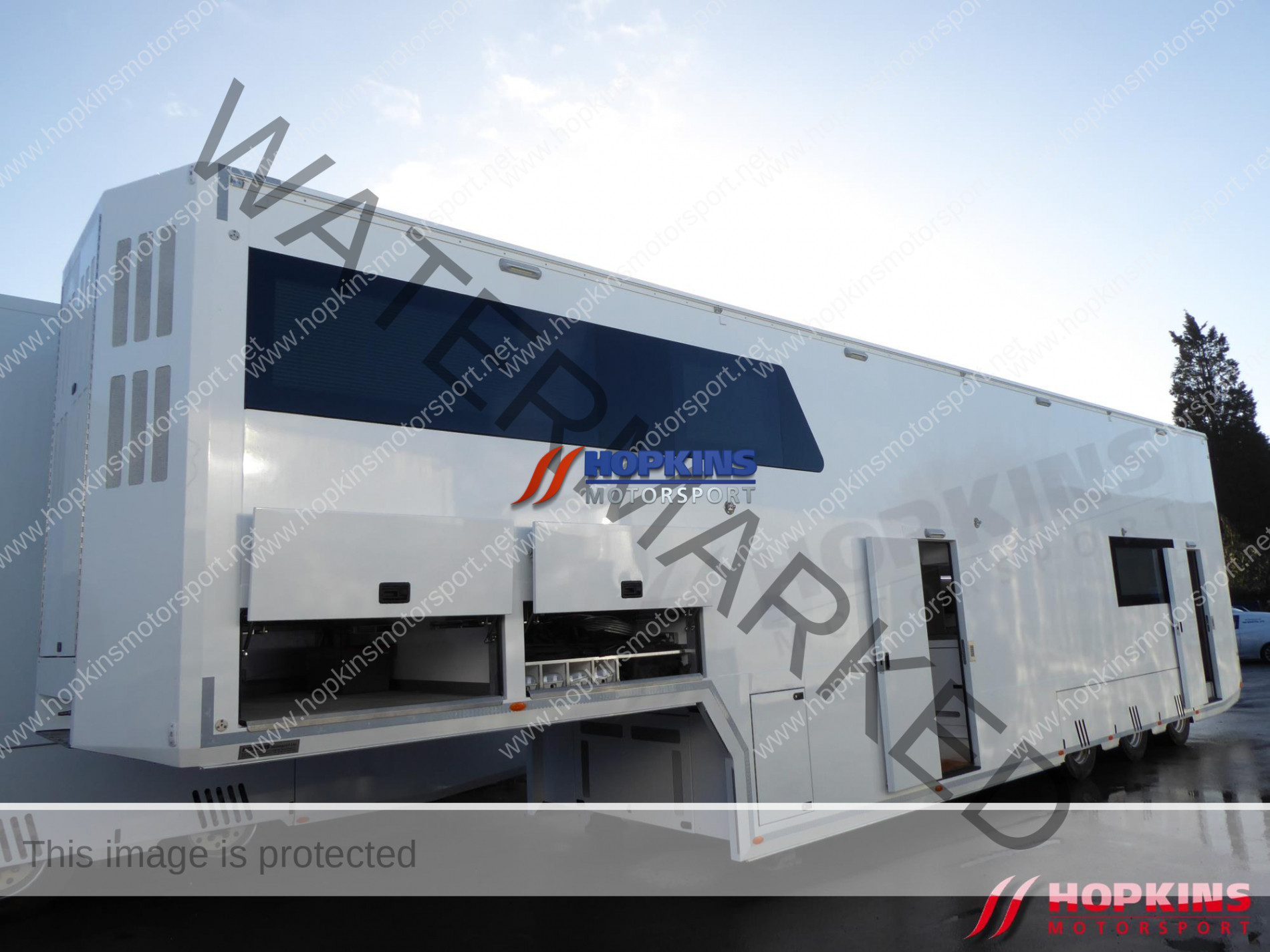

Near Side External

Doors:                         1x HMS side doors on the goose neck with 1x internal step into the management office.

Slide out Platform:     HMS slide out platform below the personnel door to allow for access from side

mounted steps, fitted with coach style handle.

Steps:                          HMS 3mm pressed aluminium steps to locate on the slide out platform or to

locate on the side of the truck without the platform.

Handrails:                   Stainless steel hand rail to locate on the side of steps and also a rotating top hand

rail for the slide out platform that will flat pack for travelling.

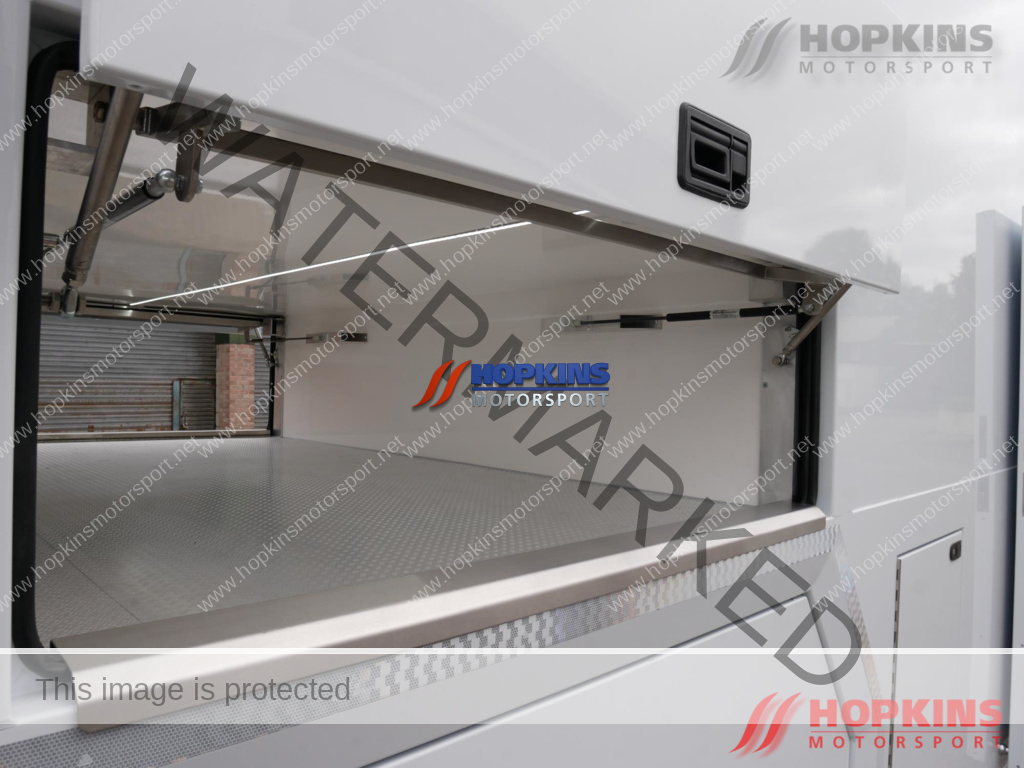

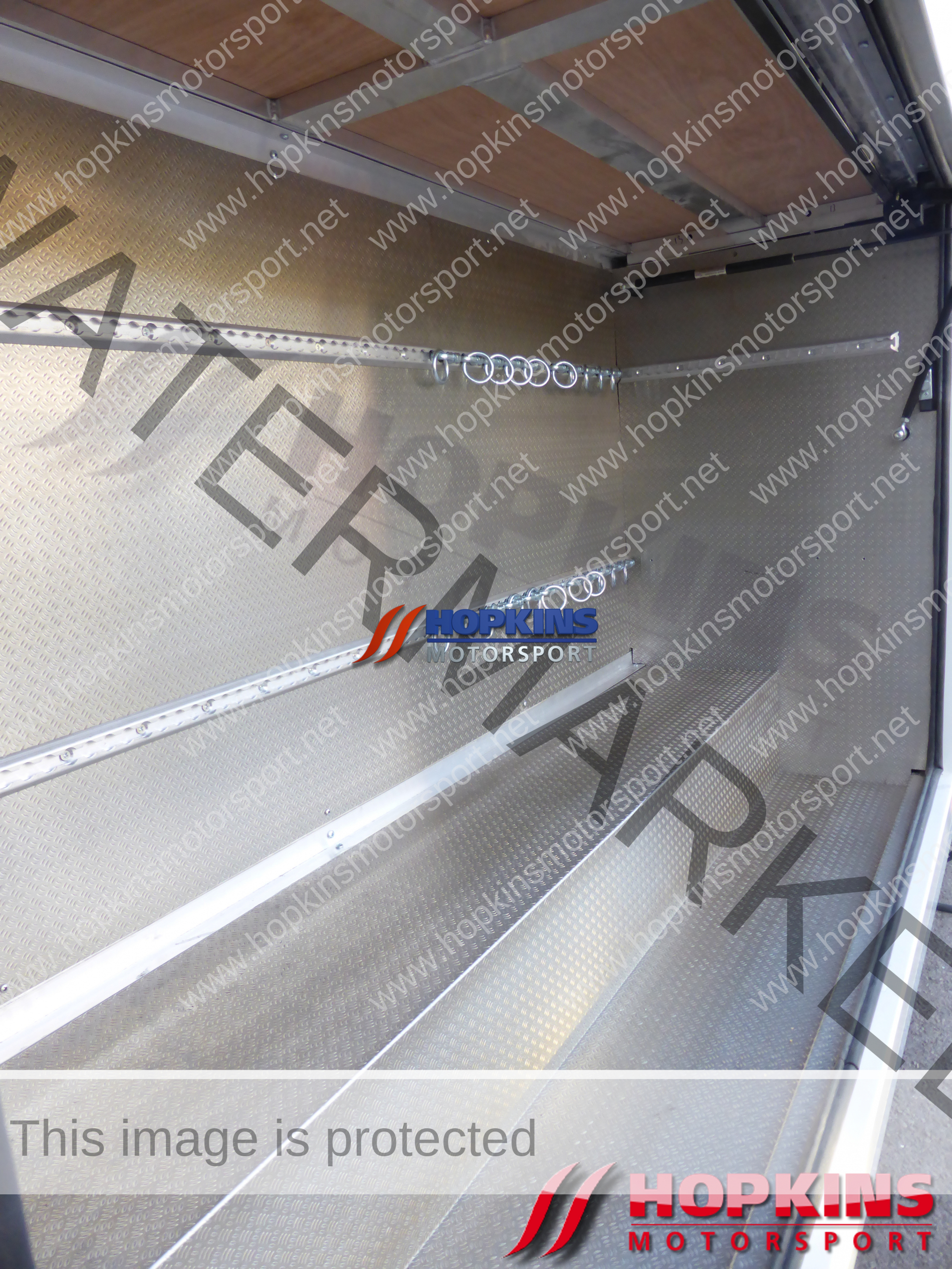

Neck Lockers:            1x locker on the goose neck of the trailer, length 1450 x 500, coach style up & over door.

The locker will be used for the storage of the steps and handrails

Doors:                         1x HMS side doors after the goose neck with 1x internal step into the driver’s room.

Doors:                         1x HMS side door with 1x internal step into the workshop.

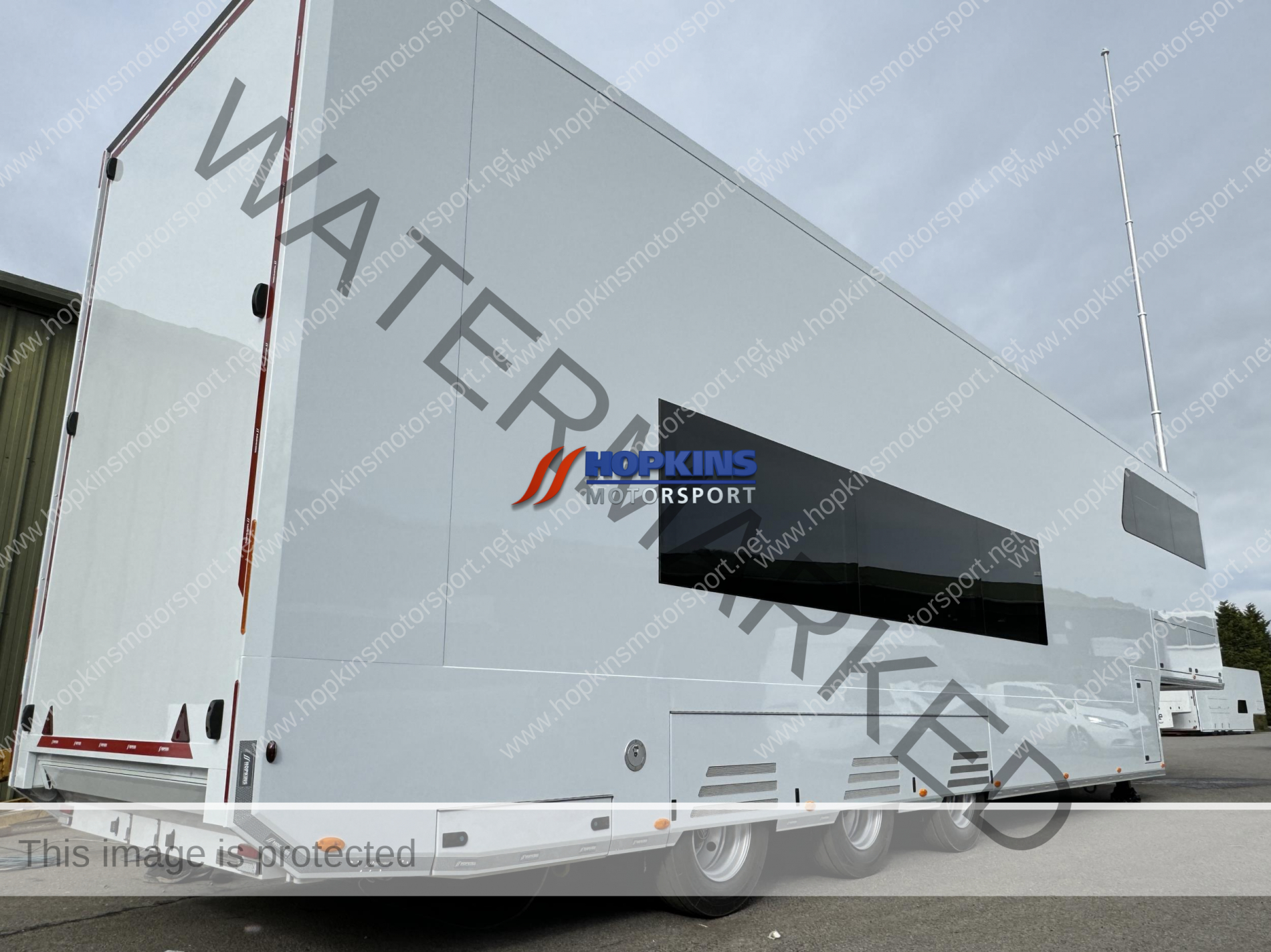

Off Side External

Neck Lockers:             1x locker door length approx 2850mm x 500mm

Internally the roof will be finished in stucco aluminium, the roof panels will be bolted in for access to various power and air cables.  Below the goose neck (where the tractor unit backs under) roof panels finished in 3mm aluminium cricket weave.

Other External

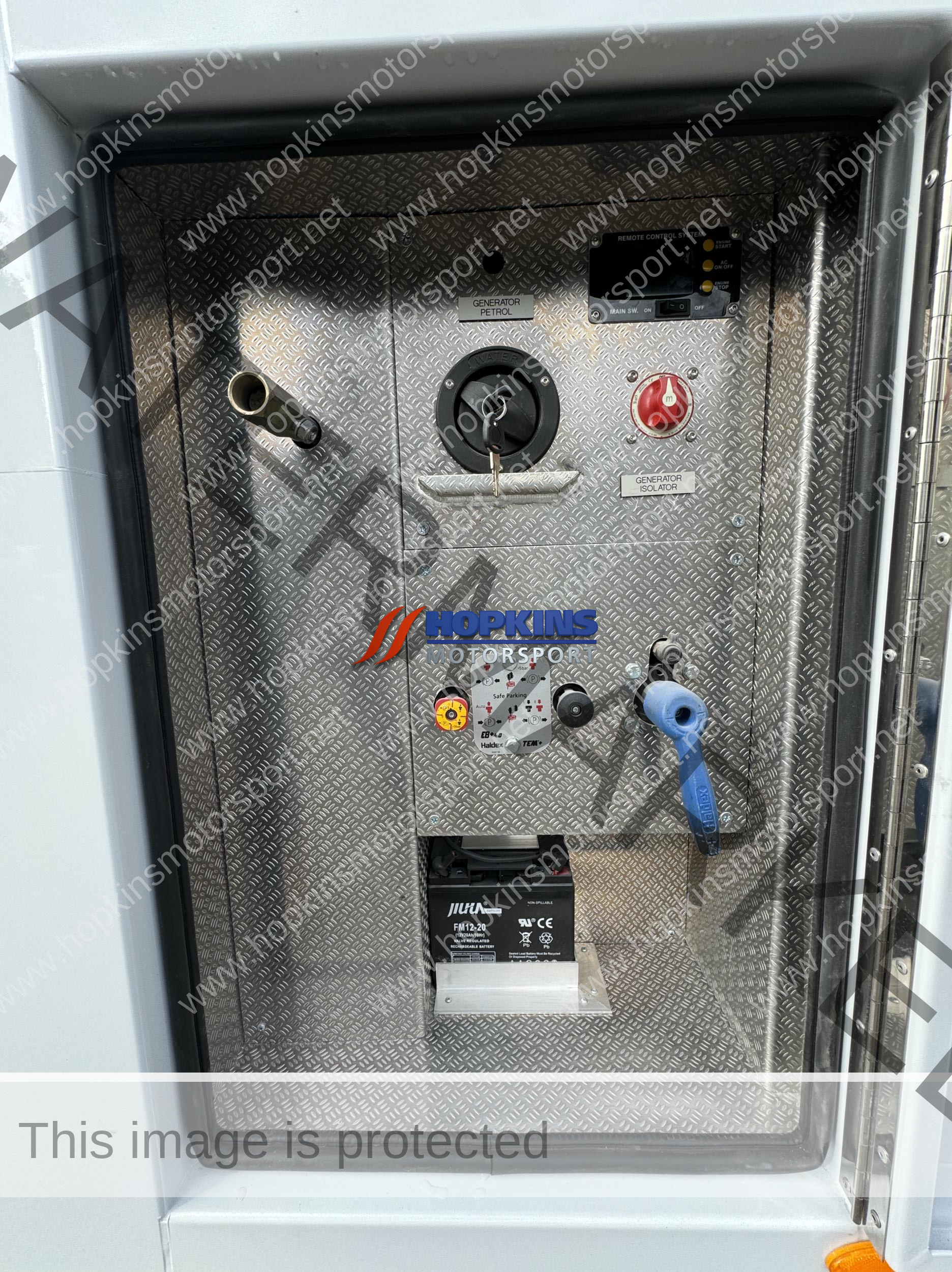

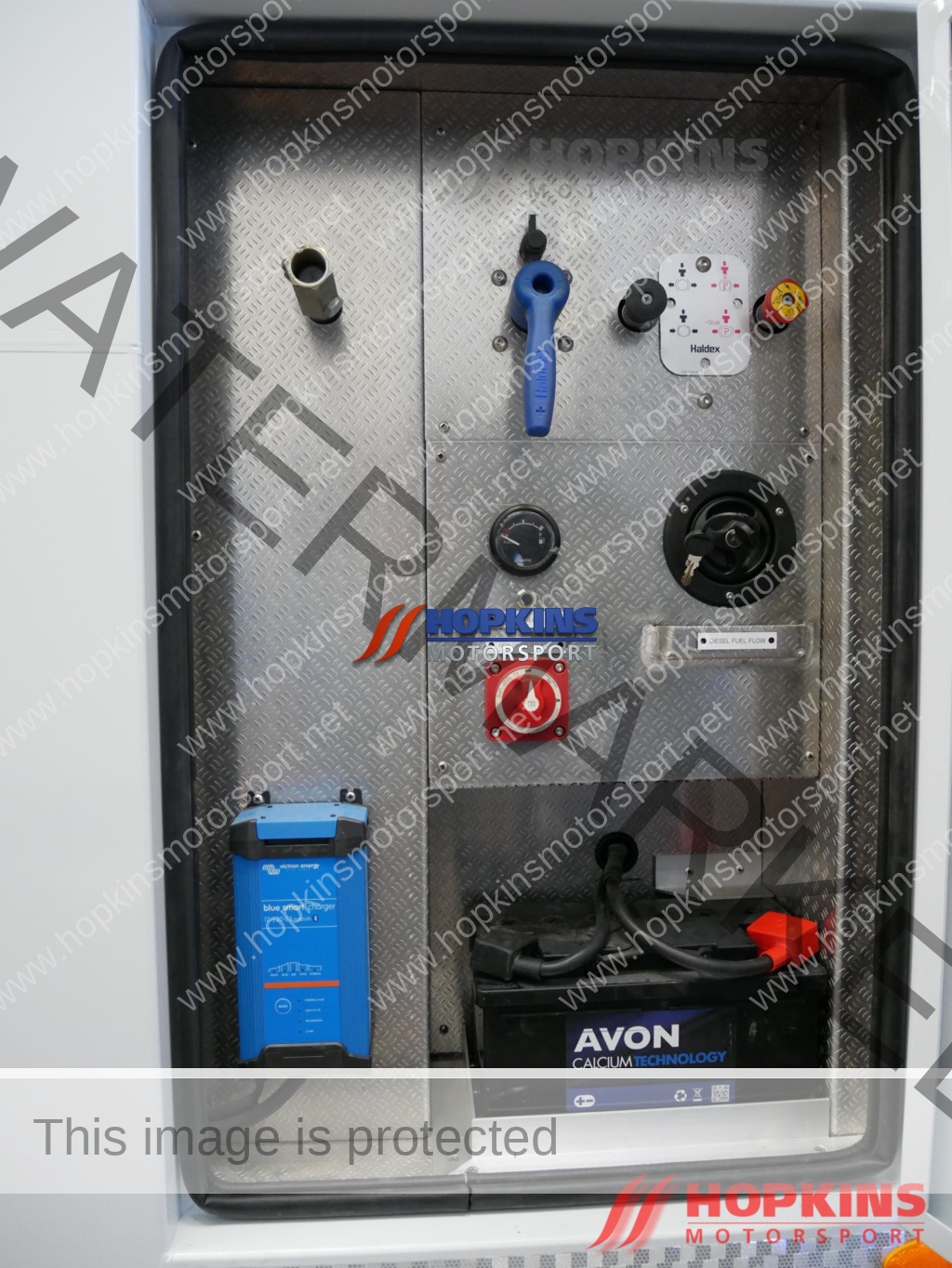

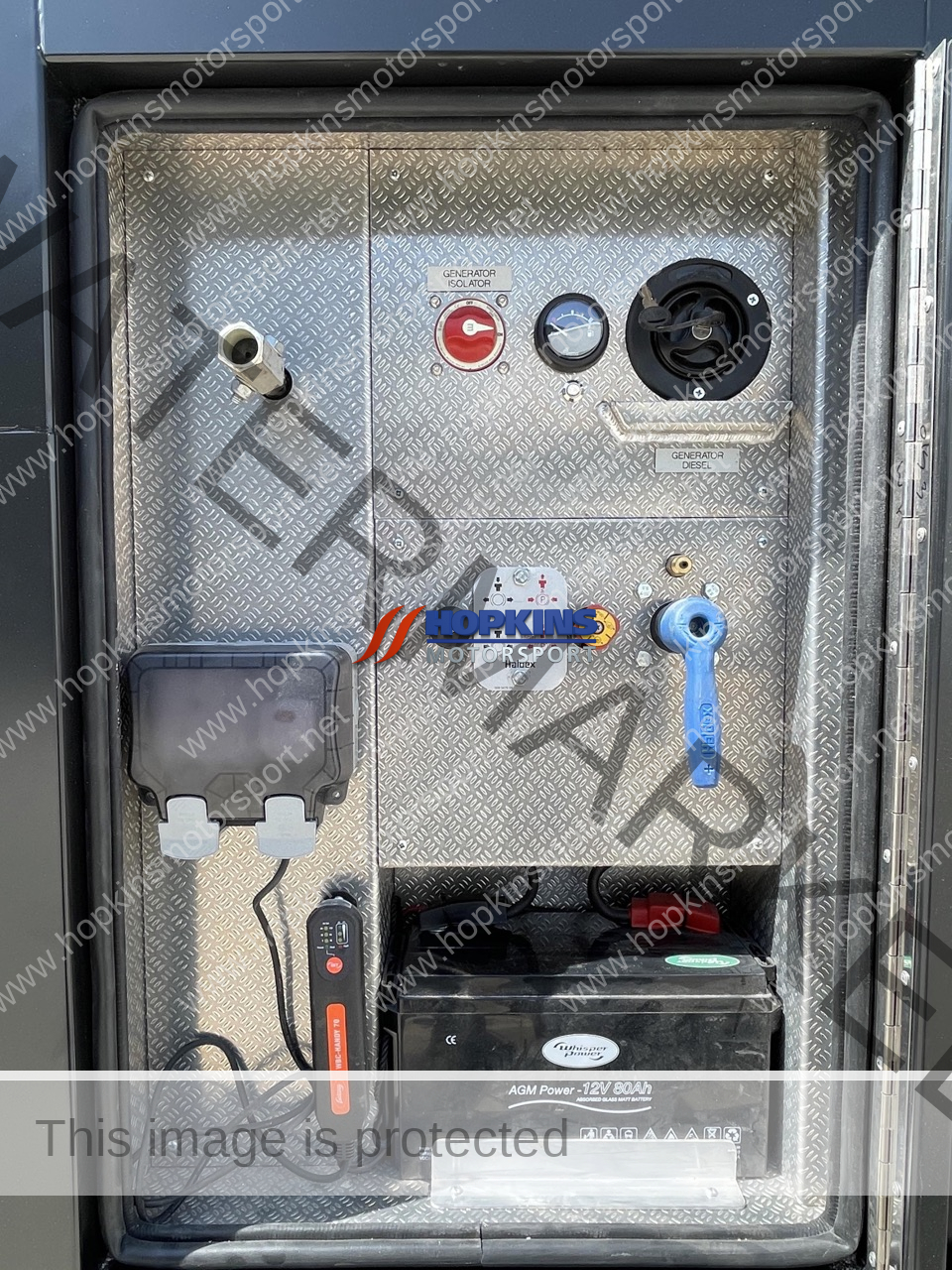

Generator compartment:         The door and surrounding panels will be finished in 3mm aluminium painted to suit, the door will open on gas struts, the locker will be fully lined in 10mm lead insulation to reduce noise into the trailer and then fully lined in silver stucco aluminium, a bespoke fuel tank will be mounted outside the generator compartment but still behind the neck panels.

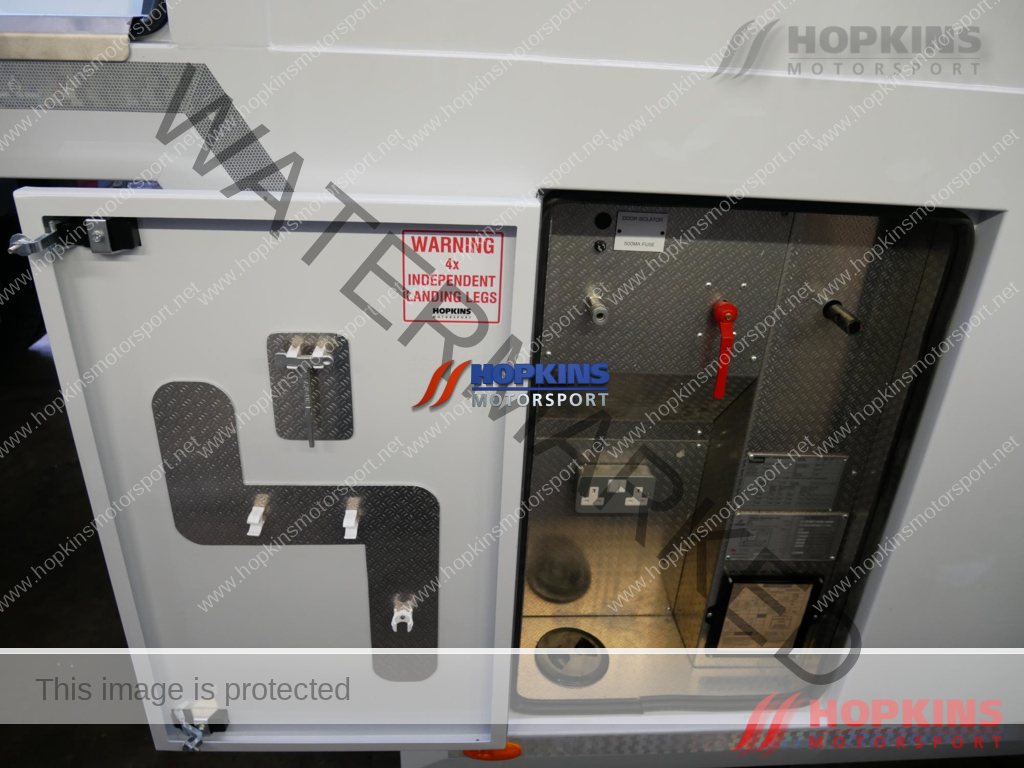

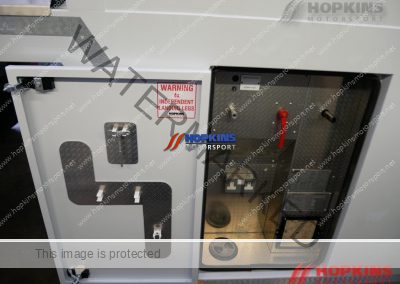

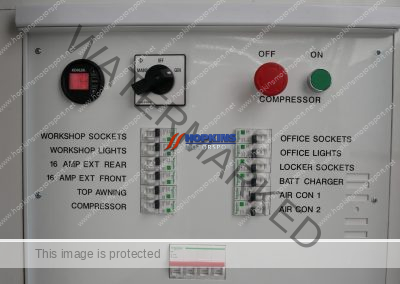

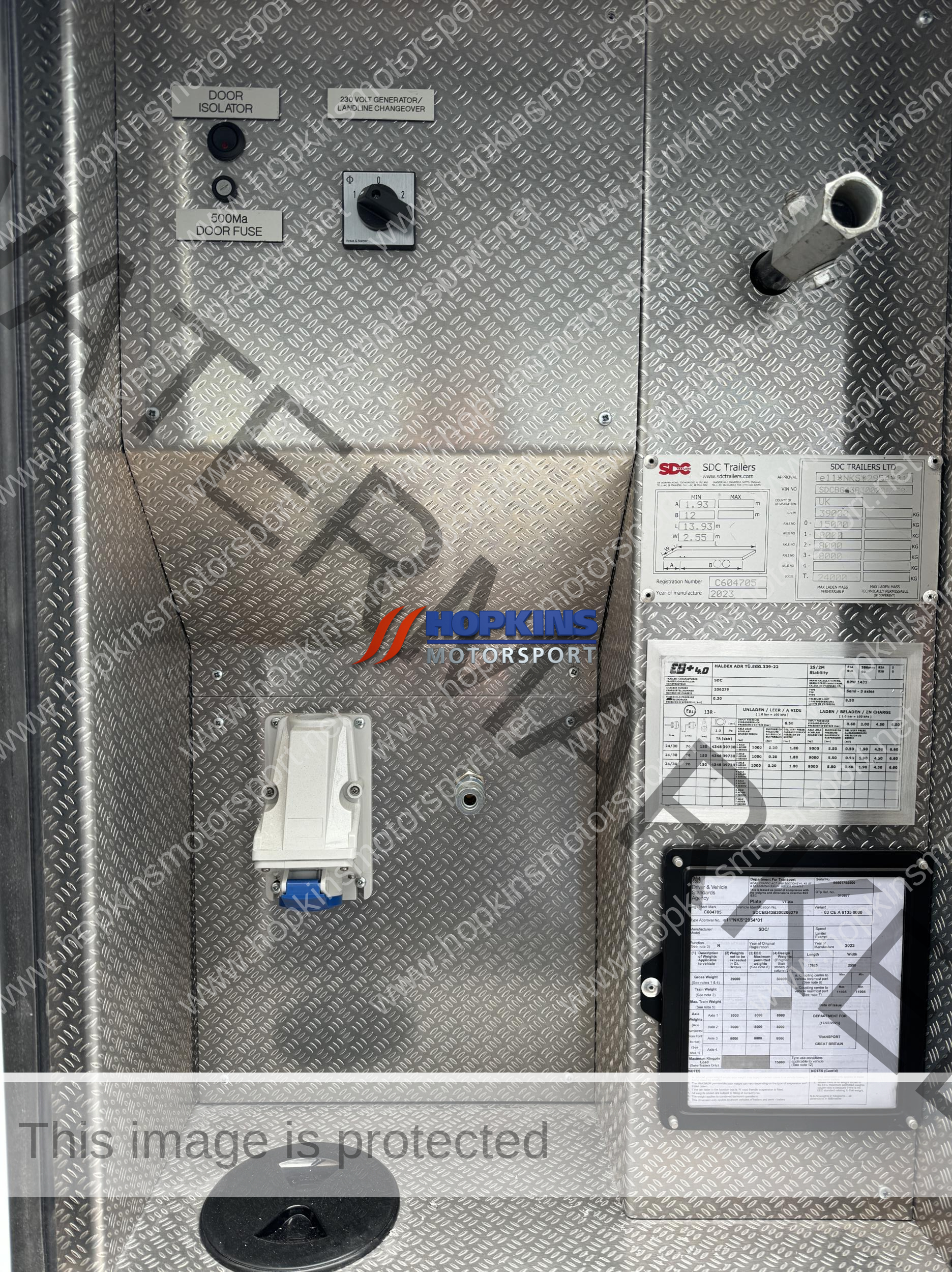

Services locker:          Hinged side access locker on the right hand side of the generator compartment.  This locker will be finished in 3mm aluminium cricket weave, the locker will be for all main trailer services including: suspension raise & lower valves, hand brake, front landing leg or stability controls, roof raise and lower controls, two x 32 amp power outlets, two air line outlets.

2^nd External services:  Hinged side access locker on the left hand side of the generator compartment.  This

locker will be finished in 3mm aluminium cricket weave, the generator battery and

ancillaries will be stored in this locker

Wheel arch’s:             3mm aluminium construction hinging on the top edge fluted for air to suit.

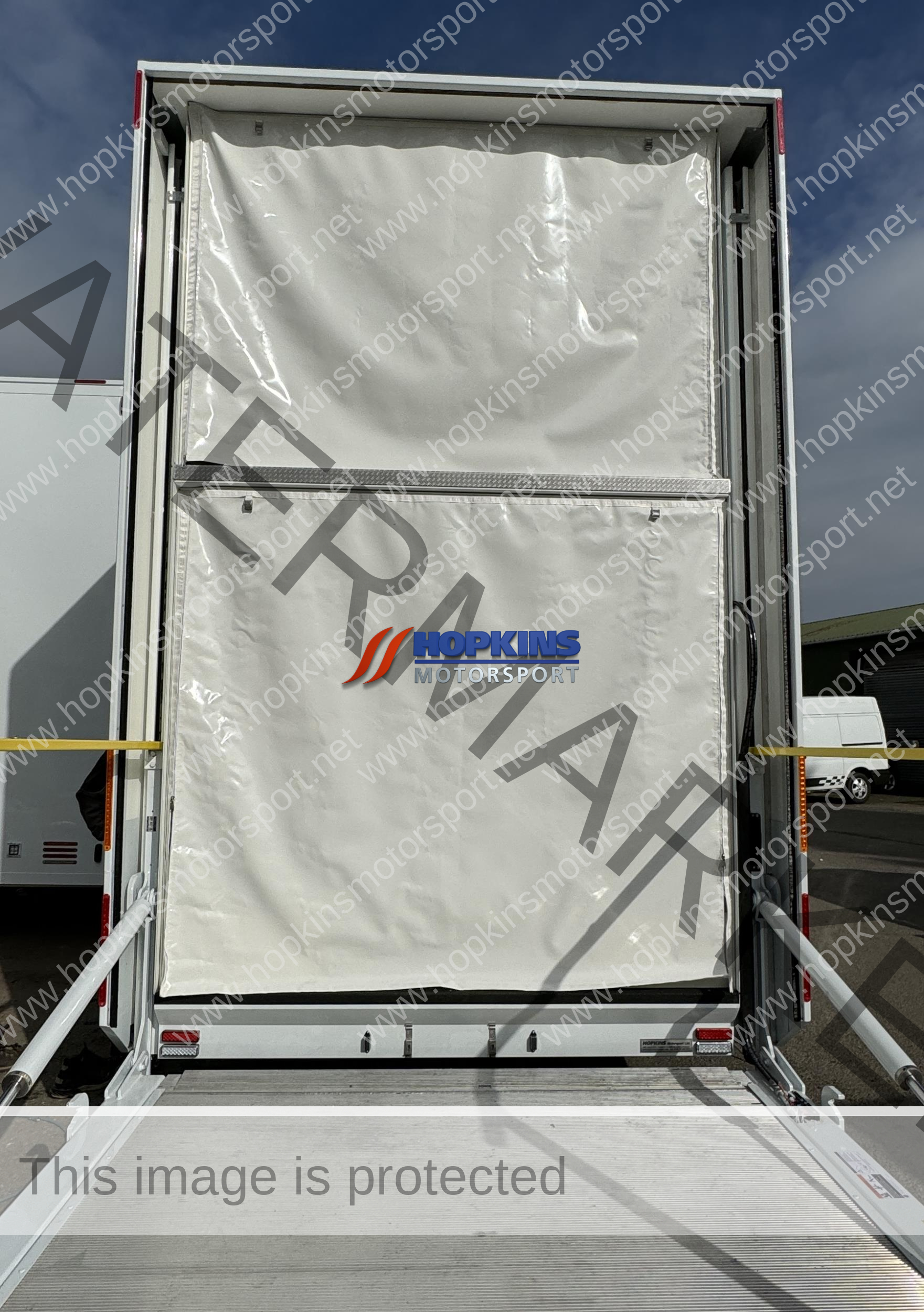

Rear End:                    3x Led lights per side fitted to the side of the lift, all edges chamfered as per the bottom of the truck.

Roof:                           32mm thick insulated panel, gloss white on both sides.

Flag poles:                  x4

Windows:                    1x over fit tinted panel per side with black out to two internal windows.

External power:          3 x power and air outlets at roof height.

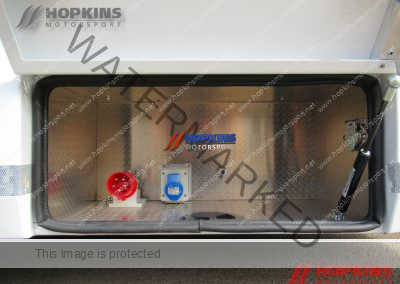

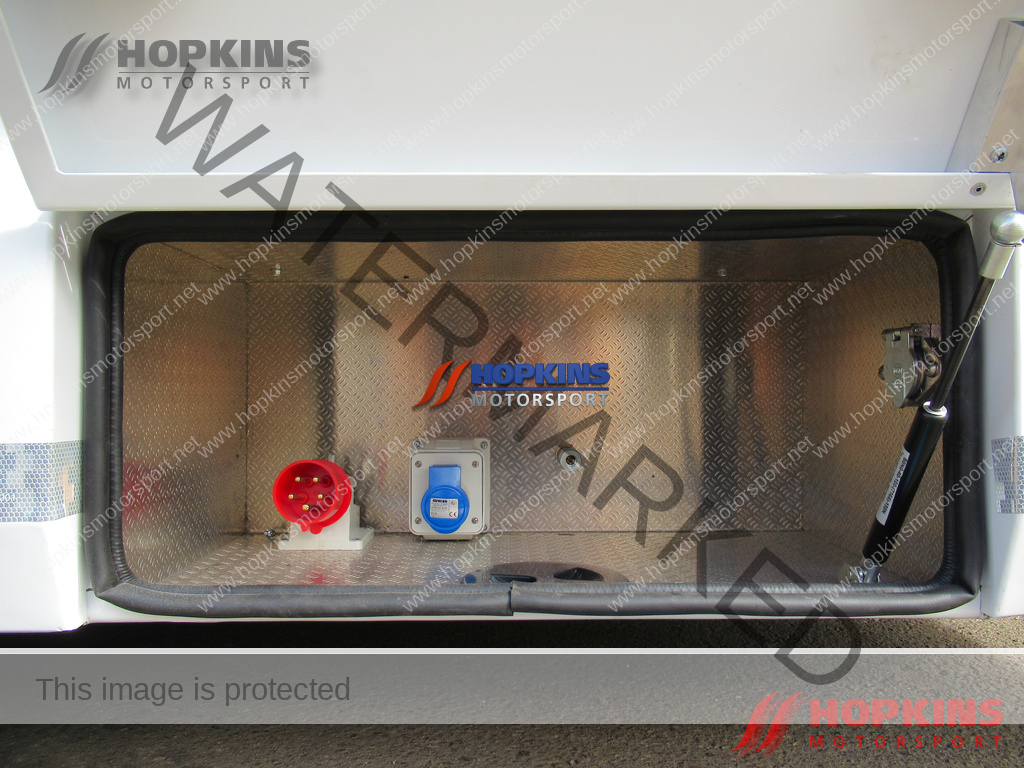

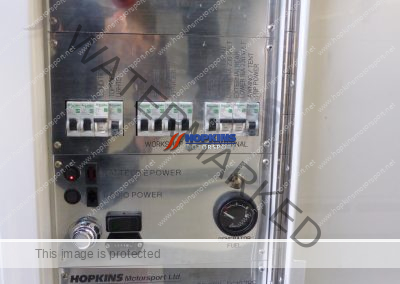

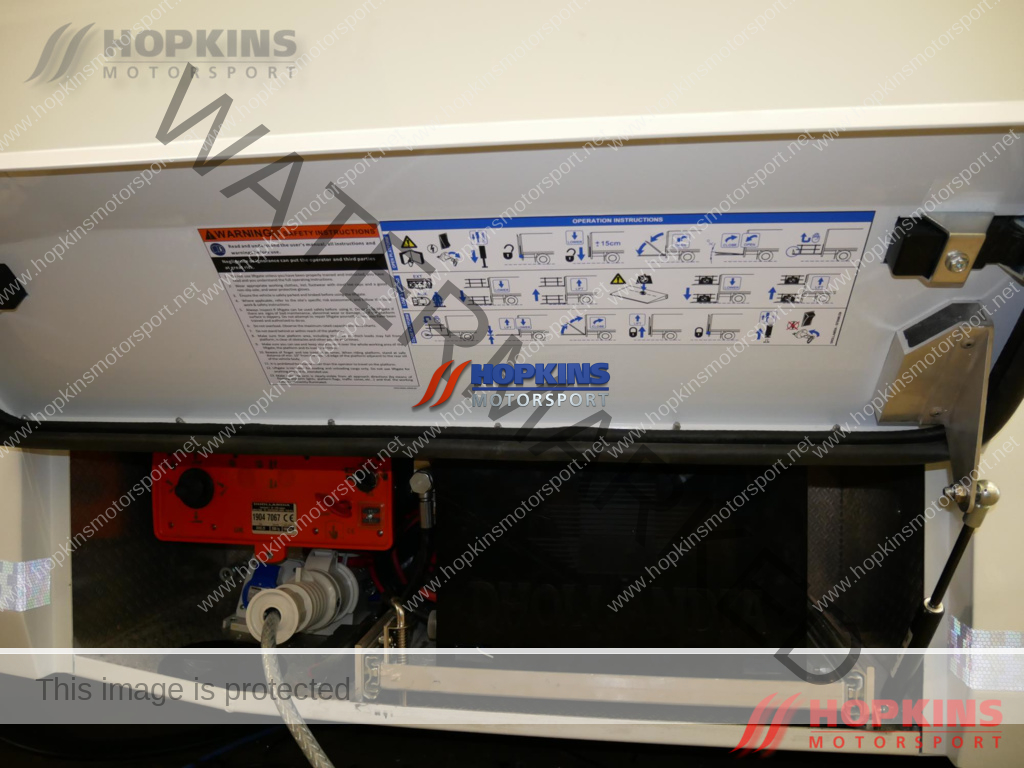

Power Outlet:              A larger locker door will be fitted at the rear on one side for access to all Power input and output cables, also TV antenna and air, this locker will be fitted to all trailers even if not required.

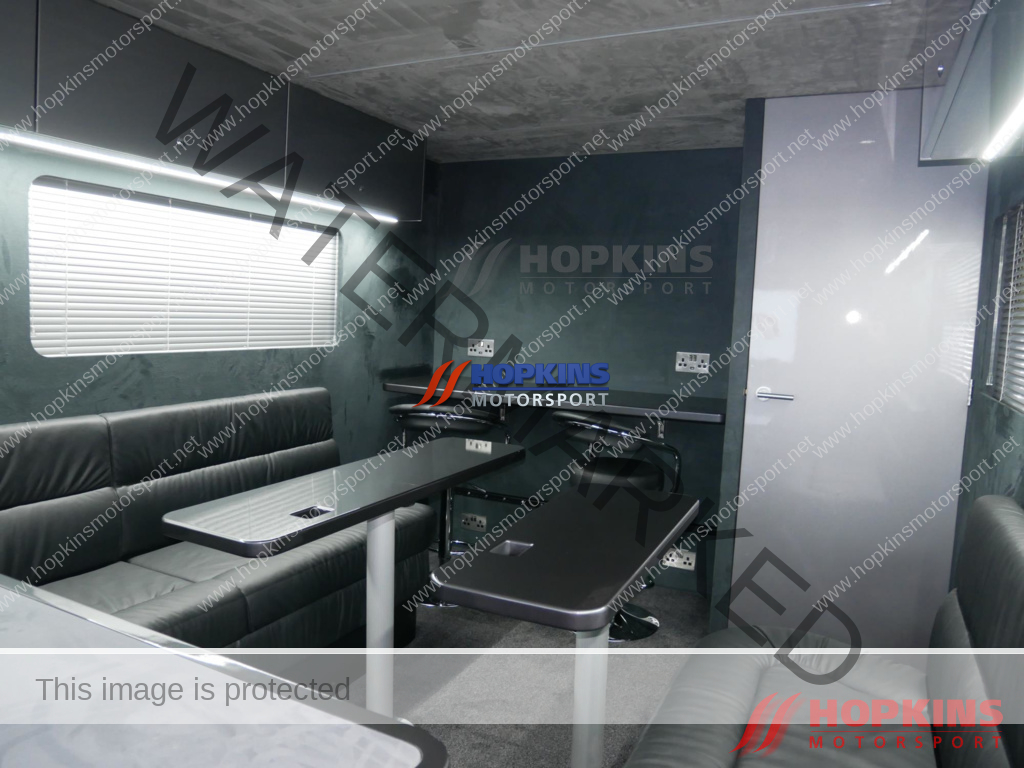

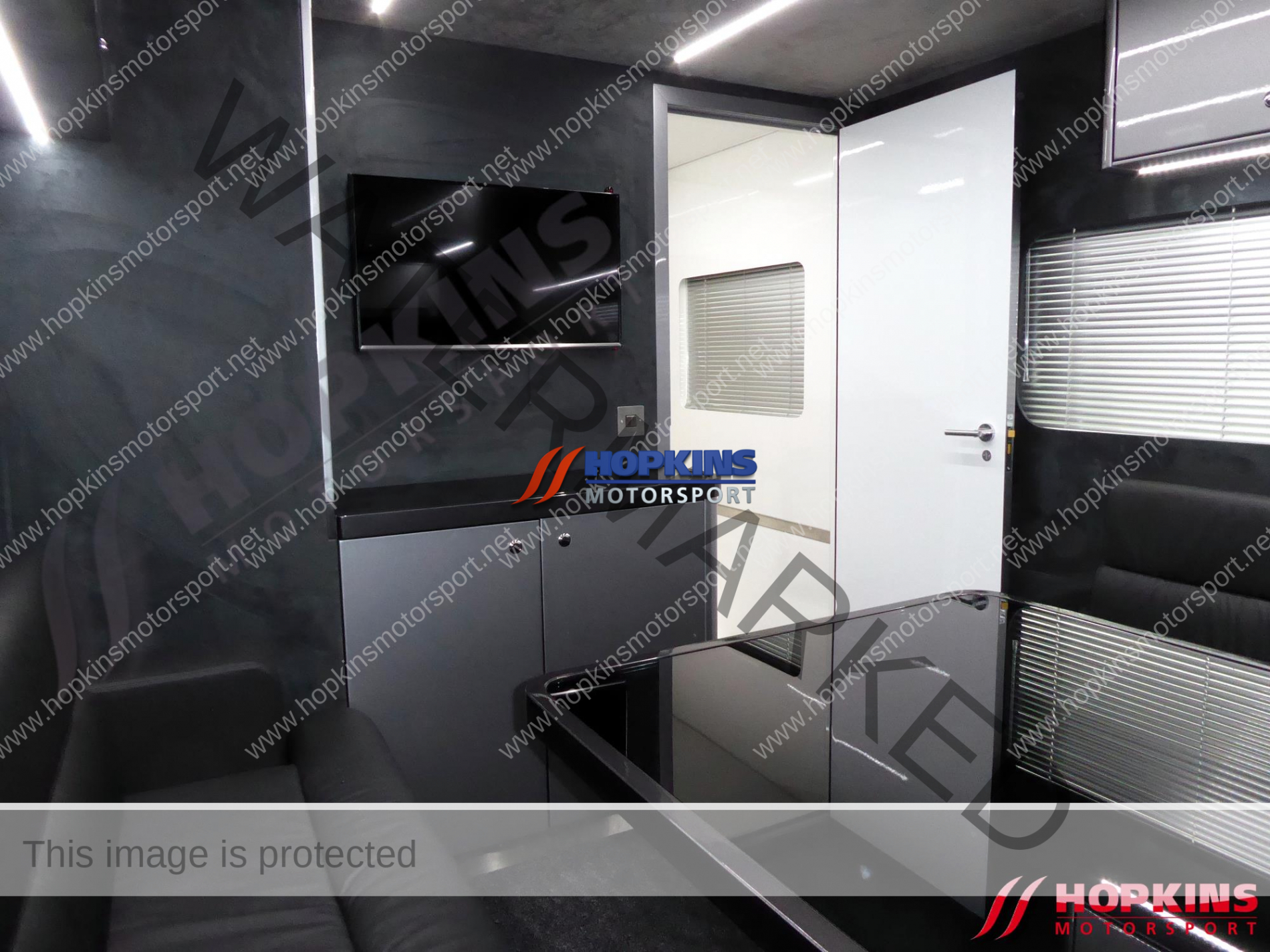

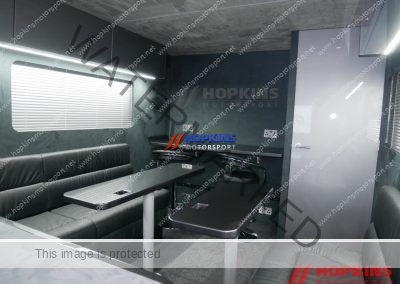

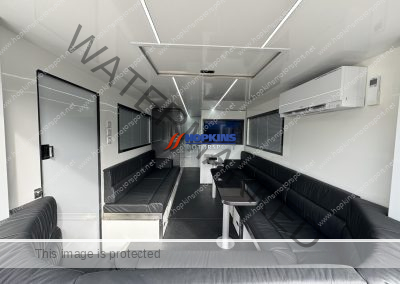

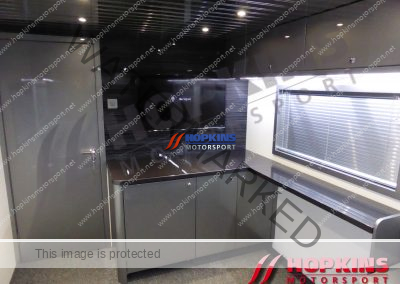

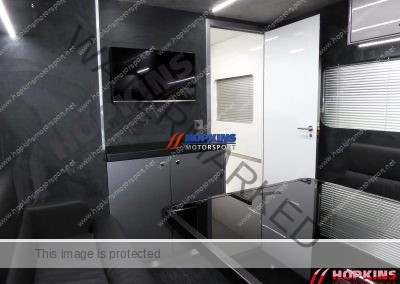

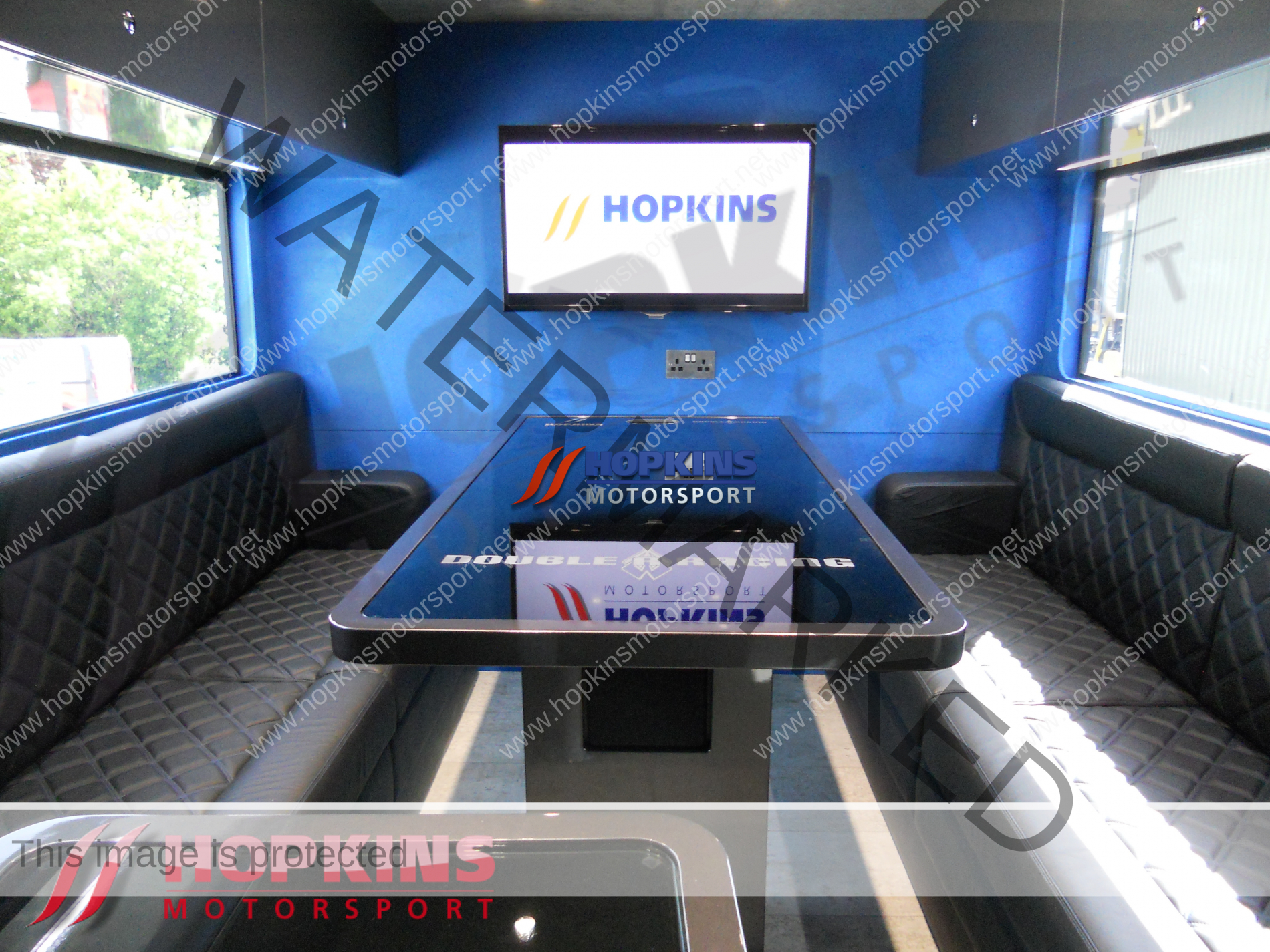

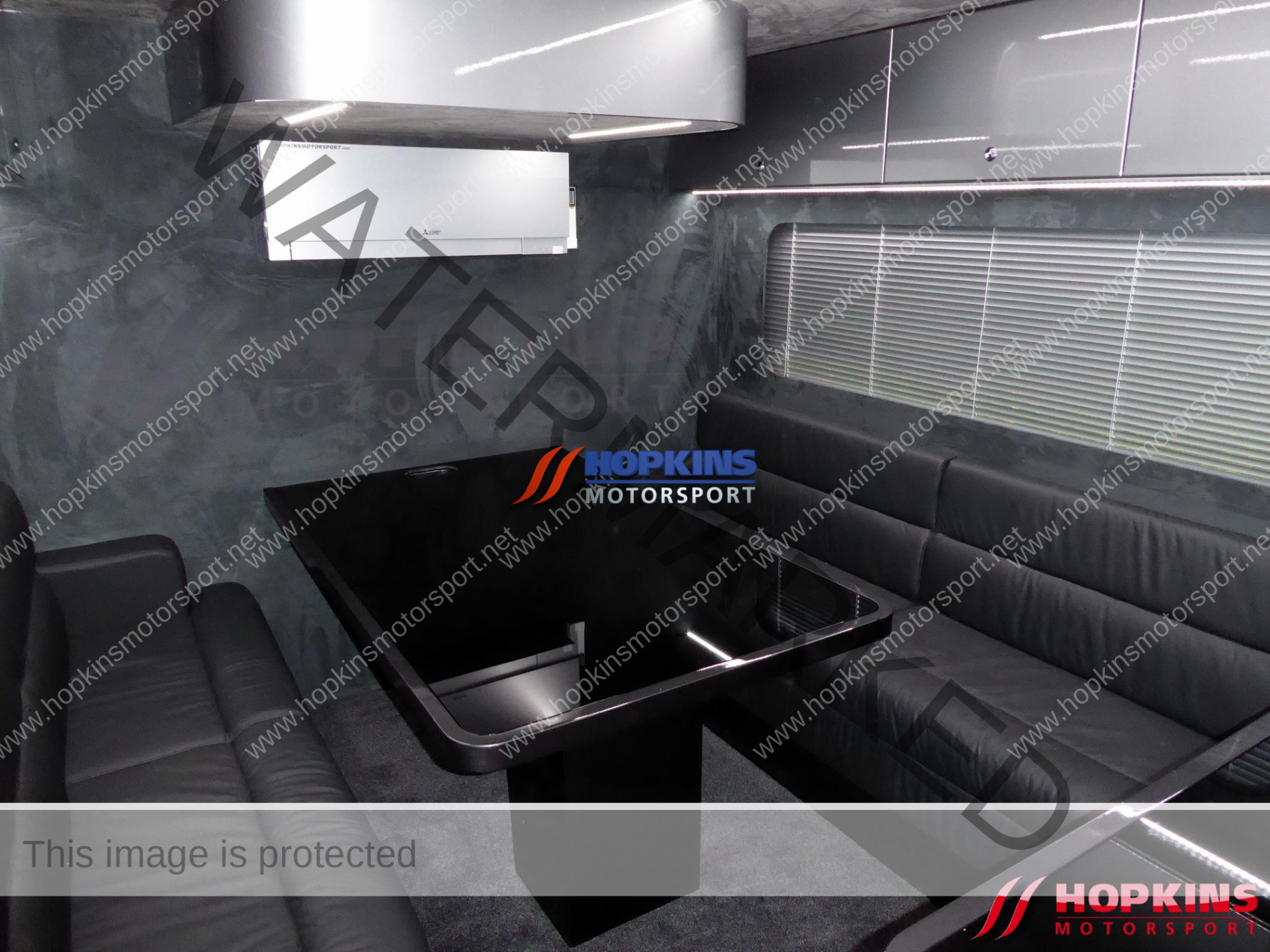

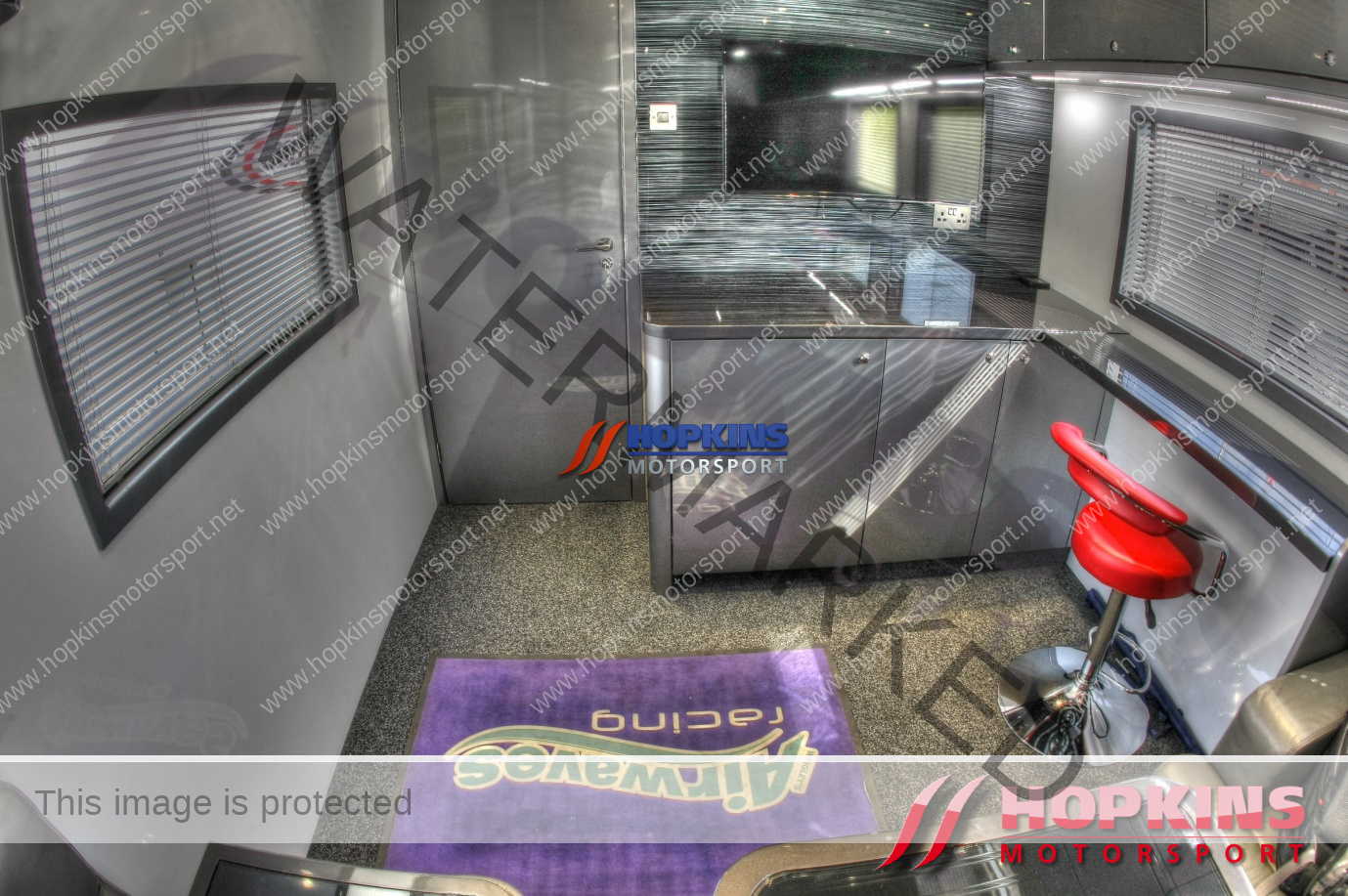

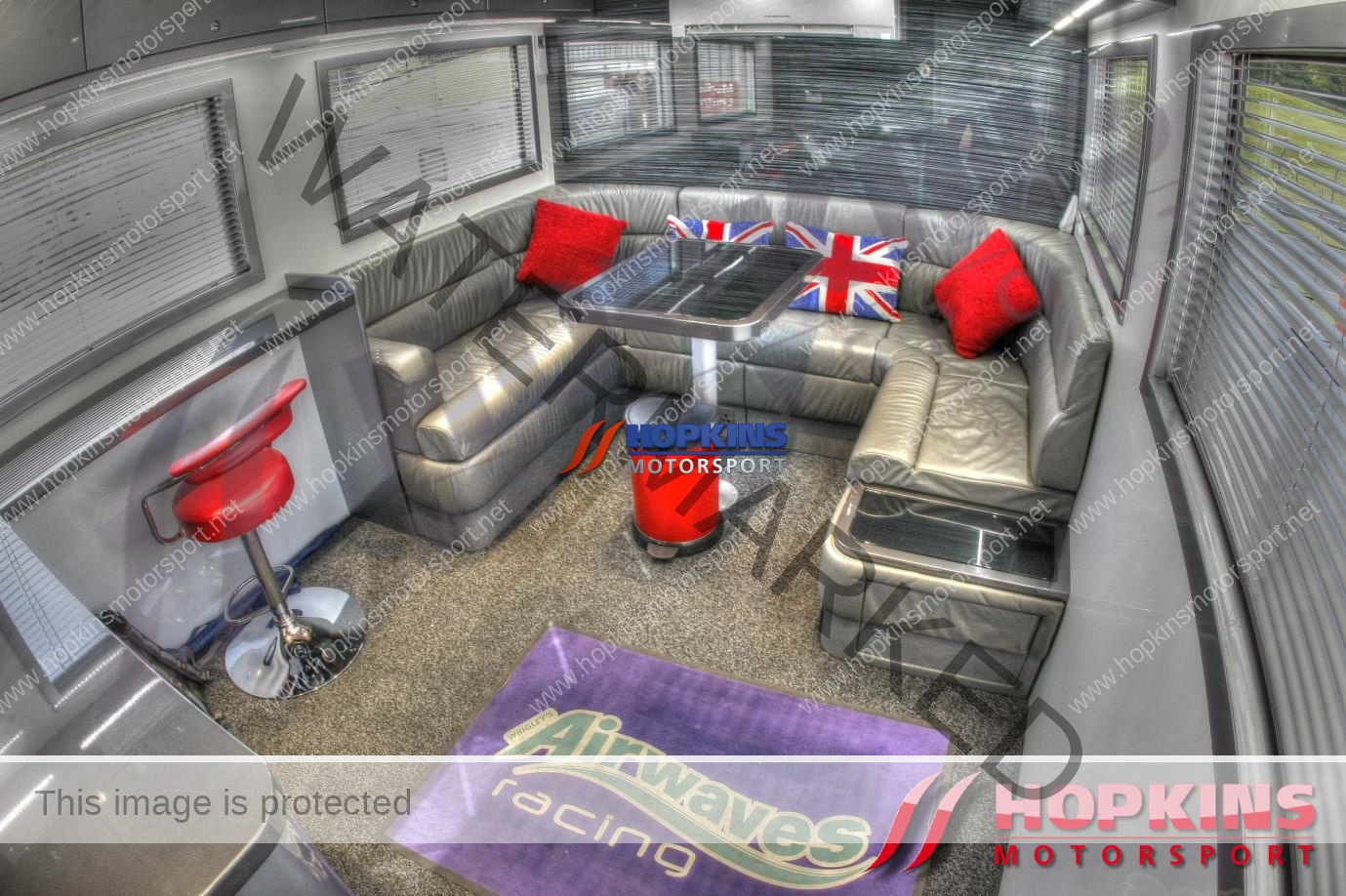

Walls:                          Grey Pamplona sued.
Windows:                    1x window per side   Blinds recessed into the walls
Seating:                       Bench seating finished in Black leather.
Seat bases:                 Foam backed black leatherette.
Table:                          Large fixed management table with holes for power & data cables
2^ndtable:                     Engineers table that is removable to increase the floor space.
Ceiling:                       Silver slotted panelling.
Floor finish:                 Black Flec

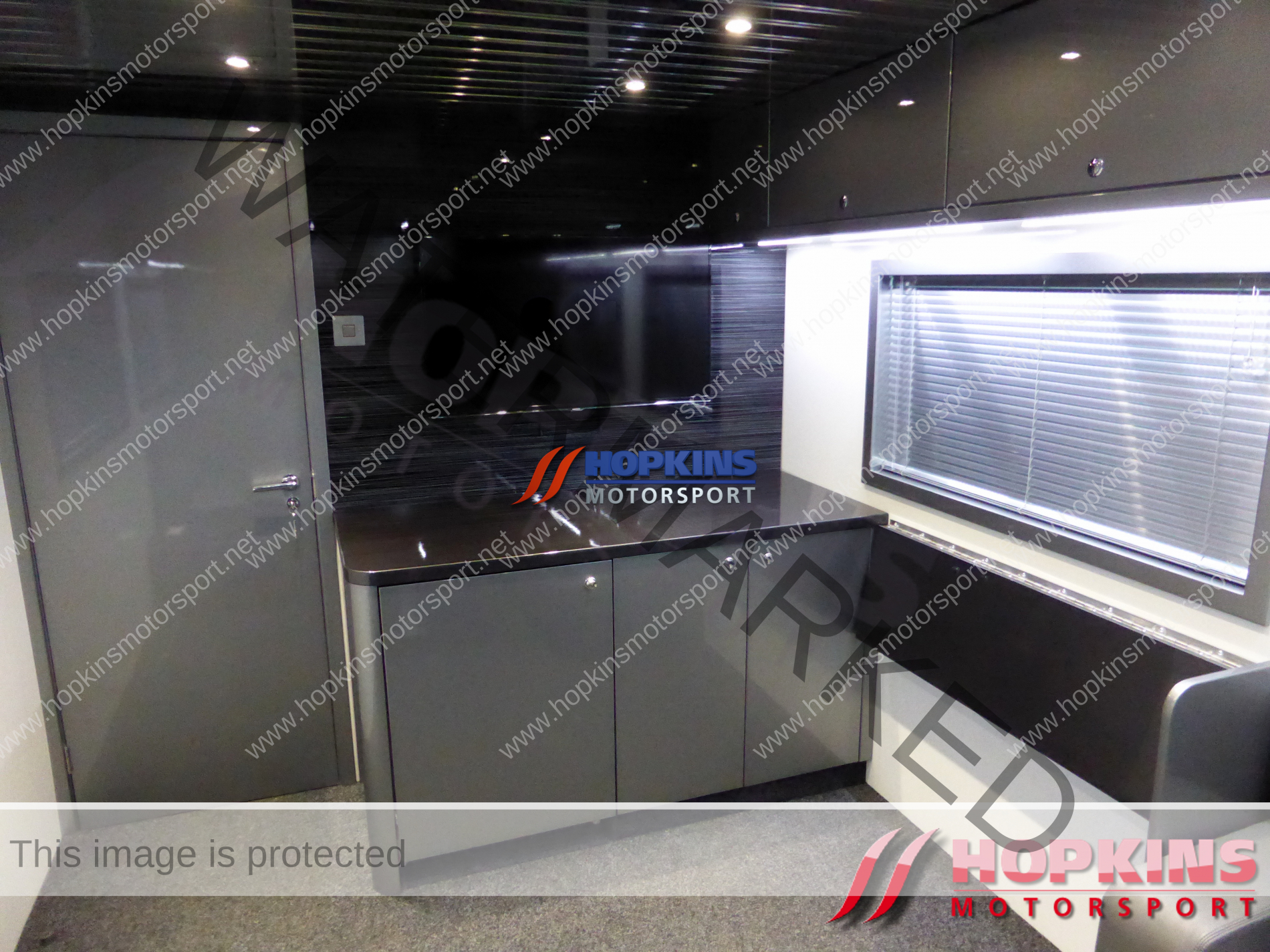

Overhead units:          U shaped overhead units in high gloss black with recessed lighting set into the bases of the units all corners radiused.
Base units:                  High gloss black  base units on the bulkhead wall, 1 x corner wardrobe.
Work tops:                  Black worktops & table top with power points to suit.
Access:                        Side door with removable steps.
Air conditioning:        Mitsubushi
Television:                  Mounted above units on bulkhead wall or above the table?.
Satellite:                      Self seeking
Surround Sound:         No

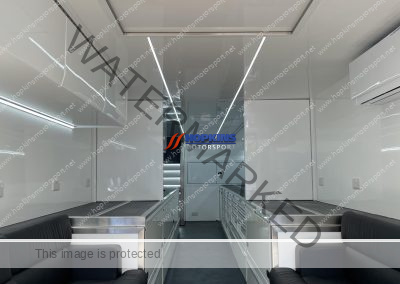

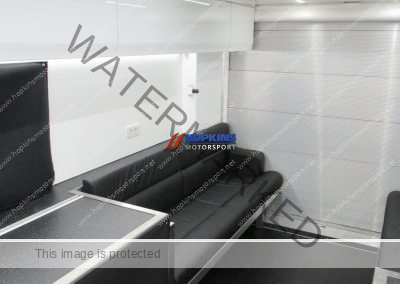

Overview:

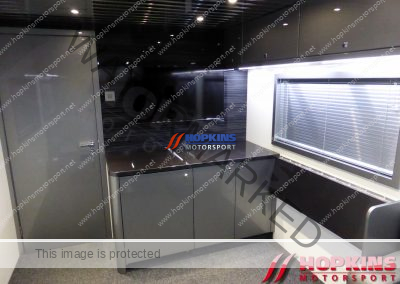

Seating on one sides for up to three people, removable table for engineers if required, overhead units for driver’s helmets, 1 x wardrobe, 1 fridge. The seating will also hinge to form 2 beds or fold over centre to allow this room to be used for bulk storage during transit.

Walls:                          Grey wipe down.
Floor:                          Black flec carpet.
Ceiling:                       White with recessed lighting.
Windows:                    No
Seating:                       Bench seating finished in Black leather with storage below for drivers bags.
Seat bases:                  Open.
Fridge:                        1x 500mm
Wardrobe:                   1x 500mm wardrobes full height, 1 x 500mm above the fridge.
Overhead Units:          3 drivers lockers height approx 900 width approx 500mm each
Access:                        External side door
Television:                  32” LCD TV mounted centrally.
Air-Con:                      Yes

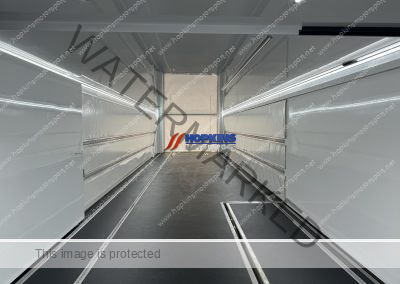

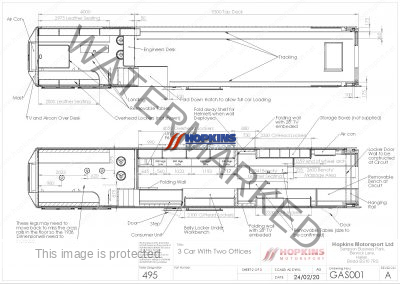

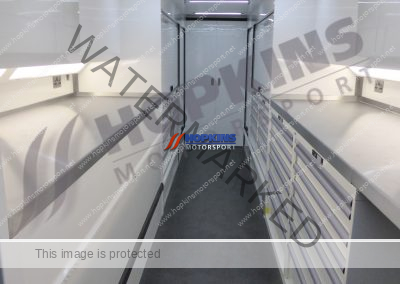

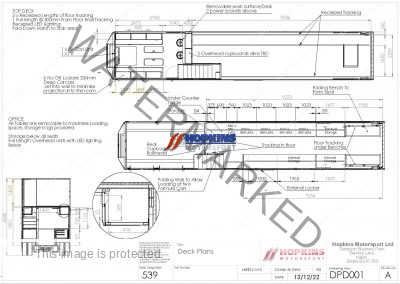

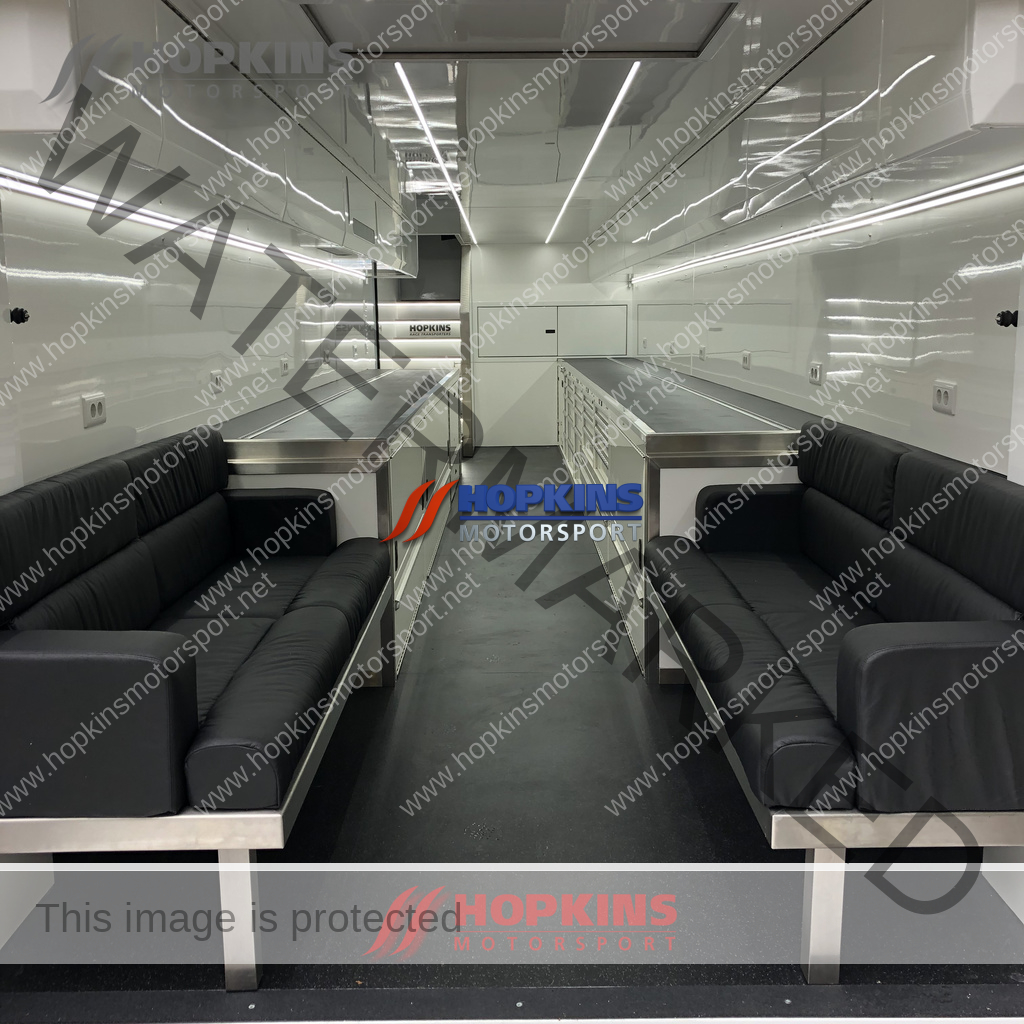

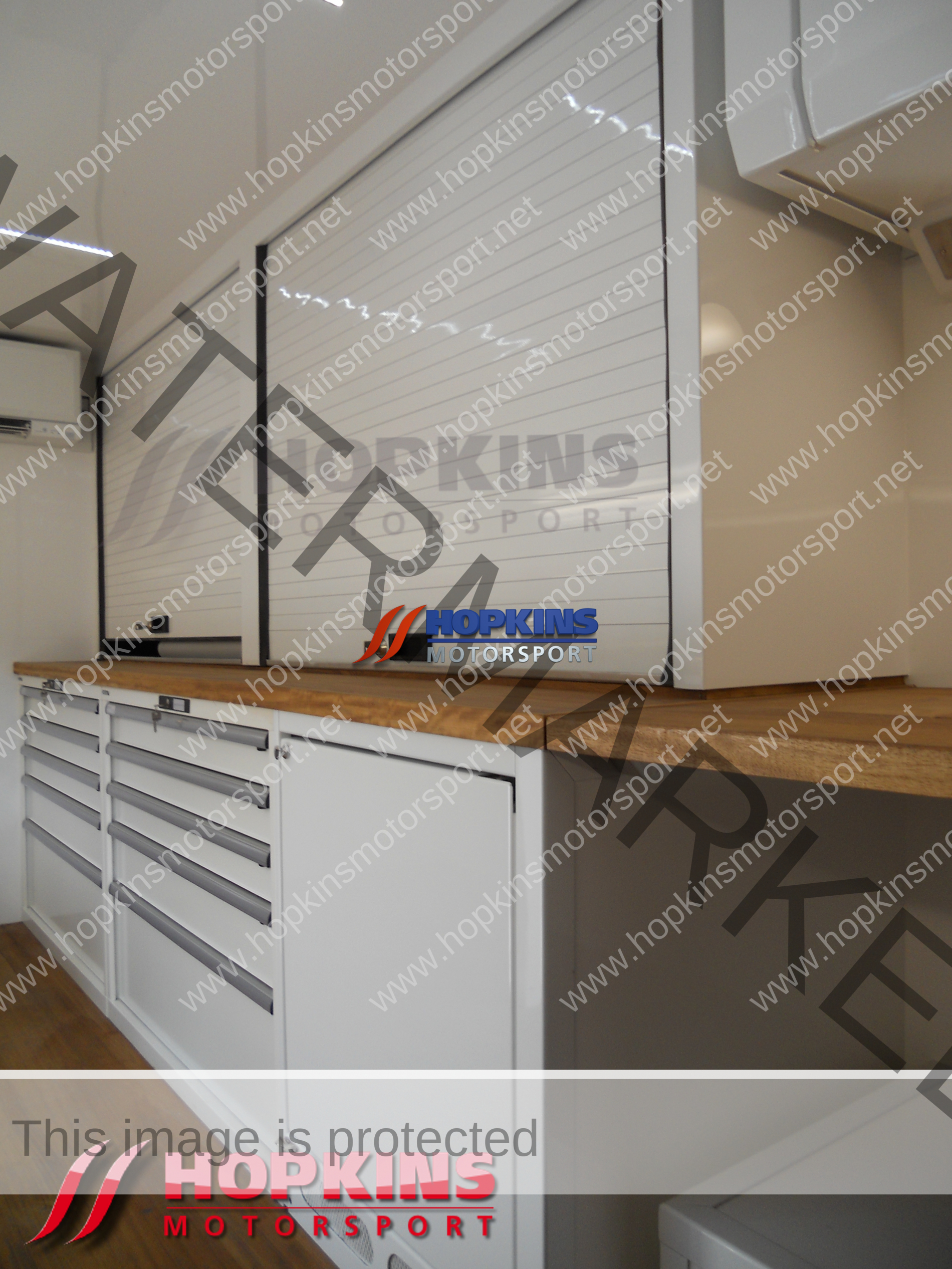

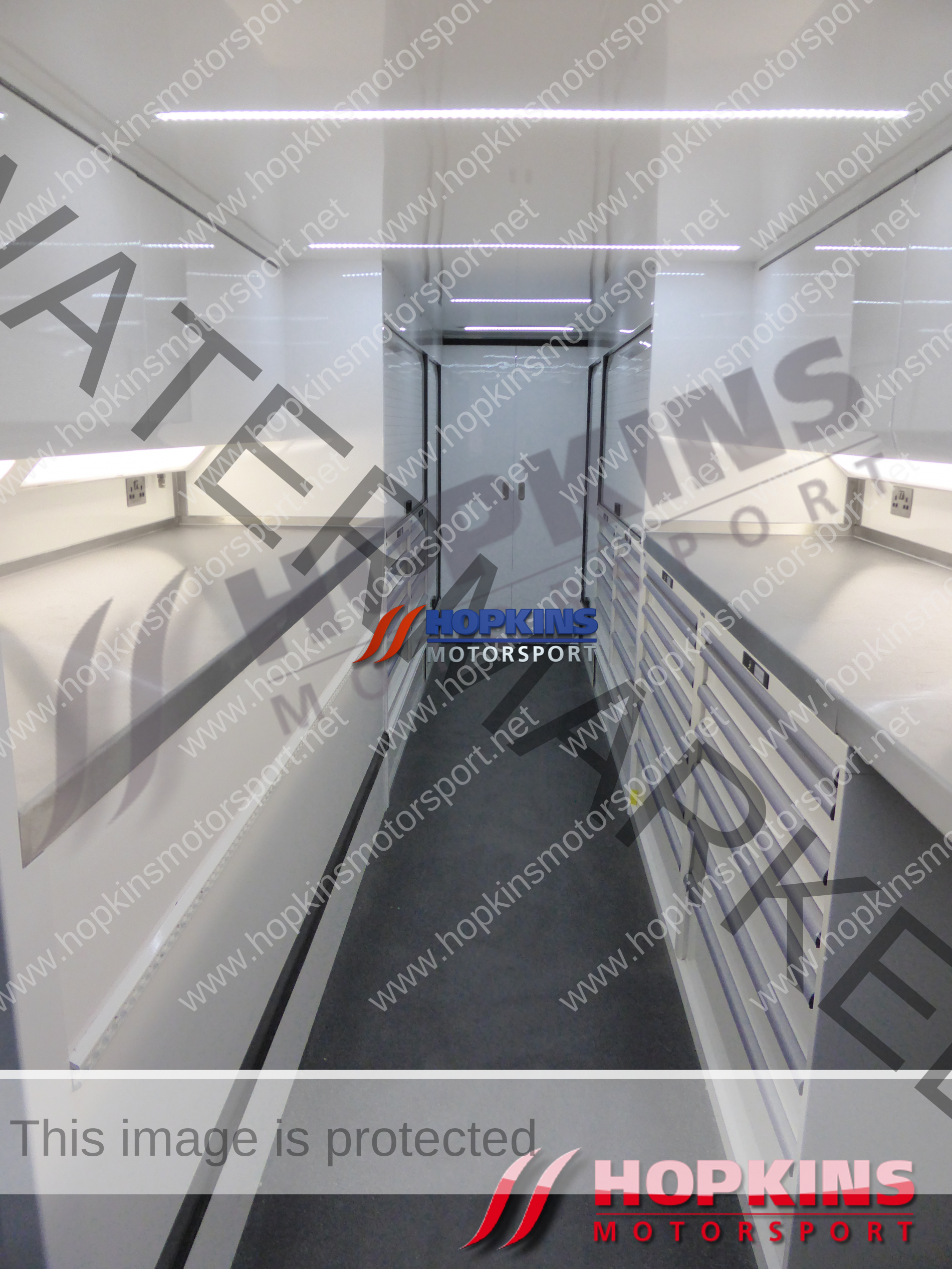

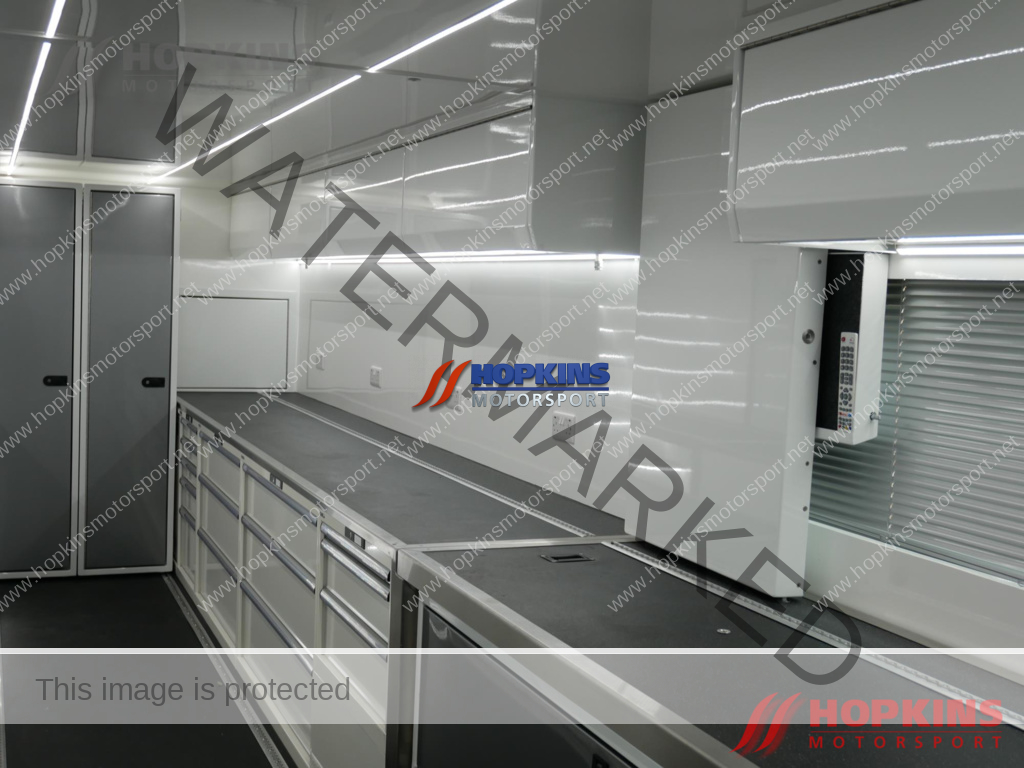

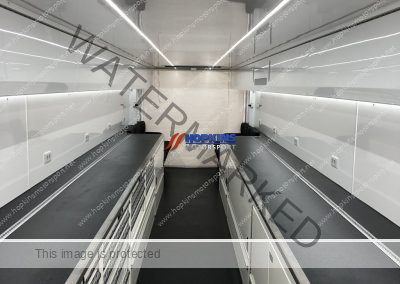

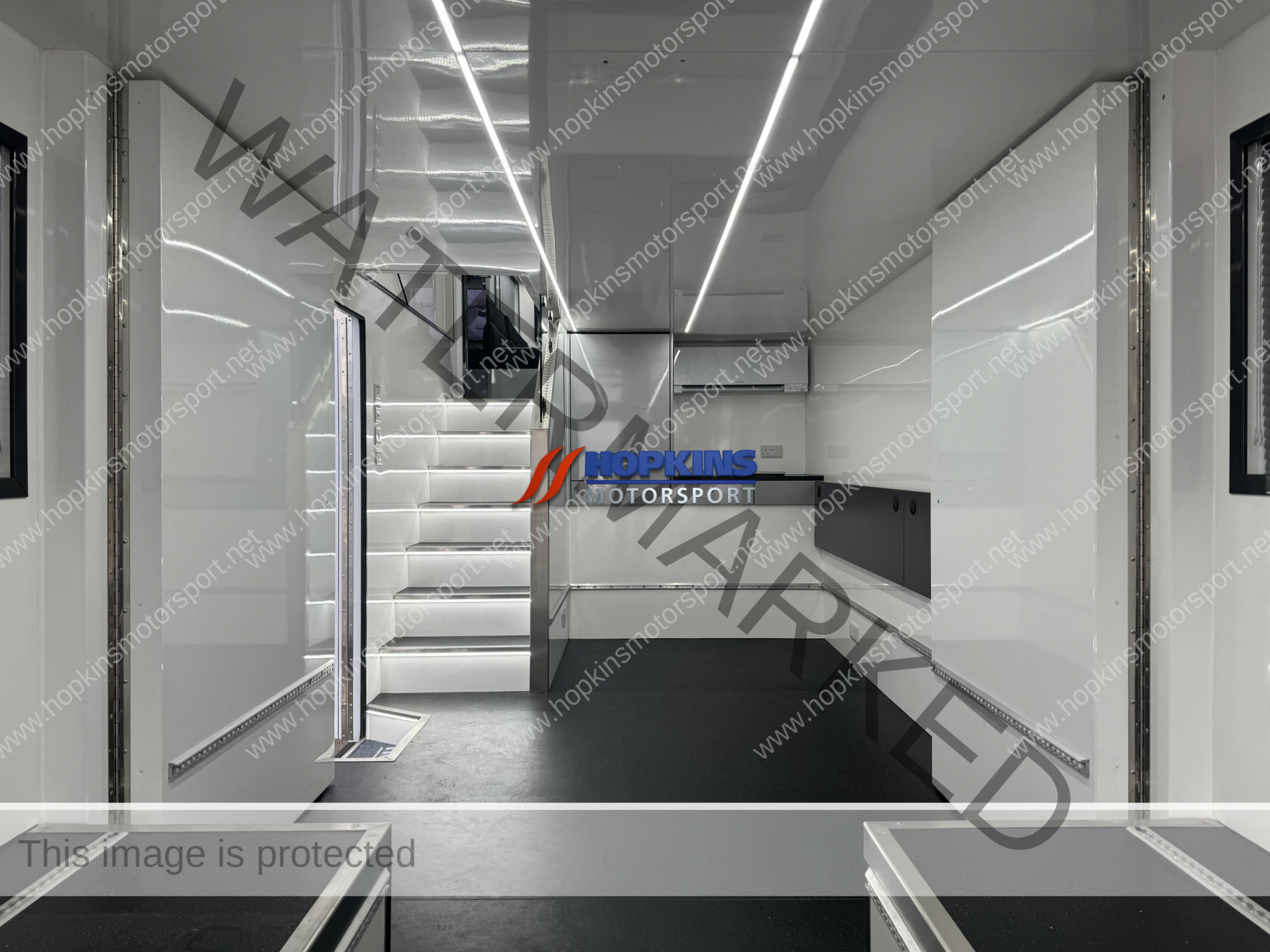

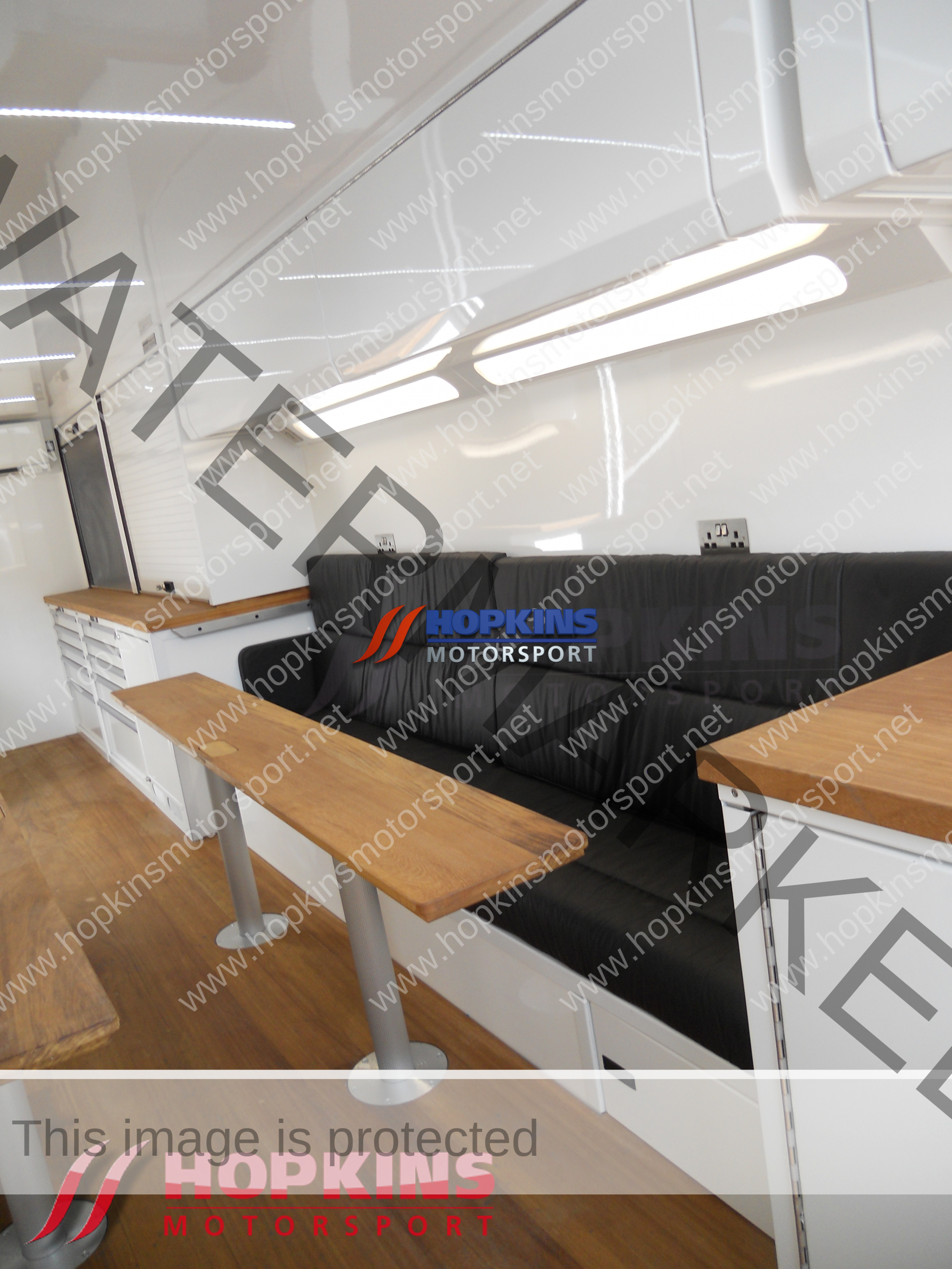

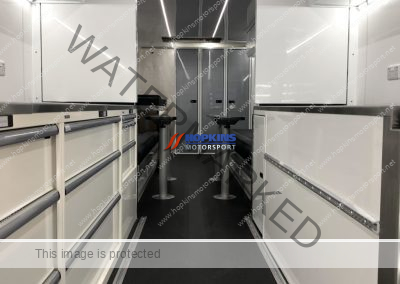

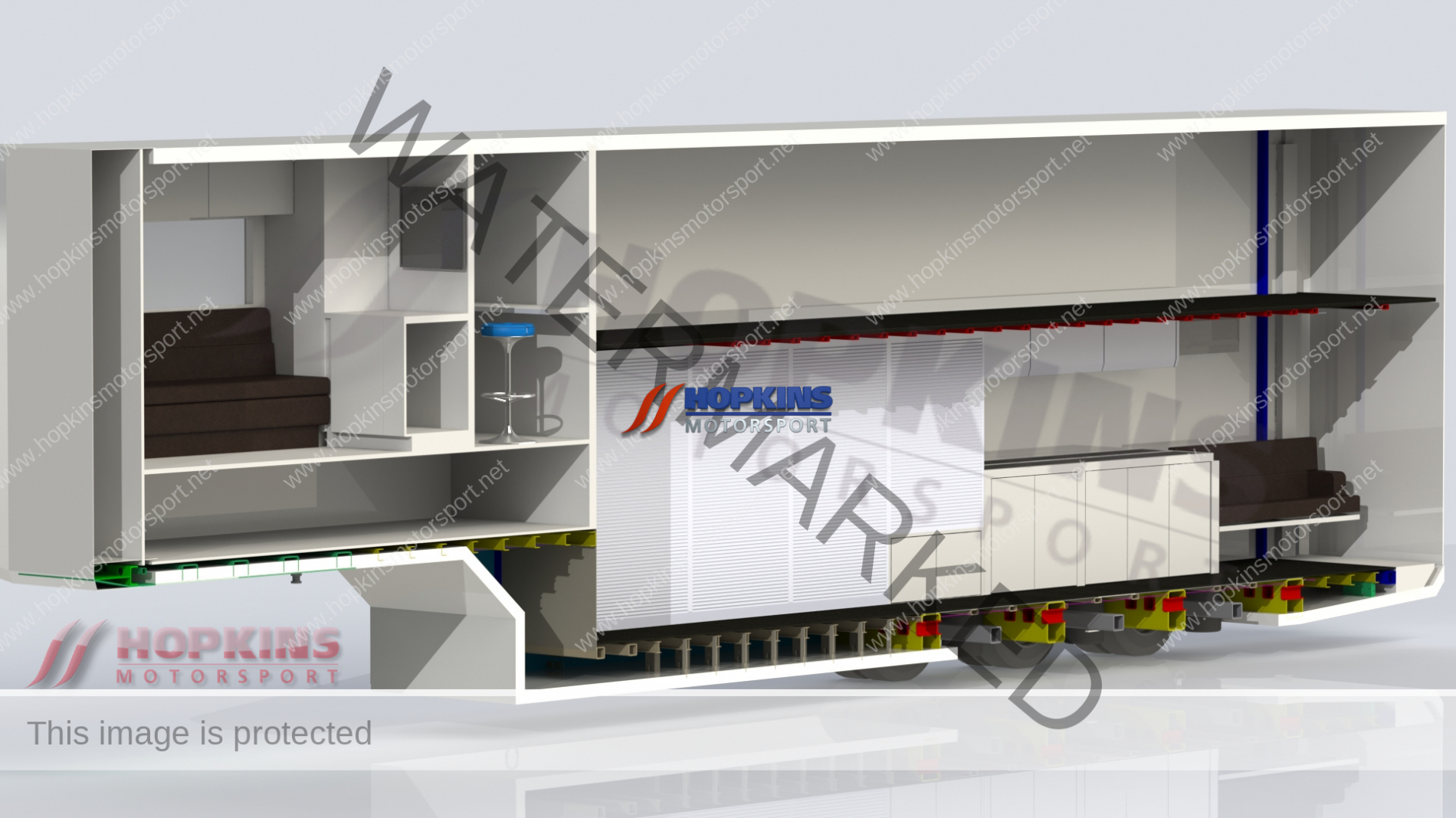

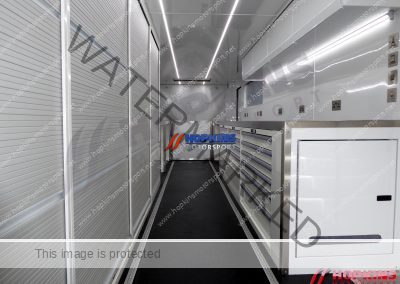

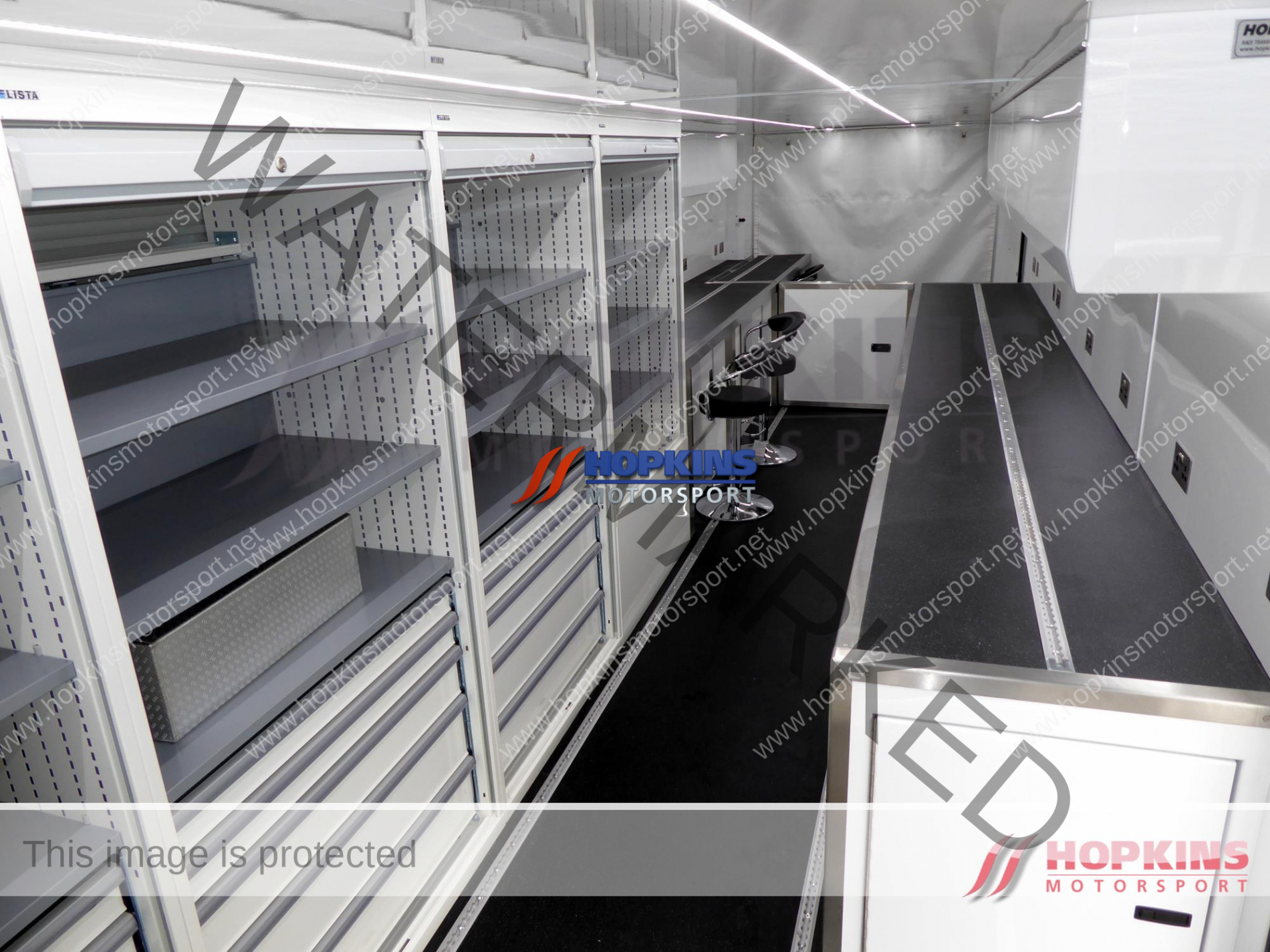

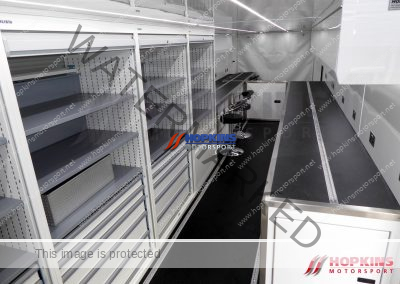

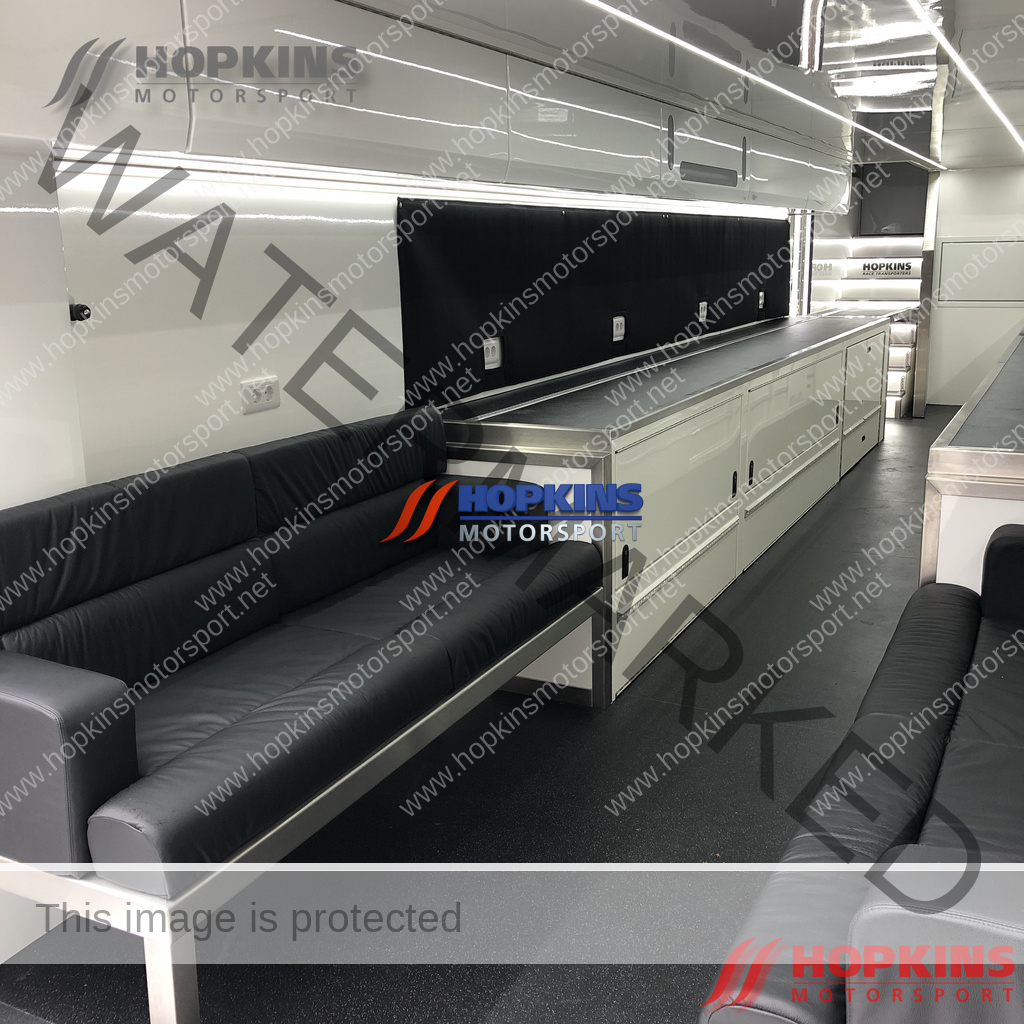

Overview:                  The workshop area is designed to carry two F3 cars with the front wings removed during transit.  On arrival at the circuit the rear area will form a storage area and workshop, the middle section will convert into a debrief/engineers area that will seat up to eight people, the front section will store gear ratios & bulk components in Lista cabinets as well as seating for an additional engineer.

Dimensions:                Carrying capacity 2 x Cars max height 1070 mm (overall length 7700mm)
Walls and ceiling:       Finished in high gloss white, 3x double power sockets per side.
Lighting:                     Full length corner lighting on both sides.
Air:                              Air outlets at both ends.
Floor:                          Finish in 3mm black circular stud matting.
Air-Con:                      Yes

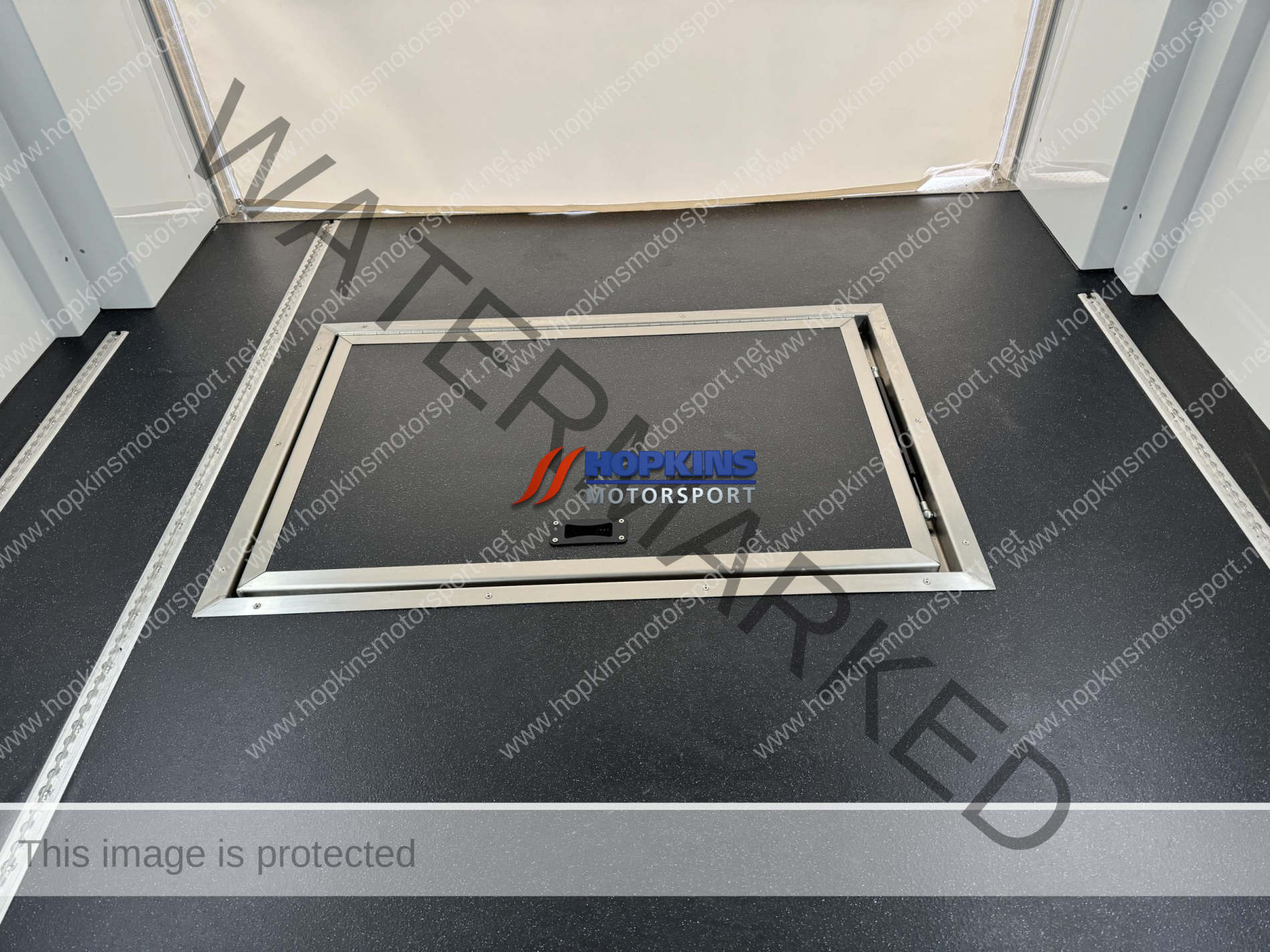

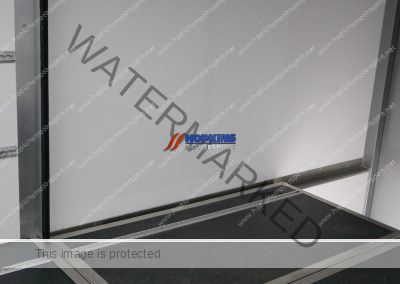

Access hatch:              Size approx 700mm x 800mm opening on a single gas Strut between lower deck and top deck.
Bench tops:     Material?? Rubber or wood

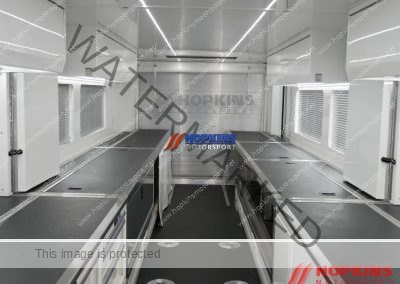

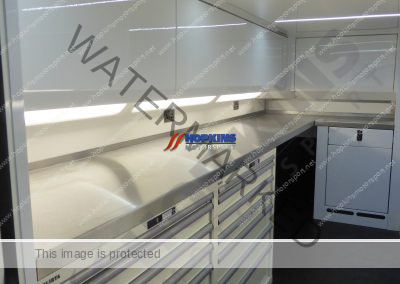

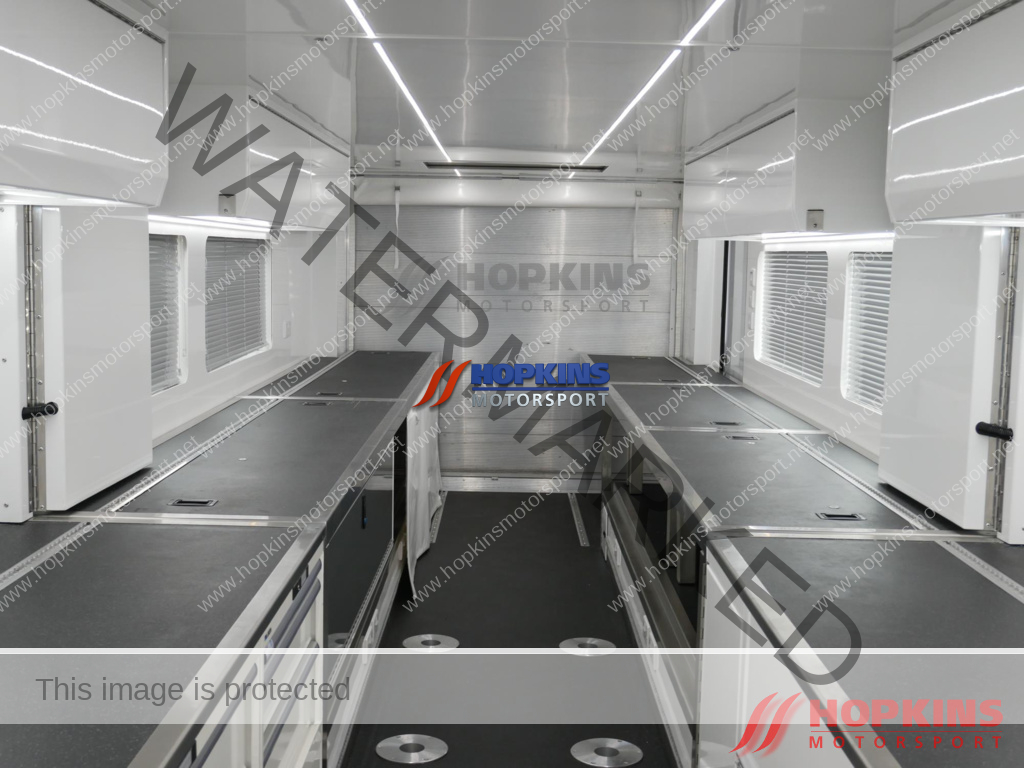

Off-side Rear

Fixed bench:               length approx 2000mm with doors below for engine storage.

Above fixed bench:    1 Roller shutter door length approx 1400mm, height approx 880mm, depth of storage 400mm approx. Overhead lockers are not fitted so that it is possible to travel the car front wing section above the car in this area

Wheel arch area:         Removable bench to form a seating area length 2800mm

Below the wheel arch:empty to maximise the width for desks Either the awning or storage boxes can travel in this area

Above the W/a area:   Standard HMS overhead units,  length 2800mm, depth approx 400mm height approx 350mm

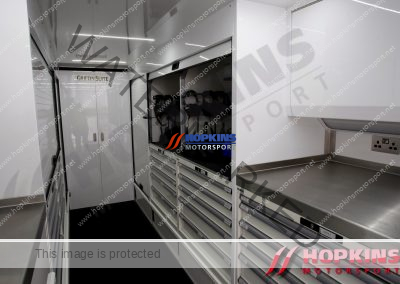

Front section:              2x Lista cabinets:        Length 1023mm  x 860mm high with 5 x draws of full extension.

Fridge:                        1 integrated 600mm fridge.

Above  lista cabinets:2 Roller shutter door length approx 1300mm each, height approx 880mm, depth of storage 400mm

Near side rear

Fixed bench:               length approx 2000mm

Above fixed bench:    Overhead lockers are not fitted so that it is possible to travel the car front wing section above the car in this area

Wheel arch area:         Removable bench to form a seating area length 2800mm

Below the wheel arch:empty to maximise the width for desks

Above the W/a area:   Standard HMS overhead units,  length 2800mm, depth approx 400mm height approx 350mm

Front section:

Side personnel door:   With removable infill.

1 x Removable lista to travel in this space length 1023mm height 850mm ( giving 650mm of draw space)

Fixed bench:               length approx 1300mm with Pvc sheet below to allow engineers to sit in this area if required

2 x Removable lista to travel in this space length 718mm each height 850mm ( giving 650mm of draw space)

Above  Fixed bench:   Standard HMS overhead units,  length 1300mm, depth approx 400mm height approx 350mm

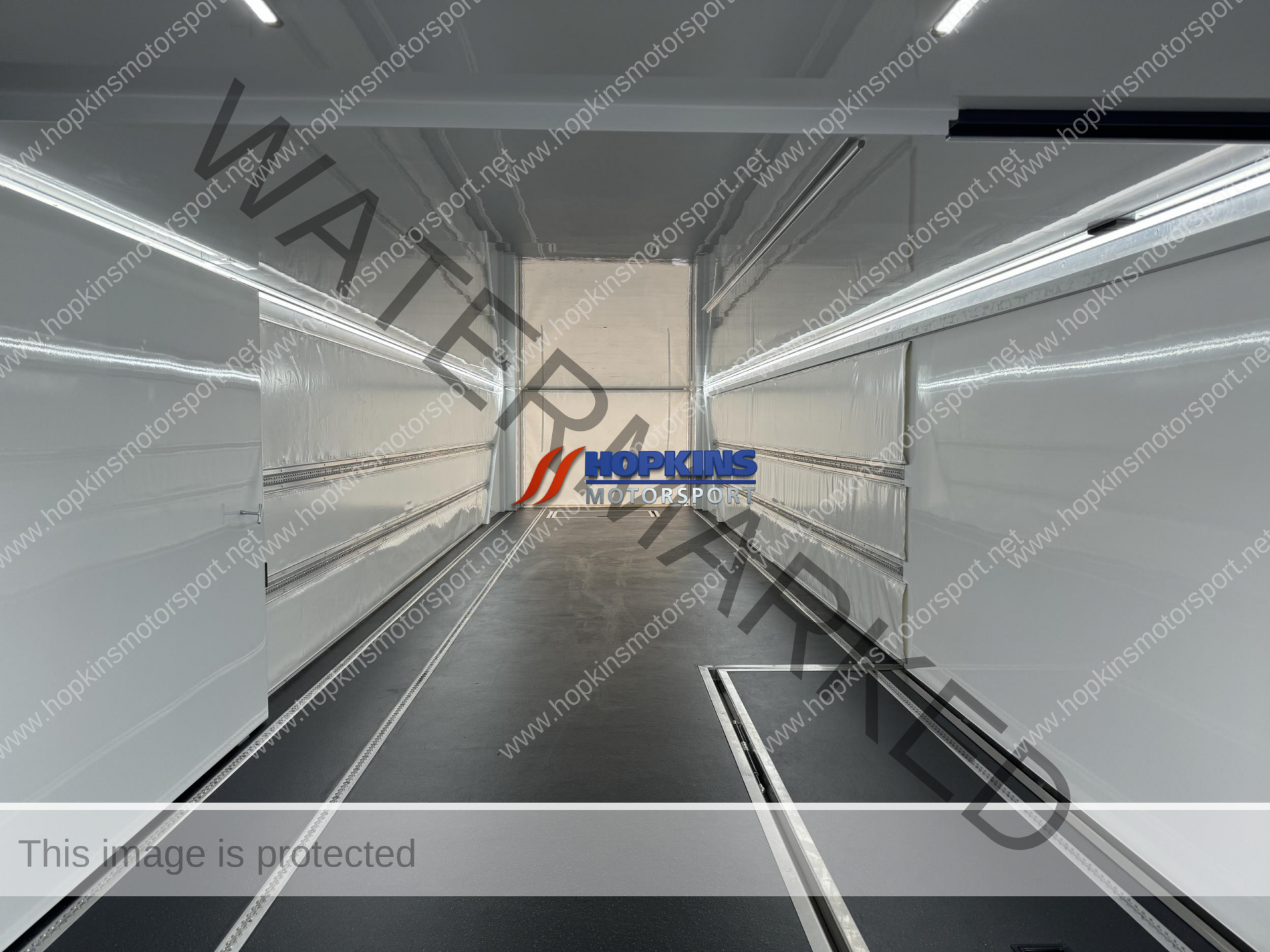

Walls and the ceiling:High gloss white.

Protection:                  1 x full length of anti rub rail on each wall.

Floor tracking:            3x lengths of tracking recessed into to the floor.

Floor Finish:               black flec non slip rubber

Lighting:                     LED Lighting Recessed into the ceiling  length 1m at approx 1200mm centres
